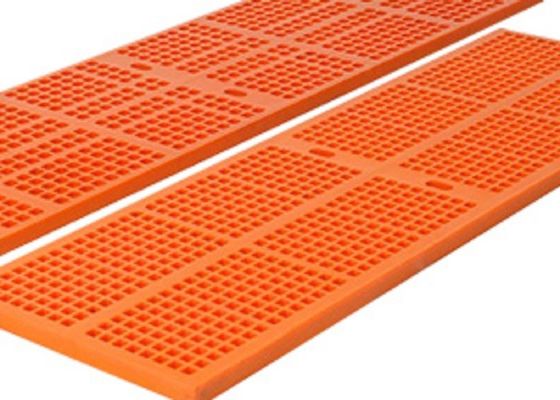

Modular Polyurethane Dewatering Screen 305x305mm with High Screening Efficiency and Linear Type Design

Large Image : Modular Polyurethane Dewatering Screen 305x305mm with High Screening Efficiency and Linear Type Design

Product Details:

Place of Origin:	China
Brand Name:	HUATAO
Model Number:	HT-013

Payment & Shipping Terms:

Minimum Order Quantity:	10 pieces
Price:	USD 35-45 per piece
Packaging Details:	air bubble film + wooden box
Delivery Time:	7 - 10 working days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	10000 pieces per month

Contact Now

Detailed Product Description

Material:

Polyurethane

Highlight:

305x305mm Polyurethane Screens

305x305 Polyurethane Screens

dehydration polyurethane screens

Modular Industrial Dehydration Polyurethane Screens 305x305mm

Polyurethane screens modular industrial screens designed for superior performance in demanding applications.

Polyurethane Screen Mesh

Polyurethane Screen Mesh is a modern development for mining mineral processing, grading, dehydration, and other screening applications. This innovative product effectively replaces traditional metal sieve mesh and is essential for shaker sieve structures. Available in four connection types: mosaic bolt join, layering connection, screen hook connection.

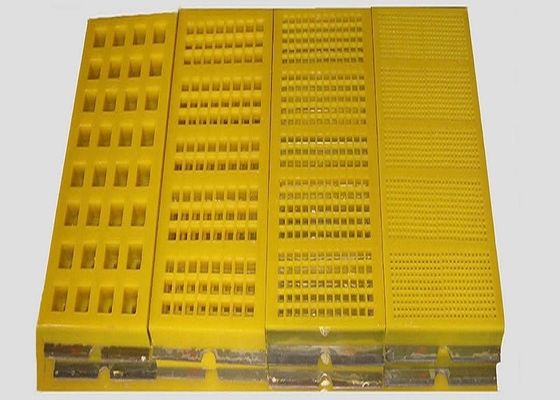

Polyurethane Screen Models

XINGHUO polyurethane screens include:

Dewatering Screen
Tension Screen
Modular Screen Panels
Flip-Flop Screen Panels
Punched Plate Screen Deck
Comb Sieve Plate

XINGHUO is a professional polyurethane screen panels manufacturer in China, offering various types of polyurethane sieve plates with the highest quality standards.

Standard Aperture Specifications

Size of aperture W (mm)	Overall height BH (mm)	Height of screening area SF (mm)	Effective open screening area %
3	30	7	20.3%
3.15	30	10	14.6
4	30	10	16.8
5	30	10	26.3
6.3	30	13	26.7
7	30	11	27.7
8	30	10	29
9	30	18	24
10	30	12	29
11	30	16	27
12	30	17	33
13	30	17	28
14	30	19	25
15	30	19	26
16	30	17	27
18	30	20	34
18	40	24	24
19	30	19	37
20	30	20	30
22	30	20	36
24	30	20	32
25	30	22	26
27	30	21	35
30	30	19	27
32	40	30	27
34	40	30	25
35	40	30	22
36	40	40	24
38	30	20	30
40	40	31	29
42	40	31	33
45	35	30	37
50	50	30	30
55	40	40	34
60	40	40	35
63	40	40	30
65	40	40	25
65	50	50	27
67	38	38	35
70	40	40	29
80	40	40	34

Key Features

High screening efficiency
Wide application range with professional design
High screening precision
Low noise operation
Significant economic benefits

Packaging

Water-proof paper, plastic film, or wooden bag packaging available according to customer requirements.

Applications

The polyurethane fine screen mesh with extremely fine openings is ideal for fine particle separations. Suitable for a wide range of wet and dry applications in various industrial settings.
