Product Details:
Payment & Shipping Terms:
|
| Strapping Tightness: | 0-45Kg | Adhesion Method: | Hot Fusion |
|---|---|---|---|
| Roller Material: | Stainless Steel | Roller Diameter: | 50mm |
| Convey Speed: | 0-50m/min | Machine Warranty: | 1 Year |
| High Light: | 1700mm Belt Strapping Machine,50m/min Belt Strapping Machine,45Kg strapping belt machine |
||
1700mm Automatic single double hot melt pp belt strapping machine for packaging carton
1. 1700mm Automatic single double hot melt pp belt strapping machine for packaging carton Description
PP strapping machine production line. Total power ( Including Steering machine, Box Closer, Pressurized )
Box Steering Unit(L2850 W2550 H1460)；
Box Closer Unit (L2520 W2550 H1360)；
Packaging Pressurized Unit (L2080 W670 H2400)；
* Total Power: 5KW；
* Power:Three-phase five-wire AC 380 V (1+10%)50Hz
* Working Ability:9-15pcs/min；* Working Environment : Relative humidity less than or equal to 90%,temperature 0-40 degrees Celsius,noise less than or equal to 75 dB(A)
* Band Width : 9mm* Spec of Tape Disc: Core Diameter of ring paper: 200mm-210mm; outer diameter of belt ring: 400-450mm; ring width 175-190mm.
* Adhesion Method: Fusion.
* Bonding mode :Bottom bonding the area ≥ 90%,the deviation ≦2mm
* Strapping tightness:0-45Kg；
* Gas Pressure:0.5-0.8MPa；
* Roller Material:Stainless Steel ；Diameter:50mm; frame thickness:1.2-1.5mm；
* Conveying Speed :0-50m/min；
3. 1700mm Automatic single double hot melt pp belt strapping machine for packaging carton Advantages
1. Can be fully automatic packing carton.
2. Save labor cost and increase work efficiency.
3. Easy to operate and easy to use.

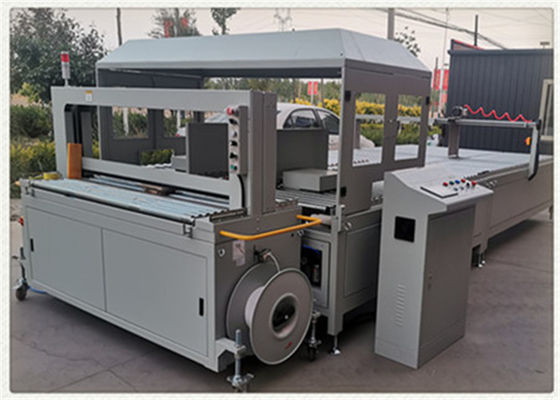

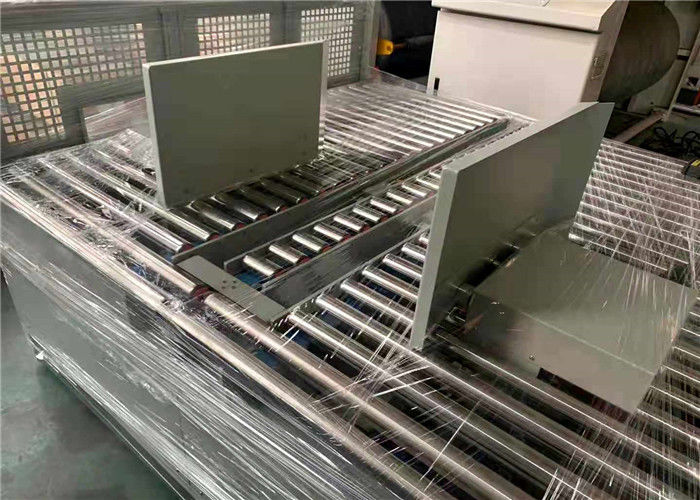

4. 1250×1150mm Automatic Single Double Hot Melt PP Belt Baler Pictures
5. 1700mm Automatic single double hot melt pp belt strapping machine for packaging carton Brand Name
| Name | Brand |
| PLC | Siemens/Omron |
| Contactor | Siemens |
| Thermal relay | Siemens |
| Breaker | Siemens |
| Invertor | Schneider /Delta |
| Buttons | Schneider |
| Indicator light | Schneider |
| Relay | Omron |
| Power Box | Taiwan |
| Touch screen | Taiwan |
| Motor | Taiwan |
| Cylinder | Taiwan |
