PU Lock Bay System And Knuckle System Anvil Covers

PU Lock Bay System And Knuckle System Anvil Covers
PU Lock Bay System And Knuckle System Anvil Covers PU Lock Bay System And Knuckle System Anvil Covers PU Lock Bay System And Knuckle System Anvil Covers

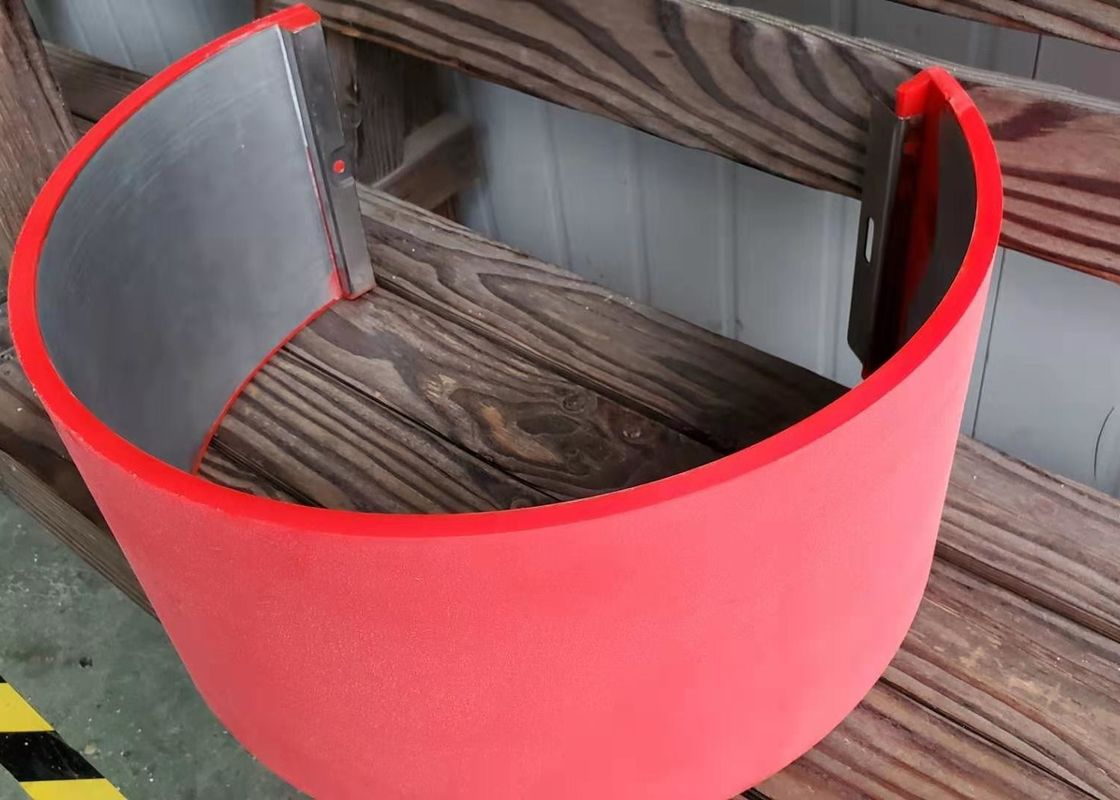

Large Image :  PU Lock Bay System And Knuckle System Anvil Covers

Product Details:
Place of Origin: China
Brand Name: HUATAO
Certification: ISO9000
Model Number: HT-Anvil Cover
Payment & Shipping Terms:
Minimum Order Quantity: 10piece
Price: 50-200usd/pcs
Packaging Details: carton box
Delivery Time: 8days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 50pieces per day
Detailed Product Description
Name: Anvil Cover Material: PU Polyurethane
Usage: Used As Pad For Rotary Die Cutting Function: Help Box Maker Maximize Their Machine Time
Width(mm): 500 Thickness(mm): 10
High Light:

knuckle system anvil covers


lock bay system anvil covers


PU Anvil Covers

The lock-bay system and knuckle system anvil cover
Maximum of Duration
The unique proprietary urethane formulation can stand the harshest die cutting applications and extend the life of die cutting anvil cover to the maximum of rotation time.

Lock-Bar System & Knuckle System The lock-bay system and knuckle system make easy installation and less die cutter downtime.

Well Mould Quality
Our well molded products can provide a smooth surface during the rotation. The solid steel backing can eliminate the soft spot over the keyway of cutting around the entire circumference of the cylinder.
Dual-Width Design Available We produce Dual-Width design products that can reduce seams across the cylinder and reduce installation time.
Manufactured to OEM Request
Produced to exactly original equipment manufacturer request to guaranteeing precise fit and performance.3-Production introuduce

* Adopt imported raw material,longer service life of the cutting pads.

* Enable bidirectional installation,longer service life of the die cutting.

* Have complete specification and can be customlized according to customer's requirements.

* Improve the die cutting precision and indentation.

* Roller ioint more tight.

* Prefession training and technical support.

* Rich inventory,timely delivery.


1. Raw material is imported from Spain with the original pack. The thickness is thickened. High quality polyurethane material ensures the anvil cover able to stand strong pressure and shock. Our anvil cover is with the super abrasion resistance and long time service time.

2. Our anvil cover is adopted the lock interface. It is easy for installing, transportation, and disassemble. There is no worry of deformation of the interface. Simple and high efficiency is our product feature.

3. Wide range of diameters mold ok from 100-750mm. The width available from 100-500. Service website is available in South East, South, Weest, North and Middle of China.

4. Mesh fiberglass and anvil cover connected closely to ensure the cover not to deform. And also to avoid to hurt the workers. No screws required. It is time save and also no high requirement for the width.


5.Installation steps

1. It can be disassembled from either side of the cylinder; It can be disassembled in order or contrary to the order of installation; Must be removed from the upper slot.

2. Exchange steps: two kinds of replacement:

Timely replacement reduce maintenance cost; The service life of more than 200 million times.

Maintain the flatness of the anvil cover, minimize the formation of the sponge layer and die-cutting pressure control.

PU Lock Bay System And Knuckle System Anvil Covers 0

-Material: PU

-Original Place: Taiwan & Shanghai & Italy & USA

-Parameter form

Item Roller diameter(mm) Width(mm) Thickness(mm)
1 265 250 9
2 268 250 10
3 281 250 8
4 296 250 9
5 332 250 9
6 341 250 8
7 378 250 10
8 381 250/408/500 10
9 389 250/492/500 10
10 406 250 10
11 434 250 10
12 441 250 10
13 468 250 8
14 516.38 250
