| Material: | Polyurethane | Size: | 610mm*610mm /305mm*305mm |
|---|---|---|---|
| Type: | LINEAR | Feature: | High Screening Efficiency |
| Usage: | Separation Screening | Function: | Screening\separation\sorting\sieving |
| High Light: | dewatering pu screen mesh,pu screen mesh for coal,305x305mm pu screen mesh |
||
Dewatering Polyurethane PU Screen Shaken Mesh Panel For Coal
Polyurethane Tension Screen Mesh
Polyurethane tension screen panel is a good choice for many vibrating machines,applied to DCV circular vibration sieve,SZD round, BY vibrating screen, etc.
Specifications
· Material: polyurethane material and steel frame.
· Thickness: 25mm - 60mm.
· Hole type: square, rectangular, round and other types are available.
· Hole size: 2.5mm - 130mm.
· Panel width: max. 1.5m.
· Panel length: max. 3m.
· Hook type: metal or polyurethane.
· Hook direction: transverse or longitudinal.
· Color: red, yellow, blue and any other colors you want.
| aperture | screening thickness | total thickness tension | total thickness modular | aperture | screening thickness | total thickness tension | total thickness modular |
| 2.50 | 7 | 25 | 30 | 0.20x11 | 8 | 30 | 30 |
| 2.80 | 7 | 25 | 30 | 0.3x16 | 7 | 30 | 30 |
| 3.20 | 7 | 25 | 30 | 0.4x11 | 8 | 30 | 30 |
| 4.00 | 7 | 25 | 30 | 0.5x16 | 7 | 30 | 30 |
| 4.50 | 8 | 25 | 30 | 0.6x11 | 8 | 30 | 30 |
| 5.00 | 9 | 25 | 30 | 0.5x16 | 7 | 30 | 30 |
| 5.50 | 8 | 25 | 30 | 1.0x11 | 8 | 25 | 30 |
| 6.20 | 9 | 25 | 30 | 1.2x11 | 8 | 25 | 30 |
| 6.50 | 9 | 25 | 30 | 1.5x11 | 8 | 25 | 30 |
| 7.30 | 9 | 25 | 30 | 1.5x20 | 8 | 25 | 30 |
| 7.50 | 9 | 25 | 30 | 1.5x25 | 8 | 25 | 30 |
| 8.00 | 9 | 25 | 30 | 2.0x20 | 8 | 25 | 30 |
| 9.50 | 10 | 25 | 30 | 2.5x20 | 8 | 25 | 30 |
| 10.00 | 11 | 25 | 30 | 3.0x20 | 8 | 25 | 30 |
| 11.50 | 12 | 25 | 30 | 4.0x20 | 12 | 25 | 30 |
| 12.50 | 13 | 25 | 30 | 4.5x20 | 8 | 25 | 30 |
| 13.00 | 13 | 25 | 30 | 5.0x20 | 8 | 25 | 30 |
| 14.00 | 13 | 25 | 30 | 6.0x20 | 12 | 25 | 30 |
| 15.00 | 13 | 25 | 30 | 8.0x20 | 12 | 25 | 30 |
Features
· Embedded steel frame for high tensile strength.
· Metallic hooks for easy replacement.
· Wear resistance.
· Age resistance and long service life.
· High efficiency.
· Various openings for accurate separating.
· Lightweight and easy to install and replace.
· Low noise.
Applications

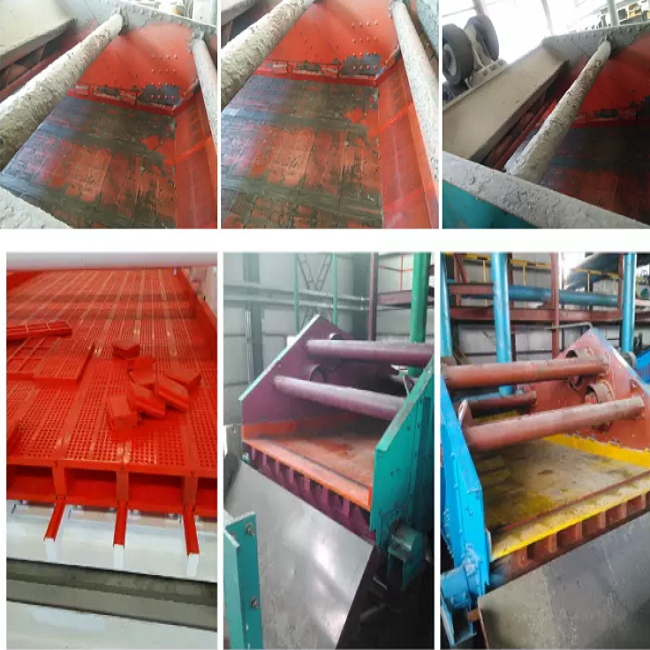

· Tensioned polyurethane screen is fitted to all vibrating screens.
· Tensioned polyurethane screen can separate and screen almost all of materials from coarse stones to fine materials.
· Tensioned polyurethane screen is ideal for both dry and wet materials.
Advantages of mining screen
1.High screening Efficiency---2-5 times of the ordinary screen
2.Large bearing capacity---2.5 times more than rubber sieve
3.Long service life--- Can be used for six months to more than one year
4.good abration and corrosion resistance--- condition of using water or oil as the medium.
5.maintanance and replacement is low--- Hole can't be plugged& washing-free
6.Low noise---it has well vibration-absorbing performance
7. rational design of the screen hole---limit size of the particleswill not block mesh.
8.widely used---mining, metallurgy, coal, coking, chemical and other industries.
9. Good wet resistant performance---work on the water condition
