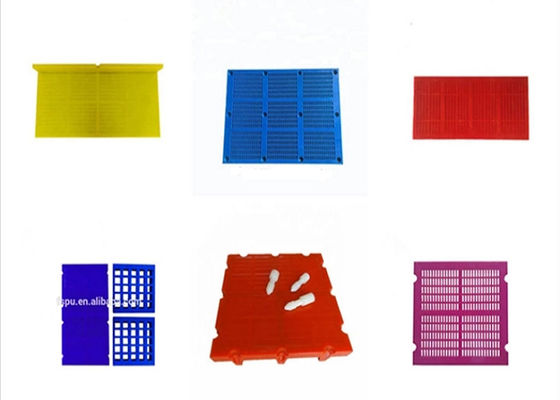

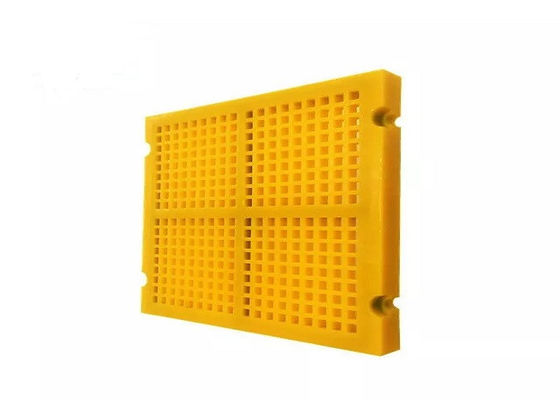

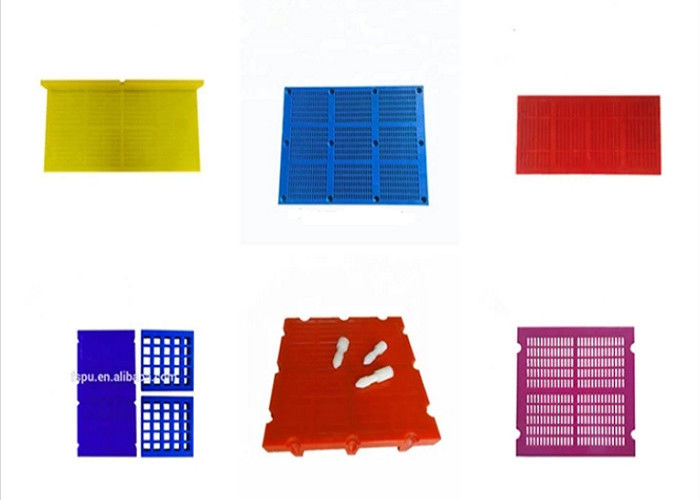

610x610mm Customizable Polyurethane Screen Mesh for High Efficiency Dewatering and Vibrating Screening

Large Image : 610x610mm Customizable Polyurethane Screen Mesh for High Efficiency Dewatering and Vibrating Screening

Product Details:

Place of Origin:	China
Brand Name:	HUATAO
Model Number:	HT-013

Payment & Shipping Terms:

Minimum Order Quantity:	10 pieces
Price:	USD 35-45 per piece
Packaging Details:	air bubble film + wooden box
Delivery Time:	7 - 10 working days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	10000 pieces per month

Contact Now

Detailed Product Description

Material:

Polyurethane

Highlight:

polyurethane vibrating screen mesh

610x610 vibrating screen mesh

dewatering vibrating screen mesh

610x610 Mould Polyurethane Dewatering Vibrating Screen Mesh

Product Overview

Polyurethane screen sieve is fabricated by advanced polyurethane materials with embedded metal framework structure, which combines all the characteristics of rubber sieve, but also have superior wear resistance, higher screening accuracy, and better tear resistance.

Specifications

Material: Polyurethane material and steel frame
Cut point: 0.5mm
Thickness: 25mm - 60mm
Hole type: Square, rectangular, round and other types available
Hole size: 2.5mm - 140mm
Panel width: Customized
Panel length: Customized
Hook type: Metal or polyurethane
Hook direction: Transverse or longitudinal
Color: Red, yellow, and other custom colors

Technical Data

Parameter	Value
Origin Place	Yantai China (Mainland)
Brand Name	FUSHUN
Material	Polyurethane
Color	Optional
Elastic Resilience	34%
Abrasion Loss	0.019cm³/1.61km
Elongation	445-557%
Tensile Strength	30-53MPa
Tear Strength	70KN/m
Compressive Strength	6-10.5Mpa
Hardness	Shore60-98A
Temperature Range	-40° to 60°

Key Features

Polyurethane materials for superior wear resistance

Self-cleaning apertures reducing pegging and blinding

Wide range of apertures to suit most applications

Various panel sizes to fit all vibrating screens

Different connection types for easy installation and replacement

High screening performance with low noise operation

Long service life and exceptional durability

Applications

Steel plants
Mining industry
Cement plants
Mineral beneficiation industry
Power plants
Coal washing
Sand, gravel separating and screening

Shipping & Payment

Shipping: Samples shipped by air express, large orders by sea.

Payment Terms:

100% irrevocable L/C at sight
30% T/T prepaid and balance against copy of B/L
30% T/T prepaid and balance against L/C

Samples: Available upon payment of sample price and freight fee. Sample fee returned after order placement. Delivery time approximately 30 days.
