305x305mm Polyurethane Screen Mesh For Dewatering

305x305mm Polyurethane Screen Mesh For Dewatering
305x305mm Polyurethane Screen Mesh For Dewatering

Large Image :  305x305mm Polyurethane Screen Mesh For Dewatering

Product Details:
Place of Origin: China
Brand Name: HUATAO
Model Number: HT-013
Payment & Shipping Terms:
Minimum Order Quantity: 10 pieces
Price: USD 35-45 per piece
Packaging Details: air bubble film + wooden box
Delivery Time: 7 - 10 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000 pieces per month
Detailed Product Description
Material: Polyurethane Size: 610mm*610mm /305mm*305mm
Type: LINEAR Feature: High Screening Efficiency
Usage: Separation Screening Function: Screening\separation\sorting\sieving
Voltage: 220V / 380V / 415V / 450V Warranty: More Than 5 Years, 12 Months
Open Area Rate: 28-40% Color: Red,yellow,green
High Light:

polyurethane screen mesh for dewatering

,

dewatering polyurethane screen mesh

,

305x305mm polyurethane screen mesh

305x305mm Dewatering Pu Sieve Mesh Screen Panel





PU Polyurethane screen vibrating screen mesh


Polyurethane vibrating screen is made of polyurethane materials. It mainly used for miningmineral processing, grading, dehydration and other screening machines replace metal sieve (mesh) of a new product. Mainly used in coal, iron ore, copper, gold and other ores grading, screening, dewatering and other places. It can separate and screen almost all of materials from coarse stones to fine materials and ideal for both dry and wet materials.



Mesh Size

(mm)

Standard Type Effective Type Long Service Type

Diagrid

(mm)

Aperture Ratio %

Diagrid

(mm)

Aperture Ratio %

Diagrid

(mm)

Aperture Ratio %
8 4 14 3 53 6 33
10 4 51 3 59 6 39
12 6 44 4 56 8 36
14 6 49 4 60 8 40
16 6 53 4 64 8 44
18 7 52 6 56 10 41
20 7 55 6 59 10 44
22 8 54 6 62 10 47
24 10 50 8 56 12 44
27 12 48 10 53 12 48
30 12 51 10 56 12 51



Specifications
· Material: polyurethane material and steel frame.
· Thickness: 25mm - 60mm.
· Hole type: square, rectangular, round and other types are available.
· Hole size: 2.5mm - 130mm.
· Panel width: max. 1.5m.
· Panel length: max. 3m.
· Hook type: metal or polyurethane.
· Hook direction: transverse or longitudinal.
· Color: red, yellow, blue and any other colors you want.



Technical date



Origin place Yantai China (Mainland) Brand Name FUSHUN Material Polyurethane
Color Optional Elastic Resilience 34% Abrasion Loss 0.019cm3/1.61km
Elongation 445-557% Tensile Strength 30-53MPa Tear strength 70KN/m
Compressive strength 6-10.5Mpa Hardness Shore60-98A Temperature -40°~

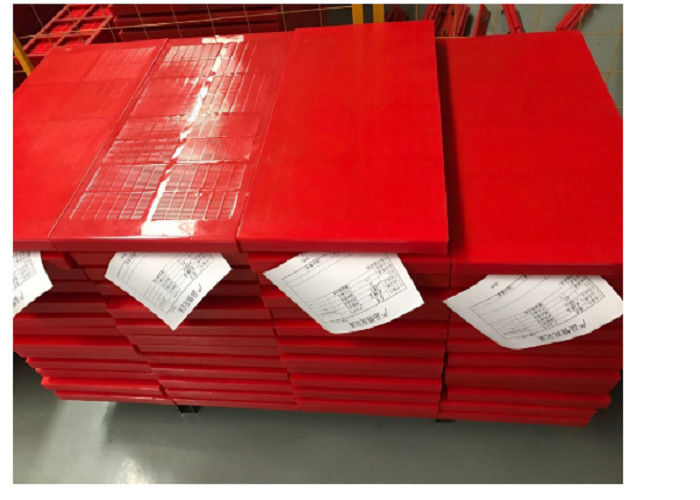

305x305mm Polyurethane Screen Mesh For Dewatering 0



The features of our polyurethane screen mesh

1. Long service time. Its service life is more than 8 times longer than the ordinary metal products and 3.9 times longer than the rubber products.
2. Large bear capacity. With good resilence, high strength to absorb the impact, high wear resistance, high tensile strength,so its capacity is more than 2.5 times stronger than the rubber and stainless products.
3. High sieving efficiency. On the base of meeting the size distribution, the mesh slot is made into the shape of rectangle. Which gurantees the ratio of qualified fine material and improves the screening effciency.
4. No blocking by the hole.With the resilience nature, the aperture is prevented from blockage.
5. Low niose. Polyurethane sieve machine can reduce noise 5-20 decibels than metal mesh.
6. Low maintenance cost.Easy to installation, simple to replace, long service time ensure the low maintenance cost.
7. Large amount of ore sieving. Polyurethane screen mesh can sieving more than 200000 tons ores.


Application:

Polyurethane Flip Flop Screen Mats offered make use of quality elastomers that guarantees highest performance support as demanded by the customers. Being used for applications involving screening moist or humid materials, these are also suitable for screening of products material like wood chips, building rubble, plastic and others and can also be custom developed as specified by the customers. These are suitable for screening of moist or humid materials like Iron ore at 6mm with 15% moisture, Raw sand at 3mm with 6% moisture, Compost at 10mm with 50% moisture, Slag at 3mm with 10% moisture and others.



Advantages of mining screen:
1.High screening Efficiency---2-5 times of the ordinary screen
2.Large bearing capacity---2.5 times more than rubber sieve
3.Long service life--- Can be used for six months to more than one year
4.good abration and corrosion resistance--- condition of using water or oil as the medium.
5.maintanance and replacement is low--- Hole can't be plugged& washing-free
6.Low noise---it has well vibration-absorbing performance
7. rational design of the screen hole---limit size of the particleswill not block mesh.
8.widely used---mining, metallurgy, coal, coking, chemical and other industries.
9. Good wet resistant performance---work on the water condition



Shipping:
sample is by air Express, and large order is by sea.

Payment terms:

payment term:

1).100% irrevocable L/C at sight.

2).30% T/T prepaid and the balance against the copy of B/L.
3).30% T/T prepaid and the balance against L/C

Samples:
samples are available but you need pay for the sample price and freight fee.
the sample fee is returned after you place an order.
The delivert time is about 30days.
