200mm Kevlar Edge Top Corrugator Belt For Cardboard Machine

200mm Kevlar Edge Top Corrugator Belt For Cardboard Machine
200mm Kevlar Edge Top Corrugator Belt For Cardboard Machine 200mm Kevlar Edge Top Corrugator Belt For Cardboard Machine 200mm Kevlar Edge Top Corrugator Belt For Cardboard Machine

Large Image :  200mm Kevlar Edge Top Corrugator Belt For Cardboard Machine

Product Details:
Place of Origin: CHINA
Brand Name: HUATAO
Certification: CE,ISO,ICE
Model Number: KE-200mm
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: reconsideration
Packaging Details: Wooden box
Delivery Time: 30-40days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1 Set/30days
Detailed Product Description
Material: Synthetic PET Fiber Type: Corrugator Belt
Heat Resistance: 220 Degree, The Kevlar Edge Upto 350 Degree Seam: Stainless Steel Fastener
Tensile Strength: Strong Application: Bhs, Tcy, Isowa, Mingwei Automatic Corrugator Line
Suitable Speed: 50m -300m/Min Air Permeability: Excellent
Moisture Absorption: Excellent
High Light:

200mm kevlar edge corrugator belt

,

corrugator belt for cardboard machine

,

cardboard machine corrugator belt

Top Corrugator Belt with 200mm Kevlar Edge for Cardboard Machine



Description:

Aramid Edge Corrugator Belt High Durability is a consistent development based on the proven woven high speed corrugator belt range .

Also is ideal for corrugating systems with high production speeds , even load systems and frequently changing paper widths .

We also supply : needle corrugator belt , woven corrugator belt ,single facer traction belt



Corrugator Belt -Features

1. Suitable as top belt with high speed (above 150m/min ) production

2. Heat and Super tear resistance

3. Inwoven Aramid edge to reinforce the belts , reduce wear substantially and ensure a longlife time .

4. Particularly for frequent changes of board width

5. More Popular in the all corrugators plant.


Corrugartor Belt Specification

Product Inwoven Aramid Edge Belt - kevlar edge
Thickness 9mm
Width range 1000mm - 3200mm
Length 80 meters
Heat-resistance 240ºC (the kevlar edge upto 350ºC)
Tensile strength 70Mpa
Coefficient of friction ≥ 0.40µ
Weight per unit (7.5±0.3)kg/m2
Air-permeability 40mm water Column 2.0m³/m2/min
Seam Hot JAW lacing/Clipper with rubber coated
Edge 100mm or 200mm inwoven aramid edge reinforcement (kevlar)
Suitable position Top belt
Used on all corrugators high tearing resistance
Long life time running High abrasion resistance
Moisture absorption Heat resistance Low noise


Corrugator Belt Seam

Model1: Fastener Clipper With Rubber

Model2: Hot JAW Lacing


Corrugator Belts Package

Type - I : Waterproof film+Dampblanket+Plasticbag+pallet

Type - II : Waterprooffilm+Dampblanket+Plasticbag+woodpackage+pallet

Note: The wooden box use non-fumigation wood box, it's convenient to customs clearance.Could save customers more time.

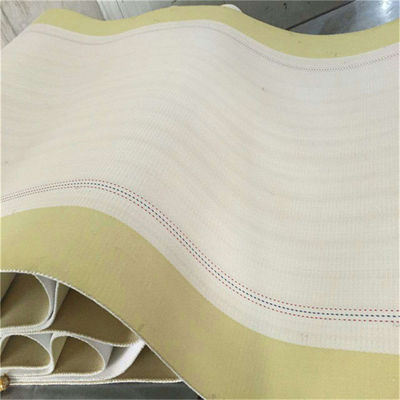

200mm Kevlar Edge Top Corrugator Belt For Cardboard Machine 0

Corrugator Belt Offer

1. Your corrugator brand & Running speed :

2. Top corrugator belt size :

3. Lower Corrugator belt size :


Advantages
High grade material
Safety packing to protect
High absorption of moisture
High durability
Maximum flexibility
Suitable for machine speed 50 - 300M/min
Goodrunningwith low noise
Tear strength
Less trimming
Long life time running

Customer feedback pictures

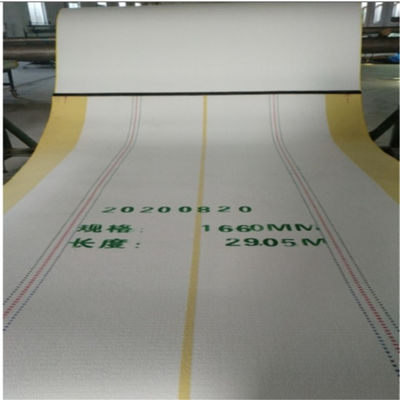

200mm Kevlar Edge Top Corrugator Belt For Cardboard Machine 1

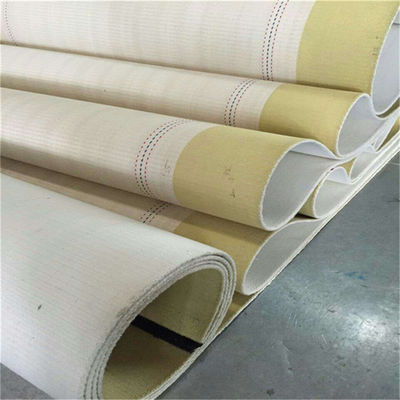

200mm Kevlar Edge Top Corrugator Belt For Cardboard Machine 2



Hot JAW lacingHot JAW lacing

200mm Kevlar Edge Top Corrugator Belt For Cardboard Machine 3



Company Introduction:



China Huatao Wire Belt Co. Ltd is specialized in developing and producing various kinds of industrial woven belts& Needle Belt, including corrugator belts for corrugated cardboard, airslide conveyor belts for bulk powder, coated belts for storage cells, as well as hoist and tractive belts etc.



About 400 employees, 66 senior engineers, engineers and professional technicians included, work with the most advanced and highly efficient machinery in a garden-like factory, which covers an area of 40,000 square meters, and create a production capacity of100,000 square meters a year.





All belts enjoys the honour of its products used in 85% of the Chinese corrugated cardboard manufacturers and exports in large quantity to nearly 40 countries all over the world because of the stable quality with an endurance of 14,000 working hours at least.
