Pan Cf Hard Composite Carbon Filber Felt Cylinder High Temperature Product

High-Temperature Product PAN-CF Hard Composite Carbon Filber Felt

Graphite hard felt carbon-carbon composite carbon fiber cloth paper veneer curing felt needled crucible bonded plate preform.

Graphite hard felt for heat preservation of pressure sintering furnace, long service life, easy to install and remove, with support, excellent heat preservation performance, good bending resistance.

Hard Composite Carbon Filber Felt Specification And Description

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

1. Material: PAN-CF
2. Volume Density(g/cm3): 0.25-0.30
3. Carbon Content(%): ≥99
4. Thermal Conductivity (W/m.k): 0.15-.025(250℃)0.4-0.45(1400℃)
5. Folding Strenth Mpa:1.8-3.5
6. Tensile Strenth Mpa:1.5-3.0
7. Crushing Stress At 5% Compression Mpa:0.8
8. Ash PPm:≤300
9. Operating Condition(In the air):≤350
10. Operating Condition(In the vacuum):≤2200

Hard Composite Carbon Filber Felt Direction For Use

It is mainly used in ultra-high temperature vacuum high-pressure sintering furnaces as well as
electronics, semiconductor industry, solar photovoltaic (polycrystalline casting furnace, single crystal furnace) and vacuum
industrial furnace equipment.

This product is made of imported oxidized filament graphite fiber as the base material. It has self-supporting, excellent thermal.

insulation performance, good compression and bending performance, good airflow resistance, good thermal vibration resistance, excellent thermal stability, high-temperature practical deformation, no fiber shedding characteristics. The company can provide plate, ring, cylinder and other shapes of products, long service life, easy to install, dismantle. Surface treatment: A no treatment B stick graphite paper C stick graphite cloth D surface coating can be customized length, width, thickness, raw materials

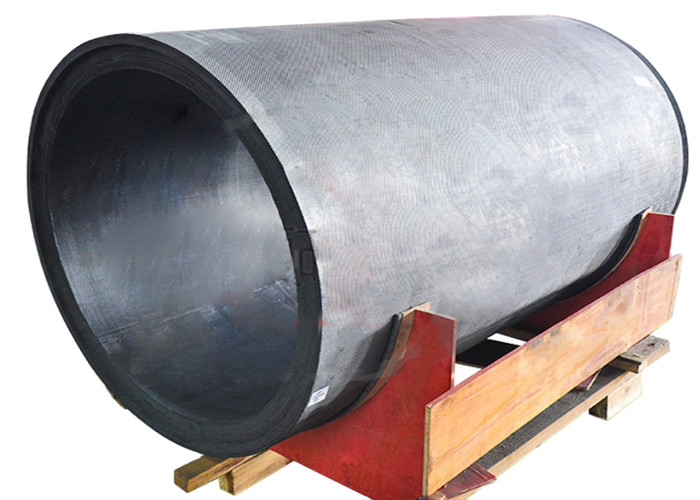

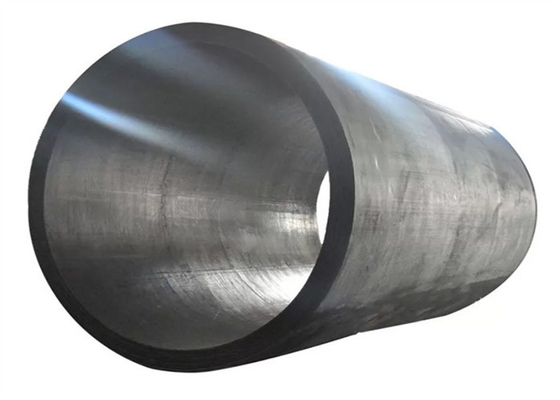

Hard Composite Carbon Filber Felt Detailed Images

We mainly produce high purity, high density and high strength products with the series of crucible/mold/boat,
bearings/bushing,electrode/rotor, rod/plate/ block/ball, paper/felt/rope. We can offer customized shape according to customer'sspecific demand.Materials include the extrude/molded/isostatic graphite of all grades

Hard Composite Carbon Filber Felt Packing & Shipping

Hard Composite Carbon Filber Felt Application Photos
