48crmo Alloy Steel Corrugated Roller Chrome Plating For Corrugator Lines

China HUATAO LOVER LTD certification
China HUATAO LOVER LTD certification
Huatao company is a very good company , I am very willing to cooperate with you, safe, efficient, professional, honest, happy! Thank you for providing me with stable service and products. -----EUROPAT

—— EUROPT INDUSTRIAL

I'm Online Chat Now

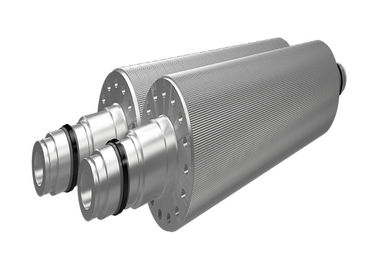

48crmo Alloy Steel Corrugated Roller Chrome Plating For Corrugator Lines

48crmo Alloy Steel Corrugated Roller Chrome Plating For Corrugator Lines
48crmo Alloy Steel Corrugated Roller Chrome Plating For Corrugator Lines
video play

Large Image :  48crmo Alloy Steel Corrugated Roller Chrome Plating For Corrugator Lines

Product Details:
Place of Origin: CHINA
Brand Name: HUATAO
Certification: ISO9001
Model Number: HT 1600-2800
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 3000/PC
Packaging Details: Standard export packing
Delivery Time: 30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 sets per year
Detailed Product Description
Brand: Huatao Product Name: Corrugating Roll
Origin: China Customize: Available
Material Capabilities: 48crmo Or 50crmo Alloy Steel Diameter: 100-600mm
Lentgh: 100-4000mm Flute Type: A.C.B.E.F.G As Customer Request
High Light:

chrome plating corrugated roller

,

48crmo corrugated roller

,

corrugator lines corrugating roll

48Crmo Alloy Steel Chrome Plating Corrugating Roller For All Brand Corrugator Lines



48CrMo Alloy Steel High Precision Corrugating Roll A B C flute For Corrugated Carton Machine

A,B,C flute High Precision Corrugated Roller For Corrugated Carton Making Machine Used for carton box corrugator machine.


The upper and lower corruagted( corrugating, flute) roller for single facer machine.



In the process of ironing and bending with high-speed and continuous feeding, the corrugating base paper continuously moves with the corrugating roller top under the action of online pressure and produces friction and extrusion. Due to the impact of inclusions and mineral hard particles in the base paper, the corrugating roller top is severely worn and gradually grinds from circular arc to irregular shape. Continuous high-speed operation can reduce the height of corrugating teeth Slowly lower, so that the production of paperboard gradually tend to the lower limit of the standard.



Corrugated Rollers Type

  1. ​Classification by tooth type: The common tooth types are a, AC, C, BC, B, be, E1, E2, F and G
  2. Classification according to tooth shape: Common shapes are U-shape, UV partial U-shape, UV partial V-line, V-shape
  3. Classification by surface hardness treatment: The common forms are surface medium frequency quenching, surface nitriding and surface laser
  4. classification by surface coating type: The common forms are chrome plated corrugated roller and tungsten carbide corrugated roller

Corrugating Roll Flute Type



Flute Type

Flute

Teeth/300mm Height of Flute
A UV 30±2 4.6-4.9
C UV 39±3 3.6-3.9
CB UV 44±2 3.0-3.4
B UV 50±2 2.6-2.9
BE UV 66±3 1.9-2.1
E UV 90±10 1.1-1.5
F UV 124±10 0.7-0.8
G UV 185±12 0.5-0.65
N UV 200±15 0.4-0.5
O UV 267 or design 0.25-0.35


Features

  1. Employing advanced heat treatment and plating technology, as well as high quality 48CrMo alloy steel forge piece,we can offer a wide range of rolls featuring high precision ,high hardness and long life.

  2. It adopts computer assistant design,and sets allitems parameters scientifically, soitinsures the quality specification economical,reliable and reasonablel

  3. It has big CNC corrugated roll precision grinding machine group,and they all work for corrugated roll.l

  4. Computer control to grind the concave rolll

  5. Select the good quality of 48CrMo, 50CrMo alloy steel forge pieceAdopt Germany advanced process to quenchin super ficialinter mediate frequency,hardened layer>7mm,hardness>HRC58-60(HS73-80),the hardness uniform with no soft zone.l

  6. We adopt the most advanced high-efficiency Atotech.Heef-25micro-cracks functional chrome plating technology and equipment,to be morerigid,smoother,more light,more wear-resistant surface hard chrome plating,electroplating longer life than ordinary more than 25 percent.

  7. We provide repair service for old corrugated roll at anytime

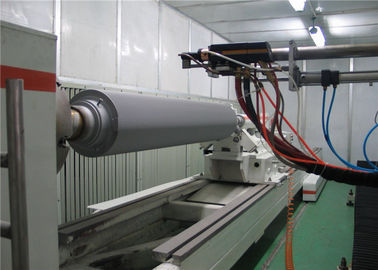

48crmo Alloy Steel Corrugated Roller Chrome Plating For Corrugator Lines 048crmo Alloy Steel Corrugated Roller Chrome Plating For Corrugator Lines 1
