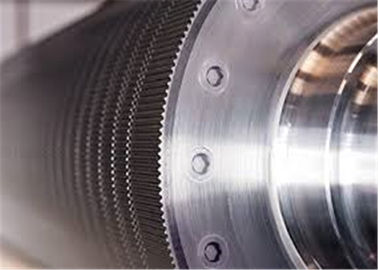

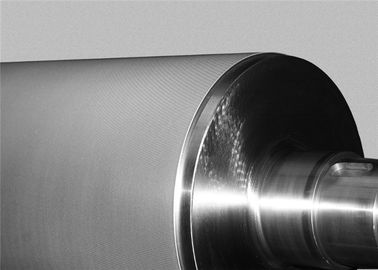

Corrugator Machine Pressure Corrugating Roll Steel C Flute For Single Facer

China HUATAO LOVER LTD certification
China HUATAO LOVER LTD certification
Huatao company is a very good company , I am very willing to cooperate with you, safe, efficient, professional, honest, happy! Thank you for providing me with stable service and products. -----EUROPAT

—— EUROPT INDUSTRIAL

I'm Online Chat Now

Corrugator Machine Pressure Corrugating Roll Steel C Flute For Single Facer

Corrugator Machine Pressure Corrugating Roll Steel C Flute For Single Facer
Corrugator Machine Pressure Corrugating Roll Steel C Flute For Single Facer
video play

Large Image :  Corrugator Machine Pressure Corrugating Roll Steel C Flute For Single Facer

Product Details:
Place of Origin: CHINA
Brand Name: HUATAO
Certification: ISO9001
Model Number: HT 1600-2800
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 3000/PC
Packaging Details: Standard export packing
Delivery Time: 30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 sets per year
Detailed Product Description
Product Name: Corrugating Roll Customize: Available
Material Capabilities: 48crmo Or 50crmo Alloy Steel Diameter: 100-600mm
Lentgh: 100-4000mm Flute Type: A.C.B.E.F.G As Customer Request
High Light:

corrugator machine pressure corrugating roll

,

c flute corrugating roll

,

single facer corrugated roller

Corrugator Machine Steel Corrugating Pressure Roll for Single Facer



The pressure roll is made of improved carbon structural steel. The roll is improve the hardness thought intermediate frequency quenching, and the surface of the roll is electroplated withchromium. So the roll is sturdy and durable.

Inspection of corrugated roller before installation

Clean and check the corrugated surface appearance of corrugated roller (including the quality of surface plating).
Clean and check all fastening parts of connection (including internal and external threads).
Check the outer diameter and middle height of corrugated roll (the whole roll surface is divided into more than five measuring points from both ends to the middle).The middle and high detection points are odd, and the middle and high data should be symmetrical on both sides.Measure with the outside diameter micrometer of corresponding specification (outside diameter micrometer can be bought commonly by electromechanical company).
Check the corrugated roll height.Needle type depth dial meter measurement (needle type depth dial meter is not currently bought in China, must be imported.Or may use the ordinary depth dial gauge to change the system).
Clean and check the outer diameter and appearance of each shaft gear of corrugated roller, and measure the outer diameter with the micrometer of corresponding specifications.



Corrugated Rollers Specification

  1. Material :Special 48CrMo alloy steel fine forgings

  2. Hardness:>HRC58 Quenching layer depth :5-7mm

  3. Coating Thickness 0.06and 0.07mm Tungsten Coating Thickness

  4. Surface plating: Micro hardness HV900-1250

  5. Combination hardness >75MPa

  6. Visible optical porosity <1%

  7. The optimization of economic type design

  8. High-speed Corrugating Rolls :twice fine grinding

Corrugating Roll Flute Type



Flute Type

Flute

Teeth/300mm Height of Flute
A UV 30±2 4.6-4.9
C UV 39±3 3.6-3.9
CB UV 44±2 3.0-3.4
B UV 50±2 2.6-2.9
BE UV 66±3 1.9-2.1
E UV 90±10 1.1-1.5
F UV 124±10 0.7-0.8
G UV 185±12 0.5-0.65
N UV 200±15 0.4-0.5
O UV 267 or design 0.25-0.35


Features

  1. Employing advanced heat treatment and plating technology, as well as high quality 48CrMo alloy steel forge piece,we can offer a wide range of rolls featuring high precision ,high hardness and long life.

  2. It adopts computer assistant design,and sets allitems parameters scientifically, soitinsures the quality specification economical,reliable and reasonablel

  3. It has big CNC corrugated roll precision grinding machine group,and they all work for corrugated roll.l

  4. Computer control to grind the concave rolll

  5. Select the good quality of 48CrMo, 50CrMo alloy steel forge pieceAdopt Germany advanced process to quenchin super ficialinter mediate frequency,hardened layer>7mm,hardness>HRC58-60(HS73-80),the hardness uniform with no soft zone.l

  6. We adopt the most advanced high-efficiency Atotech.Heef-25micro-cracks functional chrome plating technology and equipment,to be morerigid,smoother,more light,more wear-resistant surface hard chrome plating,electroplating longer life than ordinary more than 25 percent.

  7. We provide repair service for old corrugated roll at anytime
