Cooling Belt Corrugator Machine Parts With Silicone Coating

Large Image : Cooling Belt Corrugator Machine Parts With Silicone Coating

Product Details:

Place of Origin:	CHINA
Brand Name:	HUATAO
Model Number:	HT-SSD-01

Payment & Shipping Terms:

Minimum Order Quantity:	300 m2
Price:	US $310/m2
Packaging Details:	wooden box
Delivery Time:	35 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100m2 per month

Contact Now

Detailed Product Description

Product Name:	Cooling Belt With Silicon Coated	Material:	100% Synthetic With Silicon Coated
Max Working Speed:	400m/min	Max Width:	2880mm
Length:	Customized According To Your Request	Color:	White And Blue
Highlight:	cooling belt corrugator machine parts , corrugated cardboard production corrugator machine parts , silicone coating corrugated machine spare parts

Cooling Belt With Silicon Coated For Corrugated Cardboard Production

Product Description

The cooling belt with silicon-coated is a new tech belt normally used as the lower belt for the high-speed corrugator line.

Features

1. This belt has no slippage problems when runs on the corrugator.

2. High precision of corrugated cardboard cutting.

3. Long service lifetime.

4. The hole-type belt is suitable for the cooling part of the corrugator with a suction device.

Specification Sheet

Material	100 % synthetic with silicon coated
Thickness	8.5 - 9 mm
Width range	Max 2880 mm
Length	80 meters
Tensile strength	15.1KN/40 mm
Coefficient of friction	0.42µ
Weight per unit	(6.5±0.3)kg/㎡
Life Warranty	60-70 million linear meters
Working speed	Max 400m/min

Product Photos

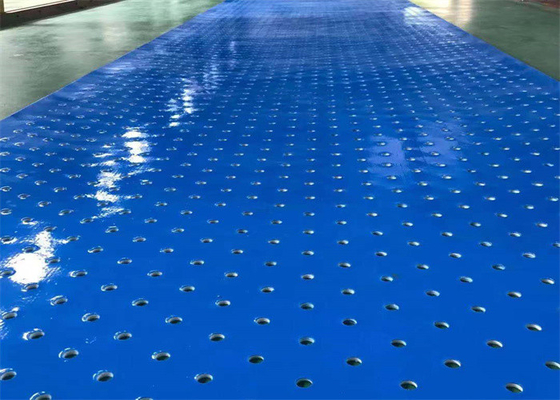

Cooling Belt Corrugator Machine Parts With Silicone Coating 0

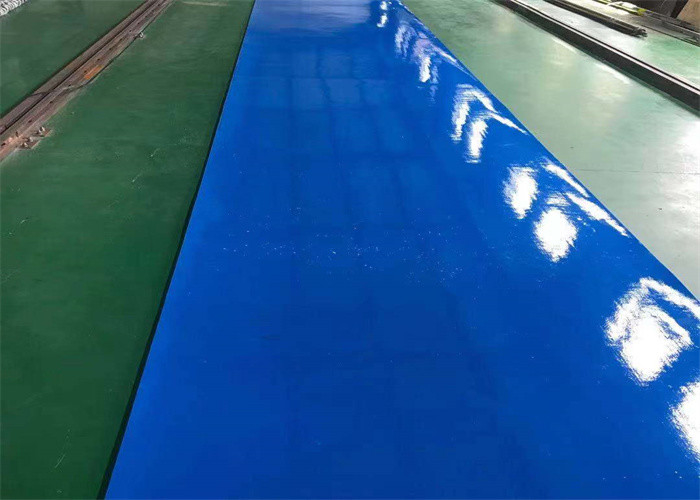

Cooling Belt Corrugator Machine Parts With Silicone Coating 1
