Product Details:
Payment & Shipping Terms:
|
| Product Name: | Tungsten Carbide Corrugating Roll | Material: | 50crmo Precision Forged Alloy Steel |
|---|---|---|---|
| Coating: | American Praxair Super Hard 1342 Tungsten Cabide P | Length: | 100-4000mm |
| Flute Type: | A.C.B.E.F.G Or As Customer Request | After Service: | Old Corrugating Roll Maintenance |
| High Light: | Peripheral Heating Corrugating Roll,Corrugated Paper Making Corrugating Roll,Peripheral Heating corrugating roller |
||
Tungsten Carbide Peripheral Heating Corrugating Roll For Corrugated Paper Making
Product Description
Corrugating Rollers, as the most important part of the corrugated cardboard production line, whose abrasion resistance and the service life is the main technical index for measuring quality and economical efficiency, directly influence the economic benefits of the manufacturer.
The most important parameter is the flute profile. To design the flute profile, we must know the corrugated paper gsm, speed, flute height, correct diameter, and other requirements such as good FCT, saving paper, etc. Our engineer has rich experience in designing flute profiles. Or many problems appear, such as flute paper broken, low speed, collapsed flute, and high-low flute.
Specification Sheet
| Flute Type | Flute | Teeth/300mm | Height of Flute |
| A | UV | 30±2 | 4.6-4.9 |
| C | UV | 39±3 | 3.6-3.9 |
| CB | UV | 44±2 | 3.0-3.4 |
| B | UV | 50±2 | 2.6-2.9 |
| BE | UV | 66±3 | 1.9-2.1 |
| E | UV | 90±10 | 1.1-1.5 |
| F | UV | 124±10 | 0.7-0.8 |
| G | UV | 185±12 | 0.5-0.65 |
| N | UV | 200±15 | 0.4-0.5 |
| O | UV | 267 or design | 0.25-0.35 |
Roll types
1 Classification by tooth type:
The common tooth types are, AC, C, BC, B, be, E1, E2, F, and G.
2. Classification according to tooth shape:
Common shapes are U-shape, UV partial U-shape, UV partial V-line, and V-shape.
3 Classification by surface hardness treatment:
The common forms are surface medium frequency quenching, surface nitriding and surface laser.

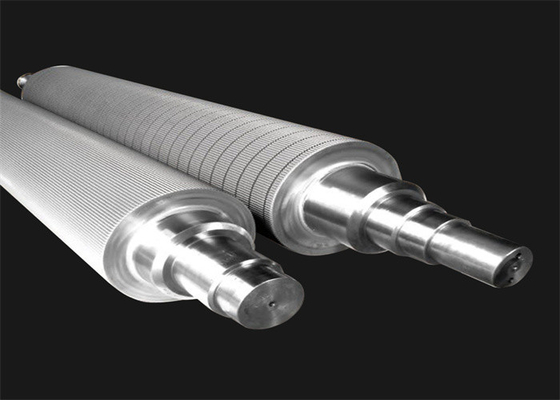

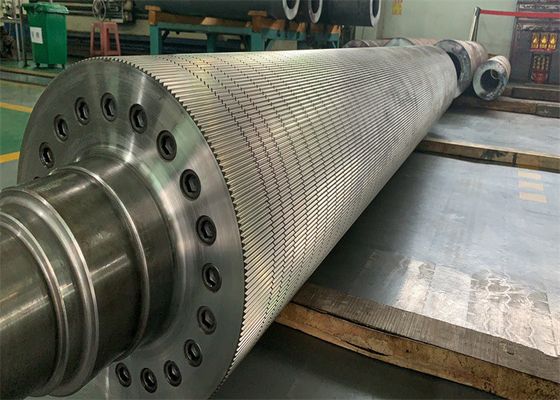

Product Photos
