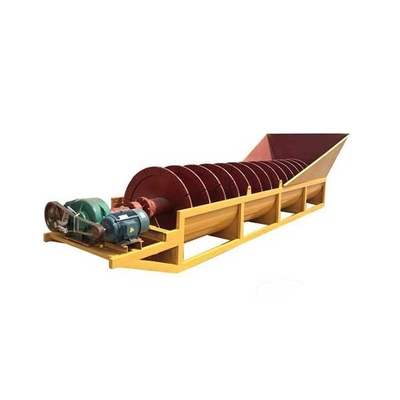

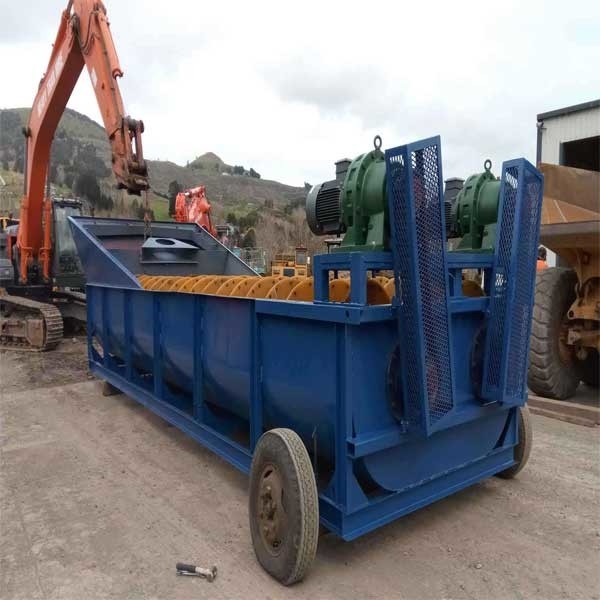

Spiral Sand Washing machine

Spiral Sand Washing machine
Spiral sand washers can be used to clean sand, gravel, or grading equipment. It is widely used in cleaning materials containing a large quantity of mud obvious. It's a good seal structure, fully enclosed gear, efficient, durable, good dehydration effect, the power consumption is small, fine products remain stable.
Its seal structure, the use of closed transmission device, has high efficiency, durable, dehydration effect is good, small power consumption, and fine particle characteristics of products remain stable.

Spiral sand washer Advantages:

1. High capacity
2. Heavy-duty conveying paddles
3. Fabricated with heavy-duty tubs
4. Oversize bearings and gears
5. Thick-walled shafts
6. Lower end bolted to fully machined stub shaft. Upper end mounted through flexible coupling to the output shaft of the gearbox
7. The compound drive divides the operating load over an optimal combination of oversized helical and spur gears
Continuous grinding and abrading log washer paddles

Working Principle:

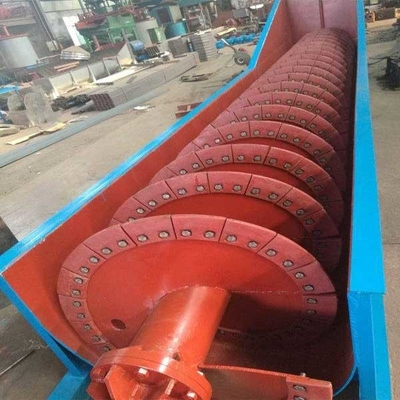

The Screw sand washer machine adopts an inclination of 15°, under the water tank, three weir plates form the sediment pool, the screw head is immersed in this tank, the screw is driven by an electric motor through reducer rotating continuously, the fresh water is feeding on the porous plate at bottom of sediment tank.
The screw sand washer is a kind of sand washing machine, appliance by water fit with the sand maker. The sand washer can wash out a micro amount of stone powder and impurities from the mixed sand made by the sand maker to improve the quality of the sand.
Through the generator and redactor drives the impeller to rotate in circles continuously in the water tank, the sand washers are impelled to make the sandstones and slag particles mixed, inverted, and washed in the tank and discharged after dewatering of the materials in the impeller.
Its novel sealed structure, totally-enclosed oil-bath transmission system, and adjustable overflow slice ensure the characteristics of high efficiency, durability, cleanness, good dehydrating effect, and reliable product size.

Technical Parameter:

FAQ:

Q: How is the quality of your products?

A: We are a manufacturer with more than 30 years of manufacturing experience in crusher and grinding mill types of machinery. According to the national and international standards, all of our machines are manufactured carefully and strictly by our skillful workers, we will test each equipment before delivery. You can choose product quality protection, on-time shipment protection, and payment protection.

Q: Will you provide an after-sale service?

A: Yes. The warranty of our machines is 12 months, other than that we have a professional after-sale service team to solve your problems thoroughly and promptly.

Q: Will you provide training for our staff?

A: Yes. We can send our professional engineers to the working site for equipment installation, commission, and operation training. All of our engineers own their passports.

Q: Do you provide a concrete batching plant flow chart?

A: Yes. Our experienced engineers are specialized in designing flowcharts for different concrete batching plants. We will design the concrete batching plant based on the customer's requirements.
