| High Light: | variable speed line mining vibrating feeder,mini mining vibrating feeder,variable speed line mini vibrating feeder |
||
|---|---|---|---|

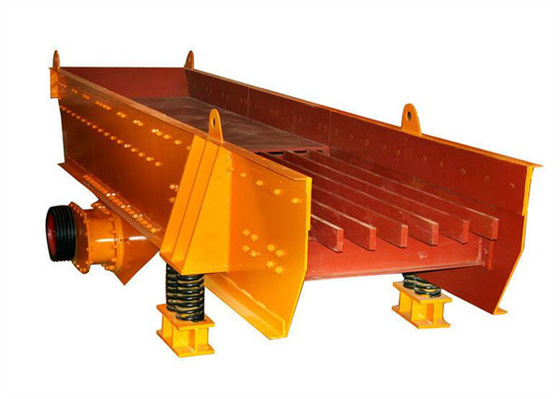

ZSW series linear feeder drives the double eccentric shaft vibration exciter by the motor through the V-belt. The two eccentric shafts in the vibration exciter are guaranteed to rotate in the opposite direction by meshing gears at both ends. When the two eccentric shafts are assembled, the eccentricity forms a certain angle. The centrifugal force generated causes the box to produce reciprocating linear projection vibration, and the material moves forward continuously during the vibration process. The front end of the machine is equipped with pre-screening screen bars to remove soil impurities or pre-screen materials.
Uses and Features
ZSW series linear vibrating feeders are widely used in transportation, mining, metallurgy, water conservancy and other industries, and are ideal supporting equipment for crushing machinery. This machine has the characteristics of compact structure, strong excitation force, large feeding amount, stable vibration, reliable operation, long service life, large feeding particle size, impact resistance, and pre-screening of materials.
| Model | MAX Feeding(MM) | Chute Size(MM) | Capacity(T/H) | Power(KW) | Vibrating Frequency(f/min)· | Dimension (mm) | Chute Angle | Double Swing(mm) |
| ZSW380-96 | 600 | 1000*3800 | 70-200 | 15 | 680 | 3882*2211*2340 | 0 | 6-8 |
| ZSW380-120 | 600 | 1200*3800 | 90-450 | 15 | 680 | 3882*2411*2340 | 0 | 6-8 |
| ZSW380-140 | 600 | 1400*3800 | 150-500 | 18.5 | 680 | 3882*2611*2340 | 0 | 6-8 |
| ZSW380-160 | 600 | 1600*3800 | 200-550 | 22 | 680 | 3882*2820*2340 | 0 | 6-8 |
| ZSW490-110 | 600 | 1100*4900 | 120-400 | 18.5 | 680 | 5000*2500*2665 | 0 | 6-8 |
| ZSW490-120 | 600 | 1200*4900 | 150-450 | 18.5 | 680 | 5000*2600*2665 | 0 | 6-8 |
| ZSW490-130 | 600 | 1300*4900 | 160-480 | 22 | 680 | 5000*2700*2420 | 0 | 6-8 |
| ZSW490-140 | 600 | 1400*4900 | 180-500 | 30 | 680 | 5000*2800*2665 | 0 | 6-8 |
| ZSW490-160 | 600 | 1600*4900 | 220-550 | 30 | 680 | 5000*3000*2665 | 0 | 6-8 |
| ZSW490-180 | 600 | 1800*4900 | 250-650 | 37 | 680 | 5000*3200*2665 | 0 | 6-8 |
| ZSW490-200 | 850 | 2000*4900 | 500-800 | 37 | 680 | 5000*3520*2420 | 0 | 6-8 |
| ZSW490-220 | 850 | 2200*4900 | 620-1000 | 37*2 | 680 | 5000*4300*2420 | 0 | 6-8 |
