Low Thermal Conductivity Silica Aerogel Insulation Blanket For Boiler

Large Image : Low Thermal Conductivity Silica Aerogel Insulation Blanket For Boiler

Product Details:

Place of Origin:	China
Brand Name:	HUATAO
Certification:	CE & ISO
Model Number:	HT-Aerogel Blanket

Payment & Shipping Terms:

Minimum Order Quantity:	One Roll
Price:	Price Accept Negotiation
Packaging Details:	As Request
Delivery Time:	within 15 days
Payment Terms:	T/T,Western Union,MoneyGram,,L/C
Supply Ability:	500000 square meter/month

Contact Now

Detailed Product Description

Color:	White	Material:	Silica Aerogel
Thickness:	3mm,6mm,10mm	Width:	1500 Or As Request
Length:	Request	Use Temperature:	-200℃ - +1000 ℃
Highlight:	6mm aerogel insulation blanket , boiler aerogel insulation blanket , low thermal conductivity aerogel blanket

Low Thermal Conductivity Silica Aerogel Insulation Blanket For Boiler

Product Attributes

Attribute	Value
Color	White
Material	Silica Aerogel
Thickness	3mm, 6mm, 10mm
Width	1500 Or As Request
Length	Request
Use Temperature	-200℃ - +1000℃

Product Description

Low Thermal Conductivity Silica Aerogel Insulation Blanket For Boiler is one of our hot sale products. It has chosen the acupuncture fiber as substrate, and then the aerogel is compounded into the substrate. It has the thermal insulation performance and surface hydrophobicity and excellent flame retardant properties.

Aerogel insulation blanket is made of organic fiber (such as PET or polyester fiber) as a substrate, through a special process, in the fiber implanted nano-silica aerogel. It has the advantages of low thermal conductivity, low density, good flexibility, high compressive strength and strong hydrophobic performance. At the same time, it has excellent sound insulation performance and can be used in cryogenic field of -200℃.

Specification

Model	HTAB-3	HTAB-6	HTAB-10
Thickness(mm)	3	6	10
Width(mm)	1400/1500(customizable)
Color	White
Permitted useful temperature range(°C)	-200~650	-200~650	Fiberglass composite: -200~650 Ceramic fiber composite: 600~1000
Density(kg/m³)	200±20	200±20	200±20
Linear expansivity	4.2×10-6
Dimensional stability(max)	1% (Test method GB/T 8811-2008)
Compressive property (min),kpa,@10%	60 (Test method GB/T 13480-2014)
Compressive property (min),kpa,@25%	120 (Test method GB/T 13480-2014)
Burning behavior	A1 (Test method GB/T 20285-2006)
The smoke performance level	SR-2
Drip content level	ST-2
Smoke toxicity of the FED's value,(max)	0.1
Corrosion resistance	pass (Test method GB/T 3810.1-2006)
Hydrophobicity,(%)	>99.8 (Test method GB/T 10299-2011)
Tensile strength(min),(kpa)	Fiberglass composite: 100 Ceramic fiber composite: 80 (Test method GB/T 17911-2011)

Remarks: Silica aerogel fiberglass and ceramic fiber technical parameters

If you have any question or demands, kindly contact our professional team, we will give you the best solution according to your machine, operation temperature and our rich production experience.

Advantages

Optimized thermal conductivity in high temperature service
Faster application, especially on large-bore piping and vessels
Addresses tight, hard-to-insulate spaces with outstanding thermal efficiency
Flexible blanket material won't crack, sag, or settle in high-temperature service
Stands up to vibration, footfalls, and tool strikes
Tough enough for reuse after removal and inspection
Hydrophobic and breathable, Aerogel resists liquid water and avoids the damaging effects of wet insulation
Versatile format can be fitted to any piece of piping or equipment, greatly simplifying material management
Higher packing density reduces shipping and storage costs by up to 90%

Applications

Construction: Interior and exterior wall, door, floor, ceiling, roof, partitions, fireproof door
Cold Storage: fridge, freezer, refrigerators, cold storage, medical incubator, blood bank, medicine box, refrigerated container
Vehicle: Engine heat shield, catalytic exhaust pipe
Aerospace: Engine, black box
Building materials industry furnace: All types industry kiln, including rotary kiln, shuttle kiln, roasted kiln
Metallurgy: torpedo tank, steel ladle, tundish, coke oven door
Machinery: industrial stove, electric stove, stove door, stove cover
Instrumentation: stove temperature tracker, heat accumulator, data record protection, electric ceramic stove

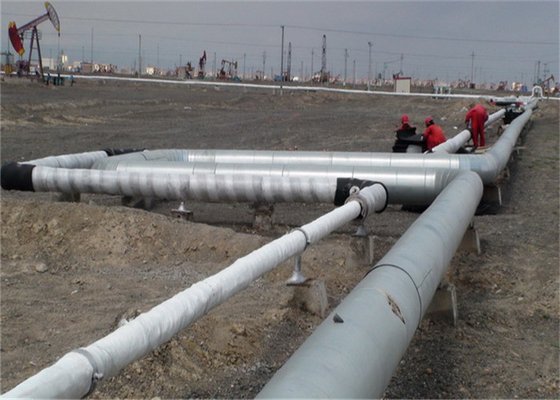

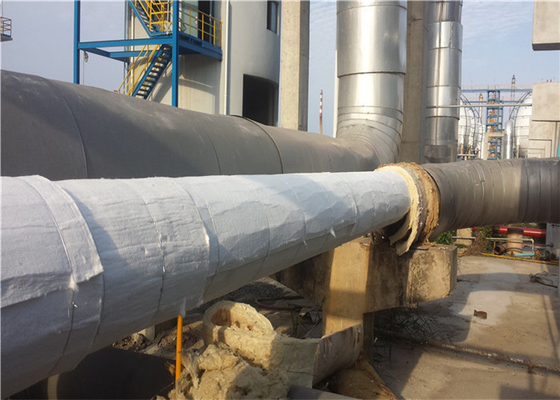

Petrochemical: pipeline insulation, high temperature reactor, cracking stove, conversion stove, heating stove
Electricity: boiler, steam turbine, pipeline, electronic insulation part
