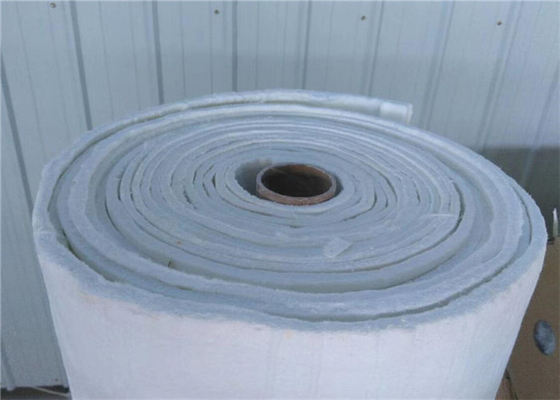

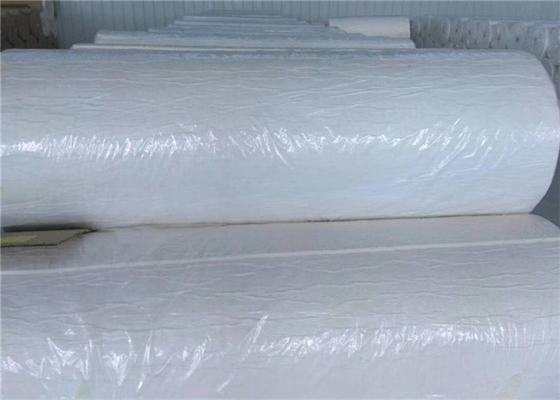

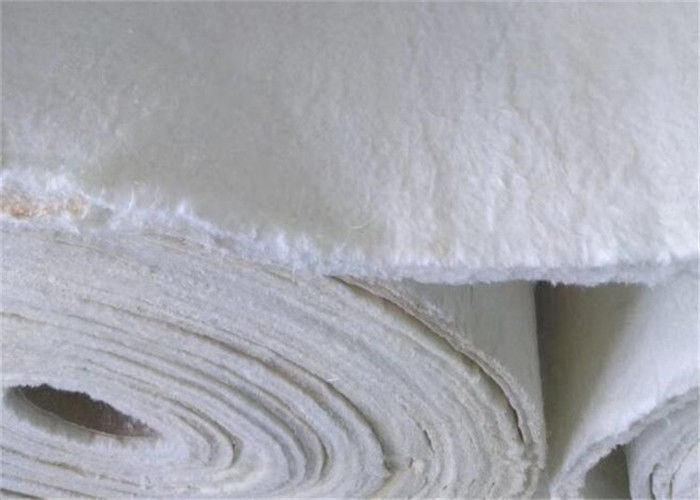

High Temperature Felt Aerogel Insulation Blanket 6mm

High Temperature Felt Aerogel Insulation Blanket 6mm
High Temperature Felt Aerogel Insulation Blanket 6mm High Temperature Felt Aerogel Insulation Blanket 6mm High Temperature Felt Aerogel Insulation Blanket 6mm High Temperature Felt Aerogel Insulation Blanket 6mm

Large Image :  High Temperature Felt Aerogel Insulation Blanket 6mm

Product Details:
Place of Origin: CHINA
Brand Name: HUATAO
Certification: ISO
Model Number: HT-Aerogel Blanket
Payment & Shipping Terms:
Minimum Order Quantity: One Roll
Price: Price Accept Negotiation
Packaging Details: As Request
Delivery Time: within 15 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500000 square meter/month
Detailed Product Description
Color: White Material: Silica Aerogel
Thickness: 3mm,6mm,10mm Width: 1500 Or As Request
Length: Request Use Temperature: -200℃ - +1000 ℃
High Light:

high temperature aerogel insulation blanket

,

aerogel insulation blanket 6mm

,

high temperature aerogel blanket

    Insulation Material Aerogel High Temperature Insulation Felt for High Temperature Applications



DESCRITION



Insulation Material Aerogel High Temperature Insulation Felt for High Temperature Applications is one of our hot sale products.It has chosen the acupuncture fiber as substrate, and then the aerogel is compounded into the substrate. It has the thermal insulation performance and surface hydrophobicity and excellent flame retardant properties.

Aerogel insulation blanket is made of organic fiber (such as PET or polyester fiber) as a substrate, through a special process, in the fiber implanted nano-silica aerogel. It has the advantages of low thermal conductivity, low density, good flexibility, high compressive strength and strong hydrophobic performance. At the same time, it has excellent sound insulation performance and can be used in cryogenic field of -200 ℃.



SPECIFICATION



Model HTAB-3 HTAB-6 HTAB-10
Thickness(mm) 3 6 10
Width(mm) 1400/1500(customizable)
Color White
Permitted useful temperature range(°C) -200~650 -200~650 Fiberglass composite: -200~650
Ceramic fiber composite: 600~1000
Density(kg/m³) 200±20 200±20 200±20
Linear expansivity 4.2×10-6
Dimensional stability(max) 1% Test method GB/T 8811-2008
Compressive property (min),kpa,@10% 60 Test method GB/T 13480-2014
(min),kpa,@25% 120 Test method GB/T 13480-2014
Burning behavior A1 Test method GB/T 20285-2006
The smoke performance level SR-2
Drip content level ST-2
Smoke toxicity of the FED's value,(max) 0.1
Corrosion resistance pass Test method GB/T 3810.1-2006
Hydrophobicity,(%) >99.8 Test method GB/T 10299-2011
Tensile strength(min),(kpa) Fiberglass composite: 100
Ceramic fiber composite: 80
Test method GB/T 17911-2011
Remarks : Silica aerogel fiberglass and ceramic fiber technical parameters


If you have any question or demands,kindly contact our prefessional team,we will give you the best solution according to your machine,operation temperature and our rich production experience.



ADVANTAGE



Optimized thermal conductivity in high temperature service

Faster application, especially on large-bore piping and vessels

Addresses tight, hard-to-insulate spaces with outstanding thermal efficiency

Flexible blanket material won't crack, sag, or settle in high-temperature service

Stands up to vibration, footfalls, and tool strikes

Tough enough for reuse after removal and inspection

Hydrophobic and breathable, Aerogel resists liquid water and avoids the damaging effects of wet insulation

Versatile format can be fitted to any piece of piping or equipment, greatly simplifying material management

Higher packing density reduces shipping and storage costs by up to 90%



APPLICATION



Construction: Interior and extrior wall, door, floor, ceiling, roof, partitions, fireproof door

Cold Storage: fridge, freezer, refrigerators, cold storage, medical incubator, blood bank, medicine box, refrigerated container.

Veicle: Engine heat shield, catalytic exhaust pipe

Aerospace: Engine, black box

Building materials industry furnace: All types industry kiln, including rotary kiln, shuttle kiln, roasted kiln

Metallurgy: torpedo tank, steel ladle, tundish, coke oven door

Machinery: industrial stove, electric stove, stove door, stove cover

Instrumentation: stove temperature tracker, heat accumulator, data record protection, electric ceramic stove.

Petrochemical: pipeline insulation, high temperature reactor, cracking stove, conversion stove, heating stove

Electricity: boiler, steam turbine, pipeline, electronic insulation part



High Temperature Felt Aerogel Insulation Blanket 6mm 0High Temperature Felt Aerogel Insulation Blanket 6mm 1
