Product Details:
Payment & Shipping Terms:
|
| Color: | White | Material: | Silica Aerogel |
|---|---|---|---|
| Thickness: | 3mm,6mm,10mm | Width: | 1500 Or As Request |
| Length: | Request | Service: | 24 Hours, 1 Weeks, 365 Days |
| High Light: | silica material aerogel insulation blanket,10mm thickness aerogel insulation blanket,3mm thickness aerogel blanket |
||
Silica Material Insulation 650 Working Temperature Aerogel Insulation Blanket 3-10mm Thickness For Building
DESCRITION

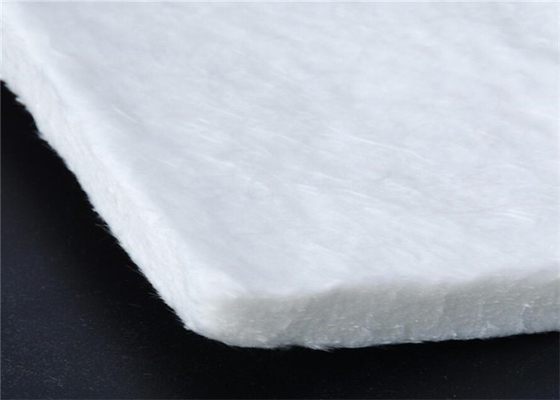

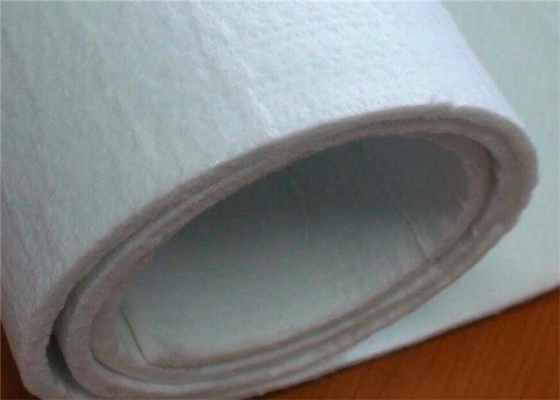

Silica aerogel insulation blanket is one of our hot sale products.It has chosen the acupuncture fiber as substrate, and then the aerogel is compounded into the substrate. It has the thermal insulation performance and surface hydrophobicity and excellent flame retardant properties.
Aerogel insulation blanket is made of organic fiber (such as PET or polyester fiber) as a substrate, through a special process, in the fiber implanted nano-silica aerogel. It has the advantages of low thermal conductivity, low density, good flexibility, high compressive strength and strong hydrophobic performance. At the same time, it has excellent sound insulation performance and can be used in cryogenic field of -200 ℃.
SPECIFICATION
| Model | HTAB-3 | HTAB-6 | HTAB-10 | |
| Thickness(mm) | 3 | 6 | 10 | |
| Width(mm) | 1400/1500(customizable) | |||
| Color | White | |||
| Permitted useful temperature range(°C) | -200~650 | -200~650 | Fiberglass composite: -200~650 Ceramic fiber composite: 600~1000 |
|
| Density(kg/m³) | 200±20 | 200±20 | 200±20 | |
| Linear expansivity | 4.2×10-6 | |||
| Dimensional stability(max) | 1% | Test method GB/T 8811-2008 | ||
| Compressive property | (min),kpa,@10% | 60 | Test method GB/T 13480-2014 | |
| (min),kpa,@25% | 120 | Test method GB/T 13480-2014 | ||
| Burning behavior | A1 | Test method GB/T 20285-2006 | ||
| The smoke performance level | SR-2 | |||
| Drip content level | ST-2 | |||
| Smoke toxicity of the FED's value,(max) | 0.1 | |||
| Corrosion resistance | pass | Test method GB/T 3810.1-2006 | ||
| Hydrophobicity,(%) | >99.8 | Test method GB/T 10299-2011 | ||
| Tensile strength(min),(kpa) | Fiberglass composite: 100 Ceramic fiber composite: 80 |
Test method GB/T 17911-2011 | ||
| Remarks : Silica aerogel fiberglass and ceramic fiber technical parameters | ||||
If you have any question or demands,kindly contact our prefessional team,we will give you the best solution according to your machine,operation temperature and our rich production experience.
ADVANTAGE
Optimized thermal conductivity in high temperature service
Faster application, especially on large-bore piping and vessels
Addresses tight, hard-to-insulate spaces with outstanding thermal efficiency
Flexible blanket material won't crack, sag, or settle in high-temperature service
Stands up to vibration, footfalls, and tool strikes
Tough enough for reuse after removal and inspection

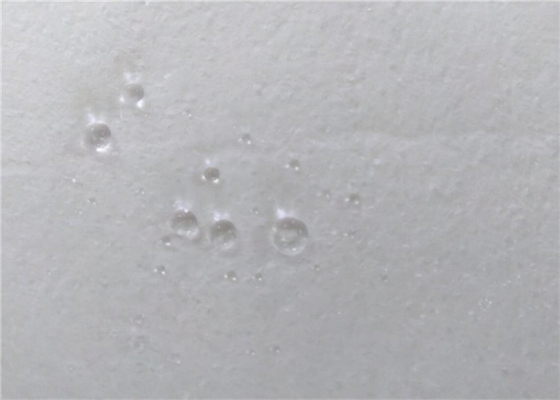

Hydrophobic and breathable, Aerogel resists liquid water and avoids the damaging effects of wet insulation
Versatile format can be fitted to any piece of piping or equipment, greatly simplifying material management
Higher packing density reduces shipping and storage costs by up to 90%
APPLICATION
Construction: Interior and extrior wall, door, floor, ceiling, roof, partitions, fireproof door
Cold Storage: fridge, freezer, refrigerators, cold storage, medical incubator, blood bank, medicine box, refrigerated container.
Veicle: Engine heat shield, catalytic exhaust pipe
Aerospace: Engine, black box
Building materials industry furnace: All types industry kiln, including rotary kiln, shuttle kiln, roasted kiln
Metallurgy: torpedo tank, steel ladle, tundish, coke oven door
Machinery: industrial stove, electric stove, stove door, stove cover
Instrumentation: stove temperature tracker, heat accumulator, data record protection, electric ceramic stove.

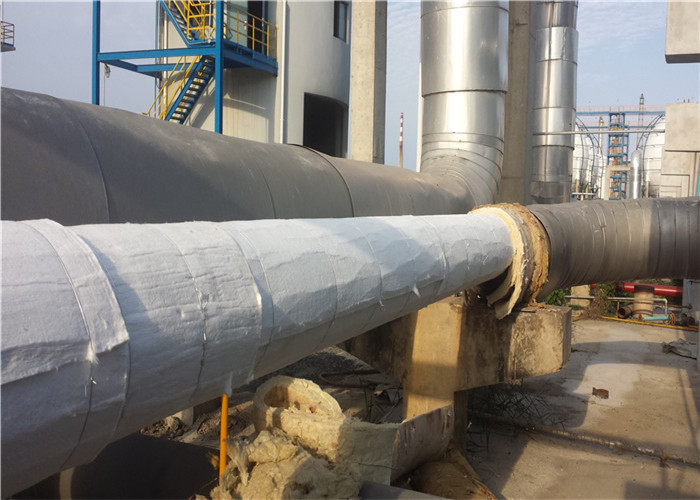

Petrochemical: pipeline insulation, high temperature reactor, cracking stove, conversion stove, heating stove
Electricity: boiler, steam turbine, pipeline, electronic insulation part
As we know, ASPEN is the largest aerogel manufacturer and has the most popular name value in the current business market.
Even though there are many other aerogel manufacturers in addition to ASPEN, it’s not easy to replace ASPEN.
However, at the same time, it’s true that many customers ( EPCs) feel uncomfortable for ASPEN’s high price strategy.
In this regard, how competitive the price we can supply will be the key factor.
Please check our brief price, it was 20% down from ASPEN.
If you can see the proper advantage on a price basis, Can you try to approach your clients?
2. Which kind of aerogel do you have?
We have two series for Aerogel Blanket: One is HT650 Series, Other is HT200 Series:
HT650, It was Aerogel insulation blanket with fiberglass, similar to Pyrogel XT and Spaceloft ( mainly used for the hot &heat insulation and
building insulation, working temperature from -200℃ to 650℃), the thermal conductivity from 0.018-0.023 W/m.k
HT200. Aerogel insulation blanket with Aluminium foil, similar to Cryogel Z ( mainly used for the cold insulation, such as LNG, Working
temperature from -190℃-150℃ ),the thermal conductivity from 0.019-0.021 W/m.k
3. Can you send the samples for the test ?
Certainly, the samples can be sent to you, and with free cost. size with 10*15cm is this workable for your testing?
Please share with me your office address and contact information. thanks
4. What certificate do you have for aerogel blanket?
Our Aerogel Blanket is strictly according to ASTM D 1728 Standard. and can meet Reach, ROHS standard.
MSDS also can enclose for your reference.
5. What is your Package?
For the aerogel Blanket, we package it with Papertube and PE Film and paper board
