Customize Corrugated Cardboard Roll For Single Facer

Large Image : Customize Corrugated Cardboard Roll For Single Facer

Product Details:

Place of Origin:	CHINA
Brand Name:	HUATAO
Certification:	ISO9001
Model Number:	Corrugated Flute Roller Corrugated Cardboard Roll For Single Facer

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD 3000/PC

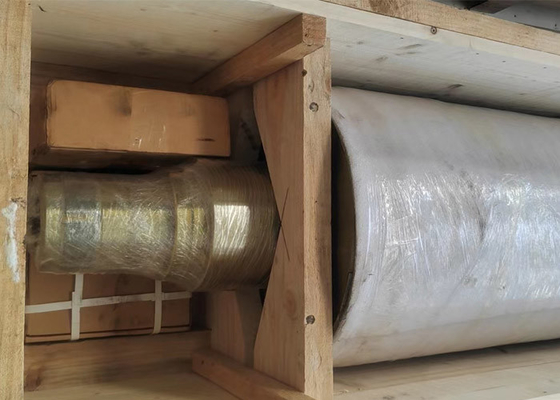

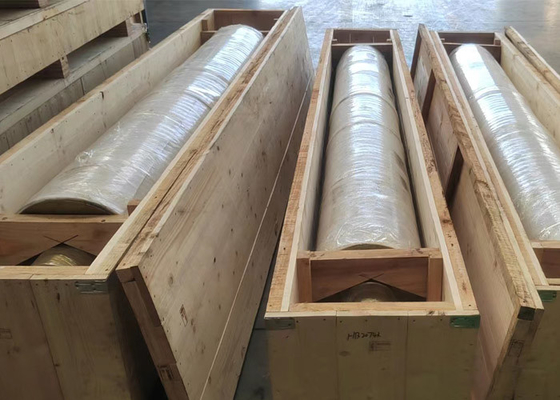

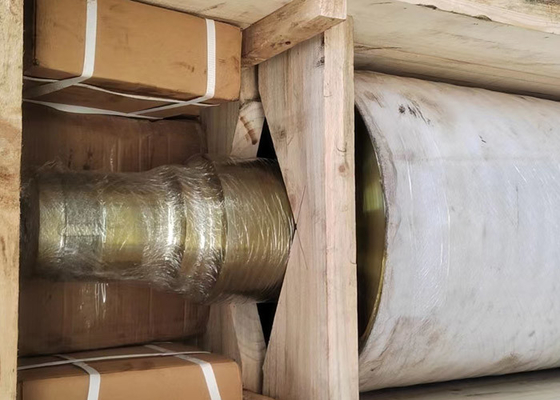

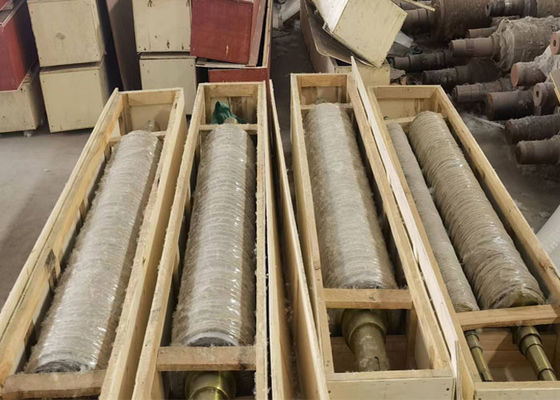

Packaging Details:	Standard Export Packing
Delivery Time:	20 Days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	100 sets per year

Contact Now

Detailed Product Description

Product Name:	Corrugated Flute Roller Corrugated Cardboard Roll For Single Facer	Customize:	Available
Material Capabilities:	48crmo Or 50crmo Alloy Steel	Diameter:	100-600mm
Lentgh:	100-4000mm	Flute Type:	A.C.B.E.F.G As Customer Request
Highlight:	Single Facer Corrugated Cardboard Roll , Single Face Corrugated Cardboard Roll , Corrugated Flute Roller

Customize Corrugated Cardboard Roll For Single Facer

Product Specifications

Attribute	Value
Product Name	Corrugated Flute Roller Corrugated Cardboard Roll For Single Facer
Customize	Available
Material Capabilities	48crmo or 50crmo Alloy Steel
Diameter	100-600mm
Length	100-4000mm
Flute Type	A.C.B.E.F.G as Customer Request

Product Description

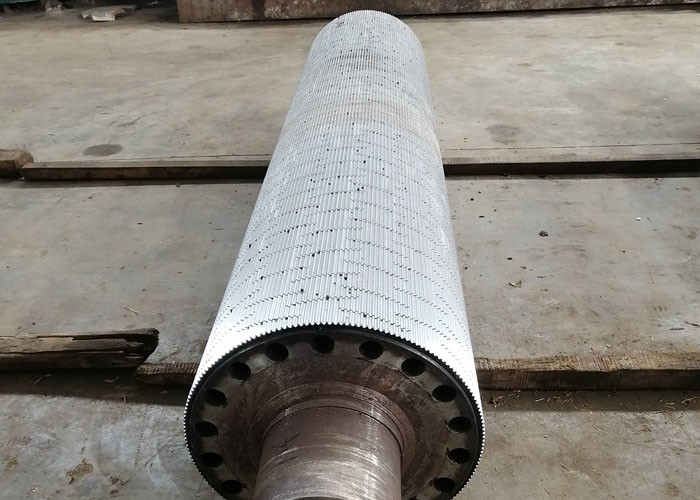

The Corrugated Flute Roller Corrugated Cardboard Roll For Single Facer is the most important part of corrugated cardboard production line. Its abrasion resistance and service life are the main technical indexes for measuring quality and economical efficiency, directly influencing the economic benefits of manufacturer.

The most important parameter is the flute profile. To design the flute profile, we must know the corrugated paper gsm, speed, flute height, correct diameter and other requirements such as good FCT, saving paper, etc. Our engineers have rich experience in designing flute profiles to prevent common problems like flute paper breakage, low speed, collapsed flute, or high-low flute issues.

Technical Specifications

Material: Special 48CrMo alloy steel fine forgings
Hardness: >HRC58 Quenching layer depth: 5-7mm
Coating Thickness: 0.06 and 0.07mm Tungsten Coating Thickness
Surface plating: Micro hardness HV900-1250
Combination hardness: >75MPa
Visible optical porosity: <1%
The optimization of economic type design
High-speed Corrugating Rolls: twice fine grinding

Flute Type Specifications

Flute Type	Flute	Teeth/300mm	Height of Flute (mm)
A	UV	30±2	4.6-4.9
C	UV	39±3	3.6-3.9
CB	UV	44±2	3.0-3.4
B	UV	50±2	2.6-2.9
BE	UV	66±3	1.9-2.1
E	UV	90±10	1.1-1.5
F	UV	124±10	0.7-0.8
G	UV	185±12	0.5-0.65
N	UV	200±15	0.4-0.5
O	UV	267 or design	0.25-0.35
