| Product Name: | Passive Roll | Diameter: | 300-1250mm |
|---|---|---|---|
| Roller Length: | 60-2500mm | Installation Method: | Internal Tooth Shaft Type, Flat Tenon Type, Spring Press-in Type, Shaft Pin Hole Type |
| Material: | 45 Stell | Tensile Strength: | >=5MPa |
| High Light: | high loading passive rubber lagging rollers,textile printing dyeing rubber lagging rollers |
||

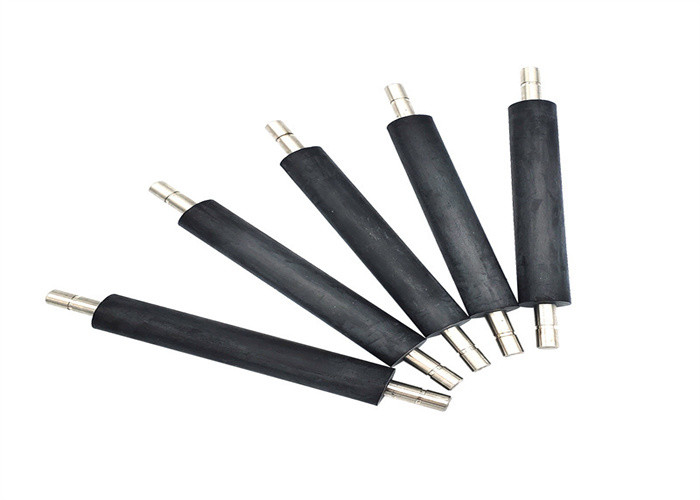

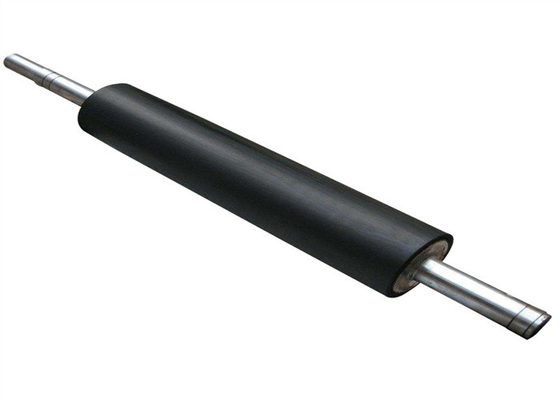

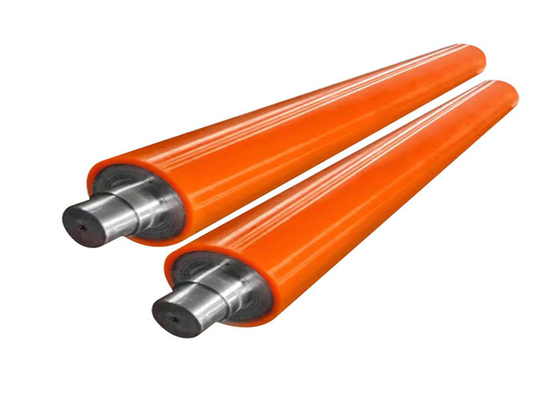

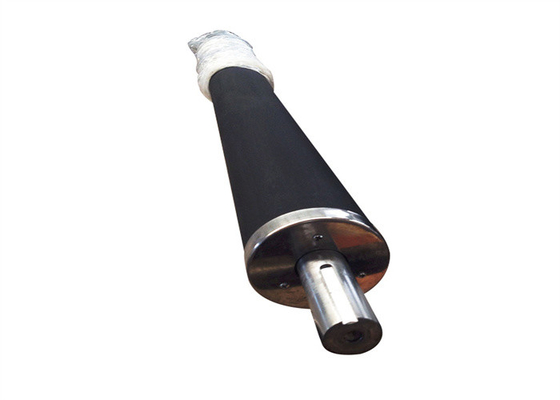

Strong And Durable, High Loading Passive Roll For Textile Printing And Dyeing
Passive roller Description
Passive rollers are cylindrical components that manually drive the conveyor belt or change its running direction, and are one of the main accessories of conveyors. The main function of the passive roller is to convey the goods by pushing them manually.
Passive roller Specification
| Product name | Passive roller |
| Roller diameter | 25mm,32mm,38mm,42mm,50mm,57mm,60mm,76mm,89mm |
| Wall thickness of rollers | 1.0mm,1.2mm,1.5mm,2.0mm,2.5mm,3.0mm,4.0mm |
| Roller shaft diameter | 8mm,10mm,12mm,15mm,20mm,25mm |
| Roller length | 60-2500mm |
| Roller material | Carbon steel galvanized, carbon steel chrome plated, SUS201, SUS304, aluminum alloy, carbon steel overlay, carbon steel overlay rubber, carbon steel overlay polyurethane, ABS |
| Roller type |
Round rollers, square rollers, conical rollers |
Passive roller Advantages
1,Passive roller fine bearing based on the punch riveting method fixed immobile in the steel rolling bearing, strong, durable.
2,Passive roller diameter series products, load-bearing field is large.
3,Sturdy steel roller bearing parts of the Passive roller, can bear a greater load than the plastic belt seat bearings.
Passive roller Components
(1) Barrel: generally made of round tubes. Commonly used are steel tubes, plastic tubes, high-precision and high-strength can be made of round steel;
(2) Inner shaft: generally made of round steel. Small diameter can be made of cold-drawn round steel, and large diameter with high precision can be made by turning;
(3) end cover: generally made of carbon steel. The small diameter of the load can be processed by punching, and the larger diameter or the large load can be processed by turning;
(4) bearing: according to the cylinder and end cover to choose the appropriate standard bearing can be.
Passive roller Installation method
Internal tooth shaft type, flat tenon type, spring press-in type, shaft pin hole type
