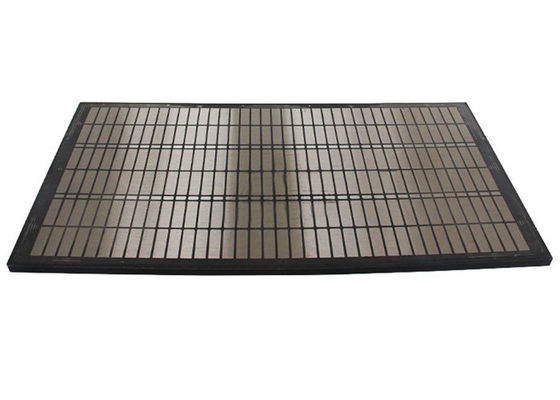

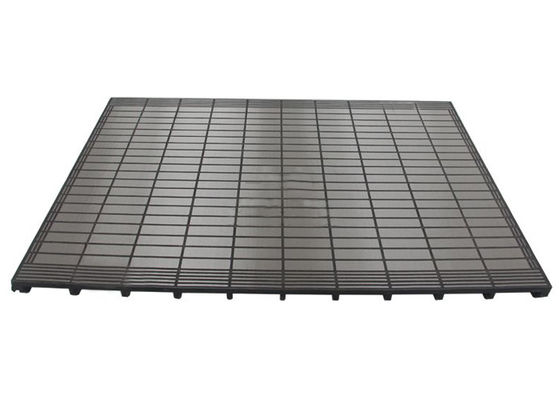

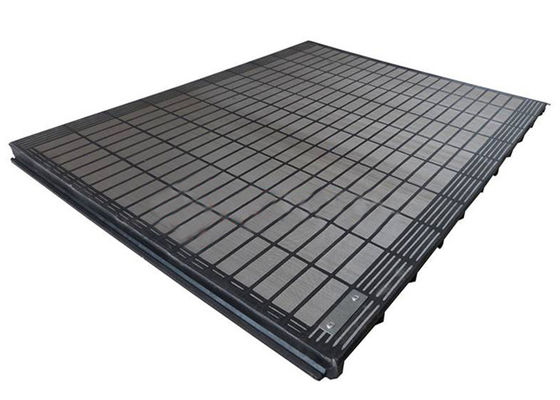

High Frequency Composite Frame Shale Shaker Screen with Stainless Steel Wire Cloth and Customized Dimensions

Large Image : High Frequency Composite Frame Shale Shaker Screen with Stainless Steel Wire Cloth and Customized Dimensions

Product Details:

Place of Origin:	China
Brand Name:	Huatao
Certification:	CE
Model Number:	Composite Frame Screen

Payment & Shipping Terms:

Minimum Order Quantity:	10 Pieces
Price:	USD50 -500/Piece
Packaging Details:	Export Standard Packaging
Delivery Time:	5-8 days
Payment Terms:	L/C,T/T,Western Union,MoneyGram
Supply Ability:	100000PCS/Year

Contact Now

Detailed Product Description

Product Name:	Composite Frame Screen Oil/Petroleum Shale Shaker Screen Media	Frame Materials:	Stainless Steel, Composite Frame
Application:	Drilling	Production Capacity:	100000PCS/Year
Type:	High Frequency	Dimension(lwh):	Customized
Highlight:	composite frame shale shaker screen , petroleum shale shaker screen

Composite Frame Shale Shaker Screen Oil / Petroleum Media

Composite Frame Screen Oil/Petroleum Shale Shaker Screen Media

Composite frame screen is mainly composed of composite frame and 2 or 3 layers stainless steel wire cloths. The wire cloth can be combined with the frame with metal rubber lining, or directly bonded on the frame.

Specification of Composite Frame Screen

Screen Model	Range of Mesh	Dimension (Width x Length)
HT - 1/1	20-325	585×1165mm
HT - 1/2	20-325	585×1165mm
HT - 2/1	20-325	635×1250mm
HT - 2/2	20-325	635×1250mm
HT - 3	20-325	610×660mm

Features of Composite Frame Screen

Every layer of wire cloth has different meshes, accurately and reasonably making screening more micromesh
High-strength composite frame screen and moderate tensional screening cloth form a reliable whole, greatly enhancing the tolerable flow
Rapid wedge tensioning devices make screen installation more convenient and save machine halt time for changing
Wire cloth is divided into several independent small cloths to prevent excessive expansion of local damage
Excellent high-strength composite frames enhance corrosion resistance, provide good shock absorption, and extend working life of screen
