Product Details:
Payment & Shipping Terms:
|
| Product Name: | LF4 Valve Body HT4000 Series Cryogenic Control Valve | DN: | 20~100 |
|---|---|---|---|
| Temperature: | -60~-250 | Allowable Leakage: | Level IV Level VI |
| Signal Range(KPa): | 20~100,40~200 | P N (M Pa): | 0.6 Mpa |
| High Light: | lf4 body cryogenic control valve,oxygen production industry cryogenic control valve |
||

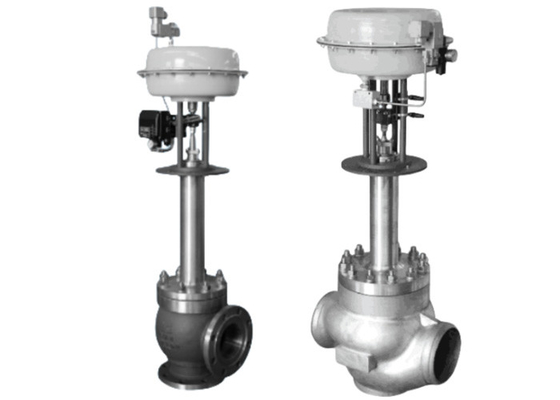

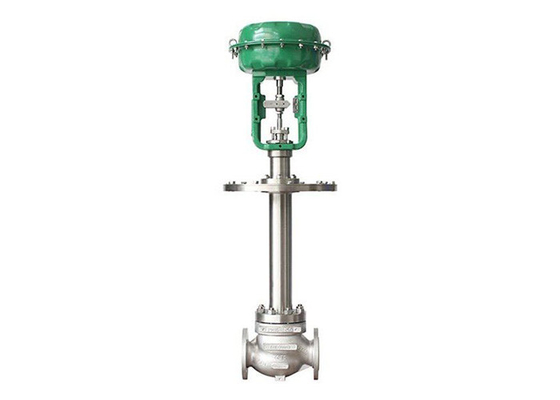

LF4 Valve Body HT4000 Series Cryogenic Control Valve For Oxygen Production Industry
Product Description
For different applications and types of installation of valve body, HT4000 series cryogenic control valve has two types (connecting plate and floating bushing) for your selection. It can work with pneumatic/electric actuator assemblies and is equipped with several optional accessories to meet the requirements of terminal control elements. It can be used in low-temperature flow process control system to realize two-position switch or continuous control of media.
Product Feature
HT4000 series cryogenic control valve is designed to weld on vacuum insulated pipe or install in cold box device, and widely used in the applications of media in low temperature process in the fields of metallurgy, oxygen manufacture, petroleum, liquefied natural gas and etc.
Dimensions Table
| (DN) | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | ||||
| Seat diameter(dn) | 10 | 12 | 15 | 20 | ||||||||
| D | 295 | 385 | 495 | |||||||||
| L | 75 | 85 | 110 | 160 | 170 | |||||||
| L1 | 75 | 85 | 110 | 150 | 160 | |||||||
| D₁ | φ20 | 中25 | 中32 | φ40 | φ50 | 中66 | φ82 | φ102 | ||||
| D₂ | 中25 | φ30 | φ37 | φ45 | 中55 | φ84 | φ90 | φ110 | ||||
|
H |
H1=521 | 966 | 982 | 991 | 1018 | |||||||
| H1=632 | 1271 | |||||||||||
| H1=714 | 1162 | 1183 | 1192 | 1217 | ||||||||
| H1=813 | 1461 | |||||||||||
| H1=923 | 1361 | 1421 | 1392 | 1432 | ||||||||
| H1=1050 | 1667 | |||||||||||
| n-d | 8-φ14 | 8-φ16 | 10-φ16 | 12-φ18 | ||||||||
| D₃ | 260 | 285 | 305 | 340 | 370 | 405 | 460 | |||||
| D₄ | 290 | 315 | 335 | 370 | 400 | 435 | 490 | |||||
| D₅ | 289 | 470 | ||||||||||
Product Display and Shipping
Huatao is committed to providing high-quality, reliable and innovative valve solutions to meet customer needs in various industrial fields. Huatao uses advanced processes and technologies in manufacturing to ensure that its products have excellent performance and reliability. The company has an experienced engineering team who have an in-depth understanding of the valve design and manufacturing process and always pay attention to the latest development trends in the industry. Huatao's engineers work closely with customers to custom design and manufacture highly customized control valves based on their specific requirements and application scenarios. Huatao's products are widely used in various industrial fields, including oil and gas, chemical industry, electric power, pharmaceuticals, water treatment, etc. Whether in fluid control, pressure regulation, temperature control or flow regulation, Huatao's valves can provide excellent performance and reliability to ensure the safe and efficient operation of industrial processes.
