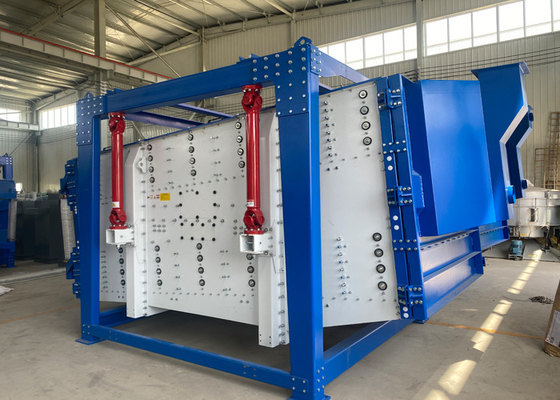

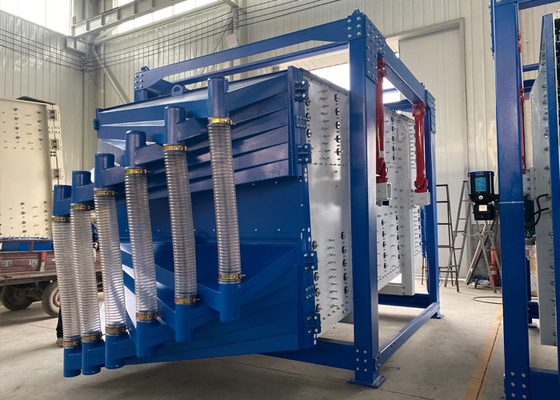

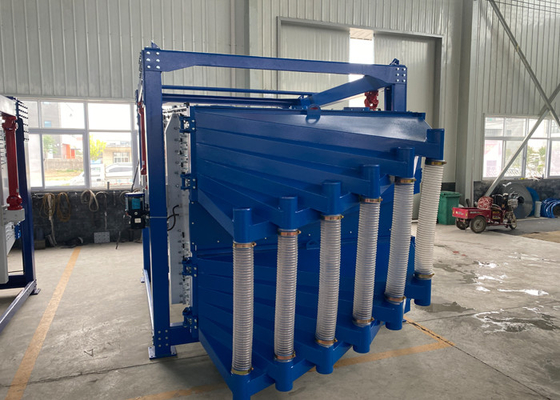

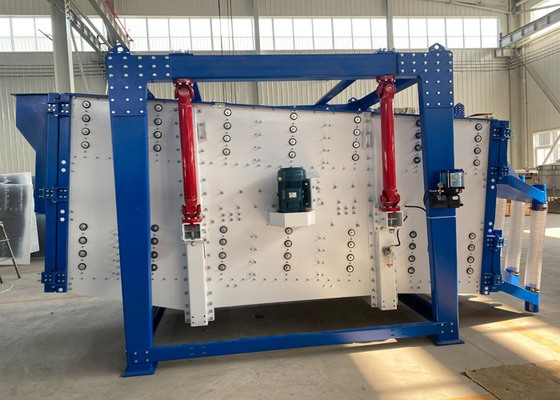

Self Cleaning Swing Vibrating Sifter Machine Square Gyratory Screen For Dry Silica Sand

Large Image : Self Cleaning Swing Vibrating Sifter Machine Square Gyratory Screen For Dry Silica Sand

Product Details:

Place of Origin:	China
Brand Name:	Huatao
Certification:	ISO
Model Number:	Square Gyratory Screen

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	7000-15000 USD/Set
Packaging Details:	Wooden Box / Standard Export Package
Delivery Time:	7-10 days after received payment
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	10000set/Year

Contact Now

Detailed Product Description

Name:	Square Gyratory Screen	Specification Of Screen Mesh:	1.5m*3.6m Or 2mx3.6m Or 2mx4m
Layer(S):	1~10 Layers	Power(KW):	4-11
Usage:	Mine Shaker, Experiments Shaker, Lightweight Fine Shaker	Machine Material:	Q235 Carbon Steel
Motor:	ABB Or Other	Bearing:	SKF Or Other
Screen Mesh Material:	SS304
Highlight:	self cleaning square vibrating screen , dry silica gyratory vibrating screen , self cleaning gyratory vibrating screen

Self-Cleaning Swing Sand Vibrating Sifter Machine Square Gyratory Screen For Dry Silica

Square Swing Sieve Description

The Self-Cleaning Swing Sand Vibrating Sifter Machine is a specialized piece of equipment designed for the efficient screening and separation of dry silica sand. It is also known as a Square Gyratory Screen due to its square-shaped sieve frame and gyratory motion.

The machine is equipped with a series of screens made of SS304, which are arranged in multiple decks within the sieve frame. Each deck has a specific mesh size, allowing for the separation of different particle sizes of dry silica sand.

Square Swing Sieve Features

It has the advantages ofreasonable design,simple structure,stable operation, fully sealed design,no dust pollution, anti-blocking holes,anti-sticking net and so on. Due to the adoption of the plane rotary motion, the dynamic-to-static ratio and dynamic load of the equipment are effectively reduced.

Square Swing Sieve Specification

Type	Layer	Power	Screen Inclination Angle	Turn Frequency
FYBS1236	1-6	4	5	260-300
FYBS1536	1-6	4.5	5	260-300
FYBS2036	1-6	7.5	5	260-300
2FYBS1536	2-10	5.5-7.5	5	260-300
2FYBS2036	2-10	7.5-11	5	260-300
4FYBS2036	4-8	7.5-11	5	260-300

Square Swing Sieve Application
Square Swing Screen is used for: oil fracturing sand,mechanism quartz sand, foundry sand,glass yarn,colored sand,mullite sand, cat litter, perlite, edible salt,etc.

Self Cleaning Swing Vibrating Sifter Machine Square Gyratory Screen For Dry Silica Sand 1
