Quartz Sand Gyratory Sifter Square Swing Vibrating Screen Separator Machine

Large Image : Quartz Sand Gyratory Sifter Square Swing Vibrating Screen Separator Machine

Product Details:

Place of Origin:	China
Brand Name:	Huatao
Certification:	ISO
Model Number:	Gyratory Sieve

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	20000 USD/Set
Packaging Details:	Wooden Box / Standard Export Package
Delivery Time:	7-10 days after received payment
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	10000set/Year

Contact Now

Detailed Product Description

Name:	Gyratory Sifter	Model:	HT1536
Screen Mesh Size:	1.5m Width X 3.6m Length	Screen Mesh Material:	SS304

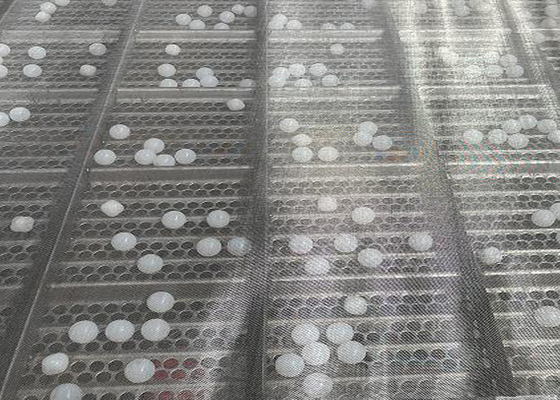

Cleaning Mesh Method:	Bouncing Ball	Screen Mesh Layer:	1-10layer
Machine Material:	Q235 Carbon Steel Or SS304 Or SS316 For Choose	Motor:	Abb Or Other
Bearing:	SKF Or Other	Bouncing Ball Material:	100% Pure Silicone
Highlight:	quartz sand gyratory vibration , 10 layers gyratory vibration , quartz sand square vibrating sieve machine

Quartz Sand Gyratory Sifter Square Swing Vibrating Screen Separator Machine

Square Swing Screen Description

The Quartz Sand Gyratory Sieve Square Swing Vibrating Screen Wood Powder Separator Machine is a versatile piece of equipment used for the screening and separation of various materials, including quartz sand and wood powder. It combines the features of a gyratory sieve and a square swing vibrating screen, offering efficient and precise results.

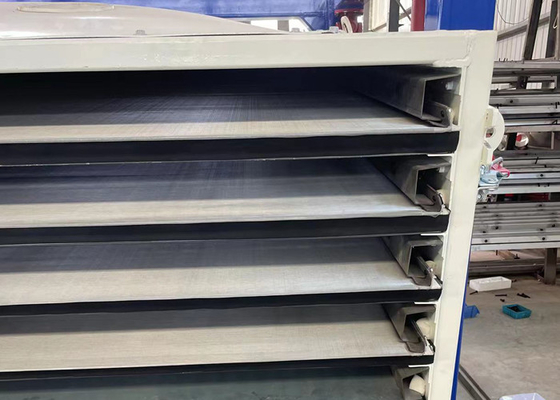

The machine features a square-shaped sieve frame that houses multiple layers of screens, typically made of stainless steel wire mesh or nylon mesh. These screens are strategically positioned to form several decks within the sieve frame. Each deck has a specific mesh size, allowing for the separation of different particle sizes of quartz sand and wood powder.

Square Swing Screen Features

It has the advantages ofreasonable design,simple structure,stable operation, fully sealed design,no dust pollution, anti-blocking holes,anti-sticking net and so on. Due to the adoption of the plane rotary motion, the dynamic-to-static ratio and dynamic load of the equipment are effectively reduced.

Square Swing Screen Specification

Type	Layer	Power	Screen Inclination Angle	Turn Frequency
FYBS1236	1-6	4	5	260-300
FYBS1536	1-6	4.5	5	260-300
FYBS2036	1-6	7.5	5	260-300
2FYBS1536	2-10	5.5-7.5	5	260-300
2FYBS2036	2-10	7.5-11	5	260-300
4FYBS2036	4-8	7.5-11	5	260-300

Square Swing Screen Application
Square Swing Screen is used for: oil fracturing sand,mechanism quartz sand, foundry sand,glass yarn,colored sand,mullite sand, cat litter, perlite, edible salt,etc.
