Square Gyratory Swing Screen Quartz Sand Sieving Machine For Fine Screening

Large Image : Square Gyratory Swing Screen Quartz Sand Sieving Machine For Fine Screening

Product Details:

Place of Origin:	China
Brand Name:	Huatao
Certification:	ISO
Model Number:	HT2036

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	20000 USD/Set
Packaging Details:	Wooden Box / Standard Export Package
Delivery Time:	7-10 days after received payment
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	10000set/Year

Contact Now

Detailed Product Description

Name:	Square Gyratory Swing Screen	Machine Material:	Carbon Steel/ Stainless Steel 304/316
Roation Frequency （r/min):	260 - 300	Screen Mesh Material:	SS304
Screen Mesh Layers:	1-10llayers	Screening Area:	7.2M2
Inclined Angle(°):	5	Screen Mesh Size:	2m Width X 3.6m Length
Highlight:	gyratory electric vibrating sieve machine , fine screening electric vibrating sieve machine , gyratory vibrating screen for fine screening

Square Gyratory Swing Screen Quartz Sand Sieving Machine For Fine Screening

Square Swing Screen Description

The Square Gyratory Swing Screen Quartz Sand Sieving Machine is a specialized piece of equipment designed for the fine screening and separation of quartz sand particles. It combines the features of a square gyratory screen and a swing screen, providing efficient and precise results for fine particle separation.

The machine features a square-shaped sieve frame that houses multiple layers of screens, typically made of stainless steel wire mesh or nylon mesh. These screens are strategically positioned to form several decks within the sieve frame. Each deck has a specific mesh size, allowing for the separation of different particle sizes of quartz sand.

Square Swing Screen Features

It has the advantages ofreasonable design,simple structure,stable operation, fully sealed design,no dust pollution, anti-blocking holes,anti-sticking net and so on. Due to the adoption of the plane rotary motion, the dynamic-to-static ratio and dynamic load of the equipment are effectively reduced.

Square Swing Screen Specification

Type	Layer	Power	Screen Inclination Angle	Turn Frequency (r/min)
FYBS1236	1-6	4	5	260-300
FYBS1536	1-6	4.5	5	260-300
FYBS2036	1-6	7.5	5	260-300
2FYBS1536	2-10	5.5-7.5	5	260-300
2FYBS2036	2-10	7.5-11	5	260-300
4FYBS2036	4-8	7.5-11	5	260-300

Square Swing Screen Application
Square Swing Screen is used for: oil fracturing sand,mechanism quartz sand, foundry sand,glass yarn,colored sand,mullite sand, cat litter, perlite, edible salt,etc.

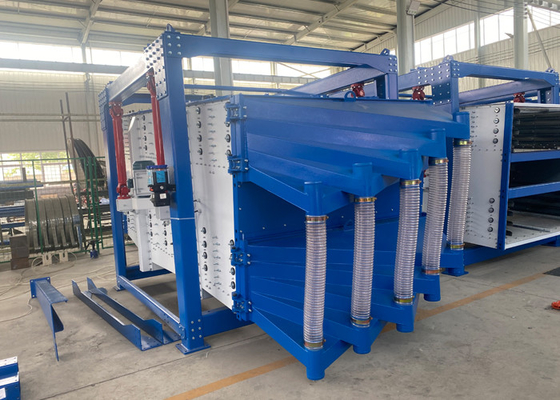

Square Gyratory Swing Screen Quartz Sand Sieving Machine For Fine Screening 1

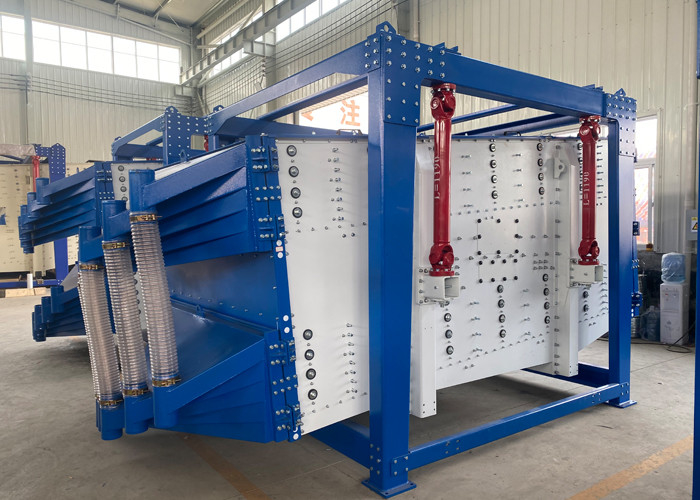

Square Gyratory Swing Screen Quartz Sand Sieving Machine For Fine Screening 2

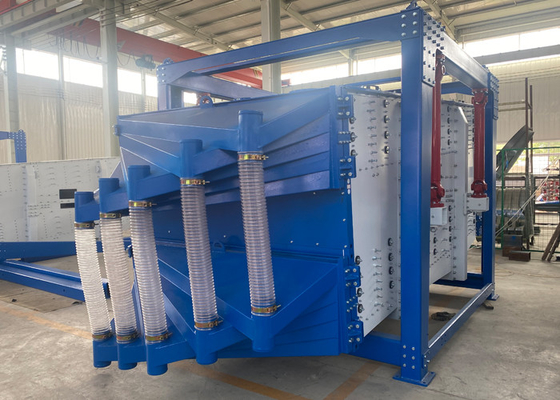

Square Gyratory Swing Screen Quartz Sand Sieving Machine For Fine Screening 3
