Multi Layer Electric Square Gyratory Vibrating Screen Swing Quartz Sand Screening Machine

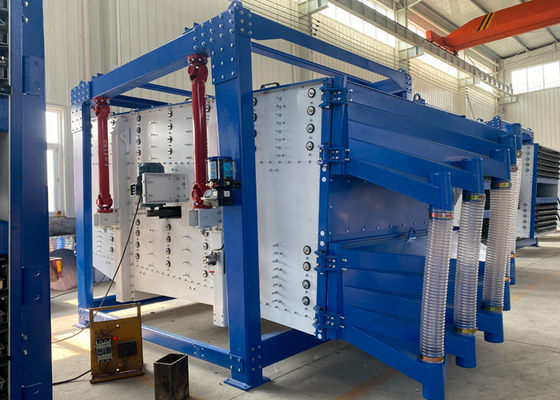

Large Image : Multi Layer Electric Square Gyratory Vibrating Screen Swing Quartz Sand Screening Machine

Product Details:

Place of Origin:	China
Brand Name:	Huatao
Certification:	ISO
Model Number:	Square Gyratory Vibrating Screen

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	5000-15000 USD/Set
Packaging Details:	Wooden Box / Standard Export Package
Delivery Time:	7-10 days after received payment
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	10000set/Year

Contact Now

Detailed Product Description

Name:	Square Gyratory Vibrating Screen	Material:	Carbon Steel/ Stainless Steel 304/316
Layer(S):	1~10 Layers	Roation Frequency（r/min):	260 - 300
Inclined Angle(°):	5	Cleaning Mesh Method:	Bouncing Ball
Bearing:	SKF Or Other	Motor:	Abb Or Other
Screen Mesh Material:	SS304	Bouncing Ball Material:	100% Pure Silicone
Highlight:	multi layer gyratory vibrating screen , electric gyratory vibrating screen , swing square vibrating screen

Multi-Layer Electric Square Gyratory Vibrating Screen Swing Quartz Sand Screening Machine

Square Swing Screen Description

The Multi-Layer Electric Square Gyratory Vibrating Screen Swing Quartz Sand Screening Machine is a specialized piece of equipment designed for the screening and separation of quartz sand particles. It utilizes multiple layers of screens and a gyratory motion to achieve efficient and precise screening results.

The machine features a square-shaped sieve frame that houses multiple layers of screens, typically made of stainless steel wire mesh. These screens are strategically positioned to form multiple decks within the sieve frame. Each deck has a specific mesh size, allowing for the separation of different particle sizes of quartz sand.

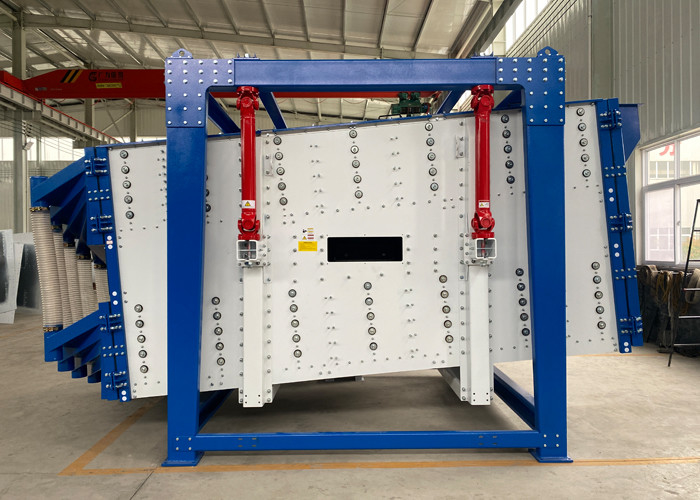

Multi Layer Electric Square Gyratory Vibrating Screen Swing Quartz Sand Screening Machine 0

Square Swing Screen Features

It has the advantages ofreasonable design,simple structure,stable operation, fully sealed design,no dust pollution, anti-blocking holes,anti-sticking net and so on. Due to the adoption of the plane rotary motion, the dynamic-to-static ratio and dynamic load of the equipment are effectively reduced.

Square Swing Screen Specification

Type	Layer	Power	Screen Inclination Angle	Turn Frequency
FYBS1236	1-6	4	5	260-300
FYBS1536	1-6	4.5	5	260-300
FYBS2036	1-6	7.5	5	260-300
2FYBS1536	2-10	5.5-7.5	5	260-300
2FYBS2036	2-10	7.5-11	5	260-300
4FYBS2036	4-8	7.5-11	5	260-300

Square Swing Screen Application
Square Swing Screen is used for: oil fracturing sand,mechanism quartz sand, foundry sand,glass yarn,colored sand,mullite sand, cat litter, perlite, edible salt,etc.

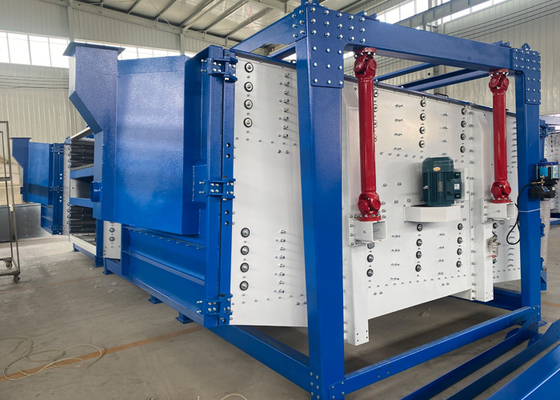

Multi Layer Electric Square Gyratory Vibrating Screen Swing Quartz Sand Screening Machine 1
