Product Details:
Payment & Shipping Terms:
|
| Capacity: | 1000-5000PCS/Hour | Transport Package: | Full Container |
|---|---|---|---|
| Mold Material: | PlasticAluminiumor | Voltage: | 220v/380v |
| Raw Material: | Waste Paper And Cardboard | Shape: | Can Customize |
| Highlight: | Customizable Egg Tray Forming Machine,5000PCS/Hour Egg Tray Forming Machine,Customizable Paper Pulp Molding Machine |
||

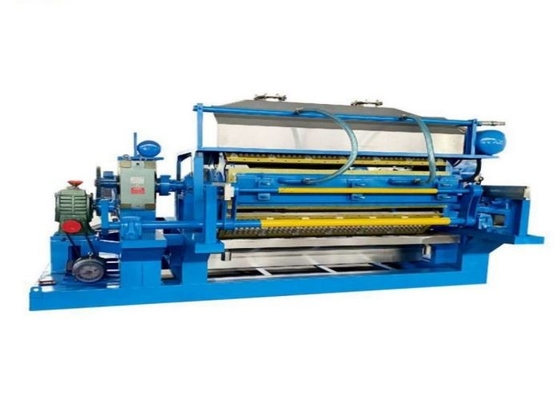

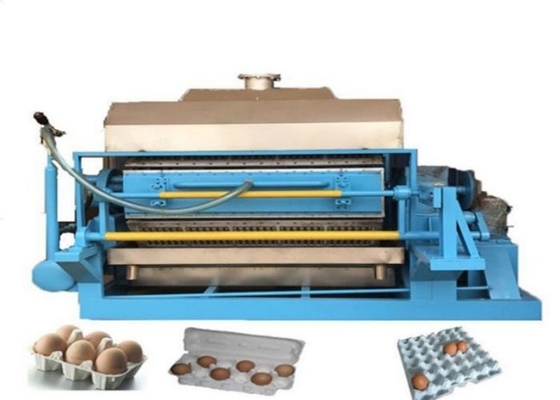

Egg Tray Machine Description
An Egg Tray Forming Machine is a type of industrial machinery used to produce egg trays or egg cartons. It is commonly used in the egg production and packaging industry. The machine is designed to efficiently and automatically mold pulp material into specific shapes to hold and protect eggs during transportation and storage.
The process of egg tray formation typically involves the following steps:
Pulp Preparation: The machine utilizes recycled paper or pulp material as the raw material. The pulp is first mixed with water in a pulp preparation system to create a slurry of consistent consistency.
Molding: The slurry is transferred to the egg tray forming machine, where it is poured into molds or trays in the desired shape and size. The machine uses vacuum technology to remove excess water from the slurry and form the pulp into the desired shape.
Drying: After the trays are formed, they are transferred to a drying system. This system uses heat and airflow to remove the remaining moisture from the trays, making them rigid and ready for use.
Packaging: Once the trays are dried, they can be stacked, bundled, or packaged for shipment to egg producers or packaging facilities
Egg Tray Machine Tableware Paremeters
| Model | HT0301 | HT0401 | HT0403 | HT0404 | HT0408 | HT0508 | HT0608 | |
| Capacity (pieces/h) | 800-1000 | 1200-1500 | 2000 | 2200-2500 | 3500-4500 | 5000-5500 | 6000-6500 | |
| Forming Mould Quantity | 3 | 4 | 12 | 16 | 32 | 40 | 48 | |
| Total Power (kw) | 33 | 42 | 53.7 | 82 | 127 | 161 | 223 | |
| Electricity Consumption (kw/h) | 23.1 | 29.4 | 37.59 | 57.4 | 89 | 113 | 156 | |
| Labor Force | 3-5 | 4-6 | 4-6 | 4-6 | 4-6 | 5-7 | 6-8 | |
| Material Consumption (kg/h) | Paper | 85 | 102 | 170 | 212 | 298 | 425 | 520 |
| Water | 255 | 306 | 510 | 636 | 1147 | 1275 | 1560 | |
| Fuel Consumption | Coal (kg) | 50 | 60 | 83 | 104 | 125 | 208 | 208 |
| Natural Gas (m3) | 22-32 | 26-36 | 37-47 | 46-56 | 56-66 | 92-103 |
92-103
|
|
Packaging
1. Out package: Standard marine export plwywood cases;
2. Innner package:Stretch film and plastic film for humidity;
3. Customized according to your requirement.
Shipping
Port: Tianjin, Qingdao, Shanghai or other ports according to your requirements.
Sea freight: FOB/CIF/DDU quotation are all available.
Transport method: By logistics; by automobile; by train; by shipping; by air etc.
