Mirror Surface Chill Roller For BOPP And BOPET Film Production Line

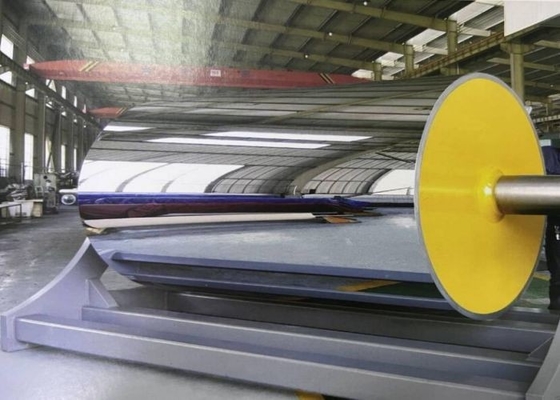

Large Image : Mirror Surface Chill Roller For BOPP And BOPET Film Production Line

Product Details:

Place of Origin:	CHINA
Brand Name:	HTL
Model Number:	Chill Roller

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	10000-80000 USD/ PC
Packaging Details:	Standard package
Delivery Time:	3-5 Month
Payment Terms:	L/C, D/A, T/T, Western Union,
Supply Ability:	20 pcs per month

Contact Now

Detailed Product Description

Product Name:	Chill Roller	Application:	Plastic Film Production
Plastic Film Type:	BOPP BOPET BOPA CPP	Material:	S355, Q345B
Warranty:	12 Month	After-sales Service:	Online Support, Video Technical Support
Customization:	Available	Surface Treatment:	Mirror Surface
Highlight:	BOPP Film Chill Roller , BOPET Film Chill Roller , Mirror Surface Chill Roller

Chill Roller for BOPP/BOPET film production line

Chill roller is widely used in master casting forming of BOPP, BOPET, BOPA, BOPS, BOPI biaxial oriented stretching line and longitudinal stretching line. The chill roller with special inner circulation channle is designed to improve the heat conversion efficiency and temperature control accuracy. After replacing with this kind of technically updated chill roller, the casting effeciency will rise by 20%-30%.

Casting system is a step of of vital importance in film stretching line. The finish film quality after stretching will be finally based on master precsion of casting system. This chill roller has already been used a lot in high level stretching line imported from Europe and its performance in practical application obtains unanimous approval and favorable comment from customers.

Product Parameters

Variable diameter alternating spiral flow channel
Surface temperature precision±0.5ºC
High efficiency heat exchange technology performance
High precision dynamic balancing correction
High quality mirror face processing
Anti-corrosion treatment of spiral flow channel
Roller cylindricity, concentricity both ≤0.005mm;
Roller surface hard chromium plated
Roller surface treatment: mirror polished, super finishing mirror, matt, mist and anti adhesive surface;
Overall deformation: < 0.05 mm at full load

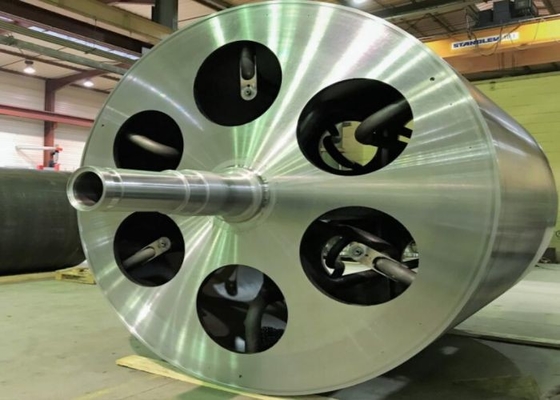

Shell	Double-shell construction
Flow-system	channels between inner and outer tube separated with welded leading spirals
Roller Inside treatment	anti rust painting
Journal-construction	Shrinked and welded side disk and shaft made of S355
Chrome-coating	>= 120 ym finished layer thickness
Surface roughness Rmax	< = 0.3 μm
TIR	≤0.03 mm
Cylinder form	≤0.03 mm
Balancing type	Static balancing
