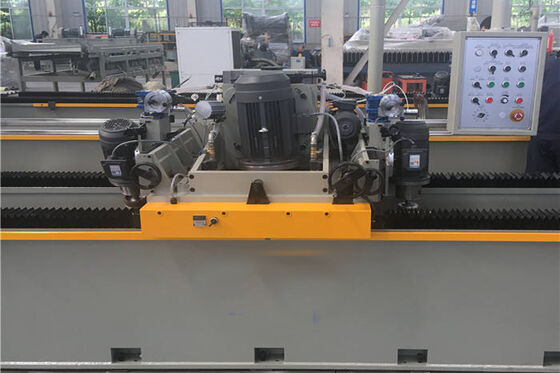

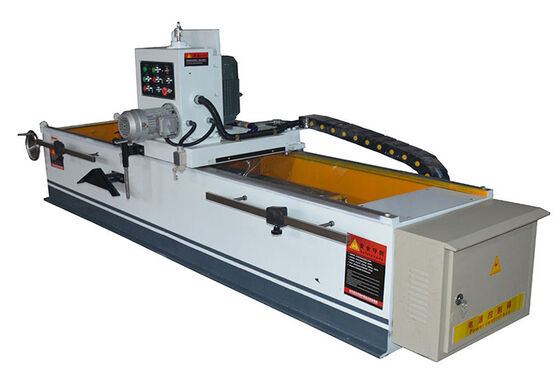

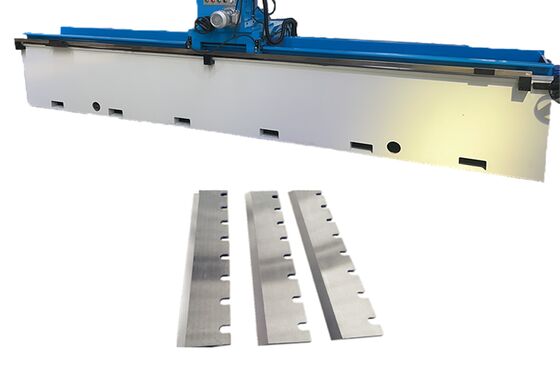

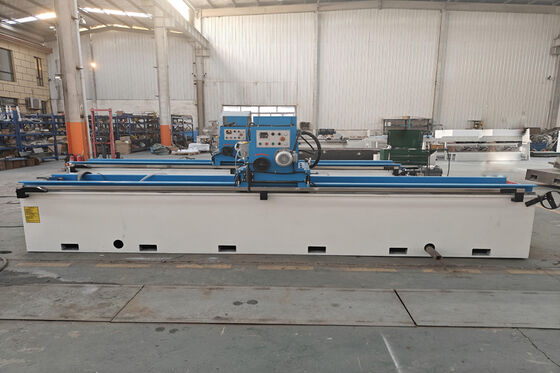

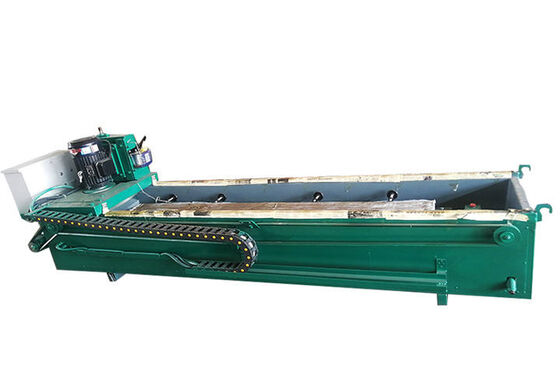

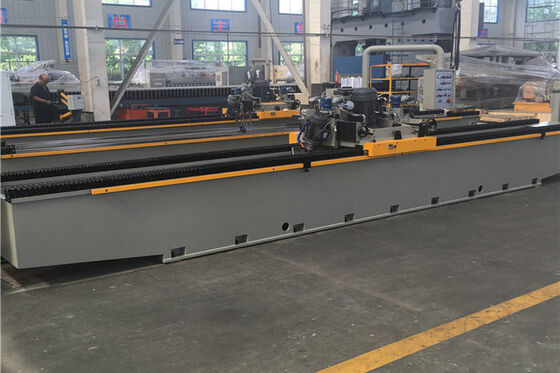

High Quality Blade Sharpener Machine For The Corrugated Cardboard Blade

Large Image : High Quality Blade Sharpener Machine For The Corrugated Cardboard Blade

Product Details:

Place of Origin:	China
Brand Name:	HUATAO
Certification:	CE,ISO
Model Number:	HT-Sharpeper21

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	1000-20000 usd/set
Packaging Details:	Wooden Box
Delivery Time:	15-30days
Payment Terms:	Western Union, L/C, T/T
Supply Ability:	10 set / month

Contact Now

Detailed Product Description

Product Name:	HT-Blade Sharpener	Grinding Wheel:	20010032mm
Grinding Speed:	17M/MIN	Voltage:	380V
Frequency:	50Hz	Working Length:	1600mm
Application:	Blade Sharpen	Tolerance:	≤0.05mm
Highlight:	ultra high performance graphite electrode , demanding industrial furnaces graphite electrode , Industrial Furnaces uhp graphite electrode

High Quality Blade Sharpener Machine For The Corrugated Cardboard Blade

Blade sharpener Machine Description:

This knife grinder machine is mainly used in straight blade cutting tool in different angles, suitable for all kinds of cutter tools of plywood, furniture, printing, textile industry etc. It is also used to the oblique opening of high speed tool steel.

It is also used to the oblique opening of high speed tool steel. The machine tools consists of five parts:Machine bodyframe,Sliding plate,Motor,Grinding head,Electrical parts.
Each component has compact structure,rational and beautiful layout can make sure the same height and weight and express its unique advantages, ideal choice for Veneer Plywood Factory and straight blade knives manufacturers.

Blade Sharpener Machine Specification:

KNIFE GRINDING MACHINE
Max grinding length	1600mm
Working-table width	550*180(200)mm
Grinding head motor	4kw
Lifting motor	0.55kw
Wheel rotation rate	1400r/min
Speed of sliding plate	Variable speed
Grinding wheel size	Φ200Φ100Φ32mm
Work voltage	380V
Adjustable angel of work table	±90°
Driving method of grinding head	Transmission
Total weight	1800kg

MAIN FEATURES OF BLADE SHARPENER:

1) The main parts of the machine are cast of steel and welded as little as possible due to the contact with water during machine working.

2)The worktable use the electromagnetic chuck. And very convenience to clamp knife. The worktable is easy to adjust the angle by worm gear.

3) The rail use linear guide and ensure the steady horizontal movement of grinding head .

4) The machine is easy to operate, high precision, save the time of Grinding knife in the factory, and improve the production efficiency in the factory.

High Quality Blade Sharpener Machine For The Corrugated Cardboard Blade 2
