500mm - 900mm Furnace Graphite Electrode Ultra High Performance UHP

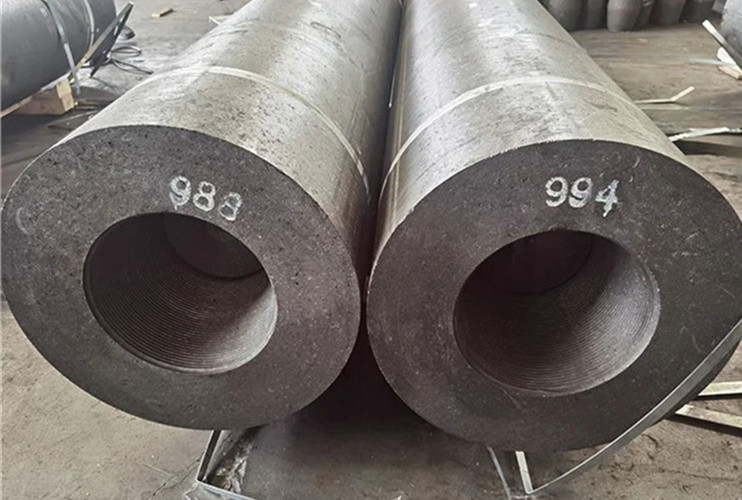

Large Image : 500mm - 900mm Furnace Graphite Electrode Ultra High Performance UHP

Product Details:

Place of Origin:	CHINA
Brand Name:	HUATAO
Certification:	CE, ISO
Model Number:	HTGE003

Payment & Shipping Terms:

Minimum Order Quantity:	20 Tons
Price:	1450-3000USD/ton
Packaging Details:	Wooden Pallet
Delivery Time:	15-30days
Payment Terms:	T/T, Western Union, MoneyGram, L/C
Supply Ability:	300tons per month

Contact Now

Detailed Product Description

Product Name:	Ultra-High Performance UHP Graphite Electrodes For Demanding Industrial Furnaces	Raw Material:	Premium Needle Coke With 99.9% Purity And High-quality Coal Tar Pitch
Current Density:	Exceeds 25A/cm², Ideal For Intense Power Applications	Ash Content:	≤0.2%, Ensuring Minimal Impurity Introduction
Thermal Conductivity:	Exceptionally High, Enabling Rapid Heat Dissipation	Mechanical Rigidity:	High-strength Structure Resists Breakage Under Heavy Loads
Oxidation Resistance:	Advanced Multi-layer Anti-oxidation Coating	Electrical Resistivity:	Ultra-low For Optimized Current Flow
Diameter Range:	500mm - 900mm, With Customizable Lengths Upon Request	Origin:	China
Highlight:	500mm furnace graphite electrode , UHP furnace graphite electrode , 900mm graphite electrode uhp

Ultra-High Performance UHP Graphite Electrodes For Demanding Industrial Furnaces

Description For Ultra-High Performance UHP Graphite Electrodes For Demanding Industrial Furnaces:

UHP Graphite Electrodes, or Ultra-High Power Graphite Electrodes, represent the pinnacle of electrode technology, specifically engineered for the most demanding ultra-high power electric arc furnaces in modern metallurgy. These electrodes serve as the backbone for steel mills, ferroalloy plants, and other heavy industries, where efficient and reliable melting processes are crucial.

Manufactured from the finest needle coke with a purity level of 99.9% and top-grade coal tar pitch, UHP Graphite Electrodes are the result of a meticulous production process. Every step, from raw material selection to the final machining, adheres to the strictest quality standards, guaranteeing electrodes of exceptional performance.

The ability of UHP Graphite Electrodes to handle current densities exceeding 25A/cm² sets them apart. This high current-carrying capacity allows for faster melting speeds and shorter melting times, significantly increasing the productivity of electric arc furnaces. With an ash content of ≤0.2%, they minimize the introduction of impurities during the smelting process, ensuring the production of high-quality steel and alloys.

Crafted for extreme durability and maximum energy efficiency, UHP Graphite Electrodes deliver unrivaled performance in ultra-high power electric arc furnaces, slashing production costs and boosting output.

Raphite Electrode Size&Tolerance
Name		Eactroda Diarmetar		Eecros Length
Damter x Length		Maximum	Minimum	Maximum
inch	mm	mm	mm	mm	mm
14×60	350×1500	357	352	1550	1400
14×72	350×1800			1875	1700
14×96	350×2400			2475	2275
16×60	400×1500	409	403	1550	1400
16×72	400×1800			1875	1700
16×96	400×2400			2475	2275
18×72	450×1800	460	454	1875	1700
18×96	450×2400			2475	2275
18×110	450×2700			2850	2550
20×72	500×1800	511	505	1875	1700
20×84	500×2100			2175	1975
20×96	500×2400			2475	2275
20×110	500×2700			2850	2550
22×84	550×2100	562	556	2175	1975
22×96	550×2400	562	556	2475	2275
24×84	600×2100	613	607	2175	1975
24×96	600×2400			2475	2275
24×110	600×2700			2850	2550
26×110	650×2700	663	657	2850	2550
28×110	700×2700	714	708	2850	2550
