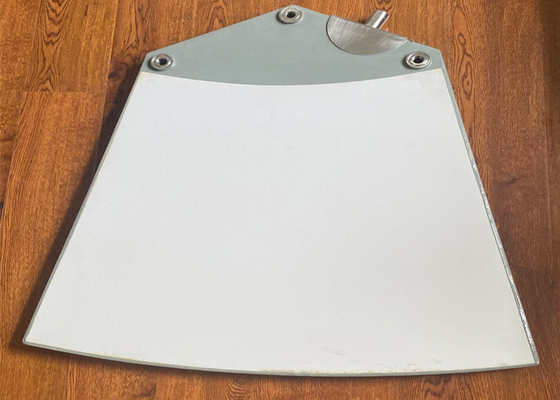

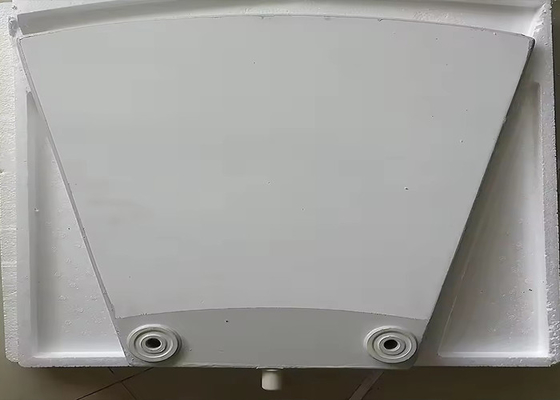

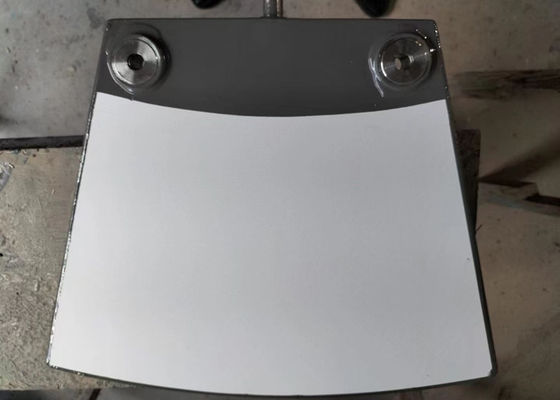

12M2 Ceramic Filter Plate For Mineral Soild Liquid Separation

Large Image : 12M2 Ceramic Filter Plate For Mineral Soild Liquid Separation

Product Details:

Place of Origin:	Made in China
Brand Name:	HUATAO
Model Number:	HT-Ceramic filter plate

Payment & Shipping Terms:

Minimum Order Quantity:	1Pc
Price:	USD 60-150 per Piece
Packaging Details:	wooden box
Delivery Time:	10-20 working days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	5000Pcs/Month

Contact Now

Detailed Product Description

Material:	White Corundum Or Brown Corundum	Open Porosity:	40% - 90%
Pore Size:	0.25 Microns To 90 Microns	Dimensions:	1/12 To 8/12 Square Meter
Filter Fineness:	0.85µm ～5µm	Filtration Area:	1～12m2
Highlight:	12M2 Ceramic Filter Plate , Soild Liquid Separation Ceramic Filter Plate , Mineral Soild Liquid Separation Plate

12M2 Ceramic Filter Plate For Mineral Solid Liquid Separation

Product Specifications

Attribute	Value
Material	White Corundum or Brown Corundum
Open porosity	40% - 90%
Pore size	0.25 microns to 90 microns
Dimensions	1/12 to 8/12 square meter
Filter fineness	0.85µm to 5µm
Filtration Area	1～12m²

Product Description

Our ceramic filter plates are designed for use in industrial filtration machines, offering superior solid-liquid separation for mineral processing applications.

Key Features

Available in multiple sizes: 1m², 2m², 3m², 4m², 5m², 6m², 8m², and 12m²
Selectable filter fineness options: 0.85µm, 1.25µm, 2µm, 5µm
High-performance filtration for demanding industrial applications

Applications

Our ceramic filter plates are widely used for:

Iron, zinc, sulfur, copper, nickel, molybdenum, lead, tungsten, manganese, vanadium, gold, and aluminum concentrates
Non-metallic concentrates filtration and dewatering
Various tailings processing

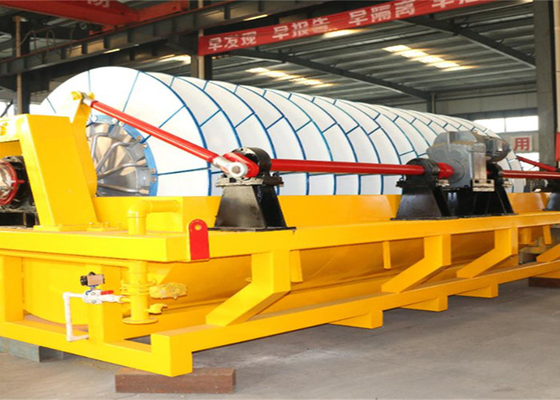

Compatible Filter Machines

Our ceramic filter plates are suitable for various filter machines including:

CDF, VDFK, СС, TT, ТС, KS, HTG, CEC and other similar models.
