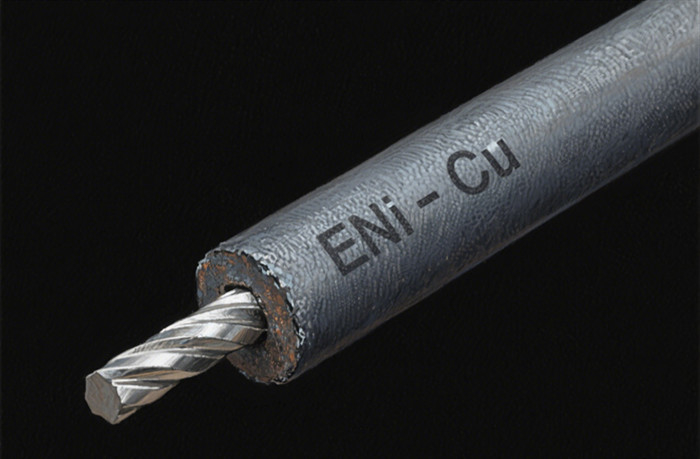

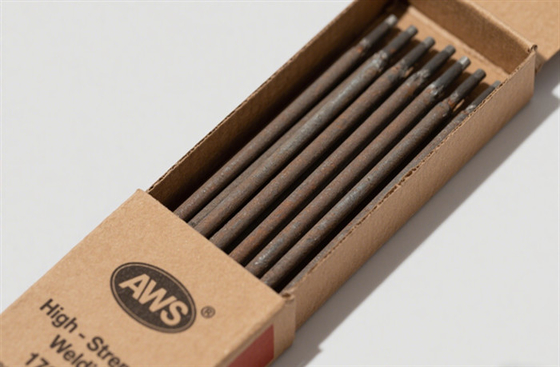

Cast Iron Welding Electrodes Crack Resistant Repair For Machinery Automotive

Large Image : Cast Iron Welding Electrodes Crack Resistant Repair For Machinery Automotive

Product Details:

Place of Origin:	CHINA
Brand Name:	HUATAO
Certification:	AWS A5.4 and ISO 3581-A
Model Number:	EZC, EZNi, EZNiFe, EZNiCu, EZV etc

Payment & Shipping Terms:

Minimum Order Quantity:	1carton
Price:	5USD - 10 USD per carton
Packaging Details:	carton box
Delivery Time:	15-30days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500Tons per Month

Contact Now

Detailed Product Description

Product Name:	Cast Iron Welding Electrodes	Material:	Cast Iron
Diameter - Value:	2.0mm, 2.5mm, 3.2mm, 4.0mm, 5.0mm (standard Sizes For Different Welding Thicknesses)	Coating Type:	Graphite-based (for High Carbon Content), Titania-calcium, Low-hydrogen, Or Nickel-alloyed (varies By Model, E.g., EZNi Uses Nickel-rich Coating For Crack Resistance)
Deposited Metal C Content:	EZC: 3.0–4.0%, EZNi: ≤0.1%, EZNiFe: ≤0.15% (carbon Affects Hardness And Weldability; Lower Carbon In Nickel-based Electrodes Reduces Cracking Risk)	Deposited Metal Ni Content:	EZC: 0%, EZNi: ≥90%, EZNiFe: 45–60% (nickel Enhances Ductility And Compatibility With Cast Iron)
Tensile Strength:	EZNiFe: 300–400 MPa, EZNi: ≥290 MPa (measures Weld Joint Strength Under Tension)	Elongation:	EZNiFe: ≥10%, EZNi: ≥15% (percentage Of Lengthwise Deformation Before Fracture, Indicating Weld Ductility)
Impact Toughness:	EZNiFe: ≥27 J At -20°C (resistance To Sudden Loading; Critical For Dynamic Applications)	Applicable Welding Positions:	Flat, Vertical, Horizontal, Overhead (most Nickel-based Electrodes Support All-position Welding; Iron-based Electrodes May Be Limited To Flat/horizontal Positions)
Highlight:	Automotive Cast Iron Welding Electrodes , Crack Resistant Cast Iron Welding Electrodes , Machinery Cast Iron Welding Electrodes

Cast Iron Welding Electrodes For Crack-Resistant Repair For Machinery & Automotive

Description For Cast Iron Welding Electrodes For Crack-Resistant Repair For Machinery & Automotive:

Welding cast iron is like performing surgery on brittle bone—one wrong move and the whole piece cracks. That’s why mechanics from Detroit diesel shops to German foundries swear by our nickel-based electrodes. Unlike generic rods, these are formulated to handle gray iron, ductile iron, and even malleable iron without preheating (yes, you read that right). Whether it’s a vintage tractor engine block or a broken pump housing, these rods stop cracks dead in their tracks.

Sizes & Packaging:

Diameters: 2.5mm (delicate repairs), 3.2mm (general use), 4.0mm (heavy sections).

Packaging: 10-rod packs (hobbyists), 5kg vacuum-sealed cans (industrial).

Performance Metrics:

Tensile Strength: 70,000 PSI (483 MPa)

Operating Temp: -40°C to 400°C (-40°F to 752°F)

Diffusible Hydrogen: <4ml/100g (prevents cold cracking)

Cast Iron Welding Electrodes Crack Resistant Repair For Machinery Automotive 0

Cast Iron Welding Electrodes Crack Resistant Repair For Machinery Automotive 1

Cast Iron Welding Electrodes Crack Resistant Repair For Machinery Automotive 2

Cast Iron Welding Electrodes Crack Resistant Repair For Machinery Automotive 3

Cast Iron Welding Electrodes Crack Resistant Repair For Machinery Automotive 4
