High Efficient Tungsten Carbide Corrugating Roller with Micro Hardness HV900-1250 and Coating Thickness 0.06-0.07mm

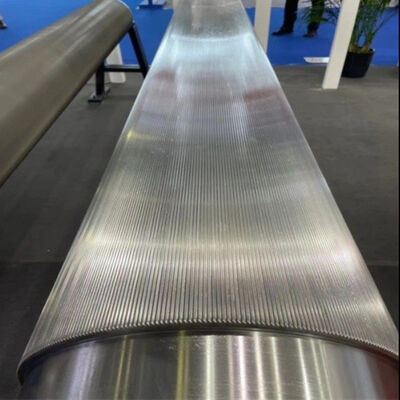

Large Image : High Efficient Tungsten Carbide Corrugating Roller with Micro Hardness HV900-1250 and Coating Thickness 0.06-0.07mm

Product Details:

Place of Origin:	CHINA
Brand Name:	HUATAO
Certification:	ISO
Model Number:	CORRUGATED ROLLER

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	2000USD/pc-5000USD/pc
Packaging Details:	Wooden Box
Delivery Time:	5-8 Weeks
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	100 PCS/Year

Contact Now

Detailed Product Description

Features:	Coating, Embossing	Product Name:	Tungsten Carbide Corrugating Roller High Efficient High Precision Grinding
Key Words:	Corrugated Roller, Corrugating Roller, Single Facer Roller	Coating Thickness:	0.06 And 0.07mm Tungsten Coating Thickness
Material:	Special 48CrMo Alloy Steel Fine Forgings	Surface Plating:	Micro Hardness HV900-1250
Combination Hardness:	>75MPa	Hardness:	>HRC58
Highlight:	Tungsten carbide corrugating roller , High efficiency industrial roller , Corrugating roller with HV900-1250 hardness

Tungsten Carbide Corrugating Roller - High Efficiency & Precision Grinding

Product Description

Our tungsten carbide corrugating roller combines advanced manufacturing technology with high precision grinding and carbide-tungsten coating, significantly extending service life while maintaining economic feasibility in production.

Key Features

Constructed from 48CrMo alloy steel forgings for superior strength
Medium frequency quenching achieves hardness exceeding HRC60 with 7mm depth
Utilizes imported tungsten carbide powder and Praxair JP8000 HVOF system
Abrasion-resistant tungsten carbide coating (50-60 micrometer thickness)
3x longer lifespan than chrome-plated rolls at less than twice the cost
Rigorous quality control throughout production with ISO9001 certification

Technical Specifications

Product Name	Corrugating Rolls
Material	Special 48CrMo alloy steel fine forgings
Hardness	HRC58
Coating Thickness	0.06-0.07mm Tungsten Coating
Surface Plating	Micro hardness HV900-1250
Combination Hardness	>75MPa
Visible Optical Porosity	<1%
Quenching Layer Depth	5-7mm

About Huatao Group

Founded in 2008, Huatao Group is a leading manufacturer of industrial rollers with over 15 years of experience serving the paper, corrugated board, rubber, plastic, and nonwoven fabric industries.

Our Product Range

Paper Industry: Forming rollers, vacuum couch rollers, dandy rollers, press rollers, dryer cylinders, and more
Plastic & Rubber: Chill rollers, MDO rollers, corona treatment rollers, carbon fiber rollers, and coating drums
Nonwoven Fabric: Cylinder rollers, doffer rollers, embossing rollers, and cooling rollers

With a commitment to innovation and quality, our products are exported to over 96 countries. We understand each customer's unique requirements and match them with the optimal manufacturing solution from our network of specialized factories. Our goal is to provide products that give customers complete confidence in their performance and reliability.
