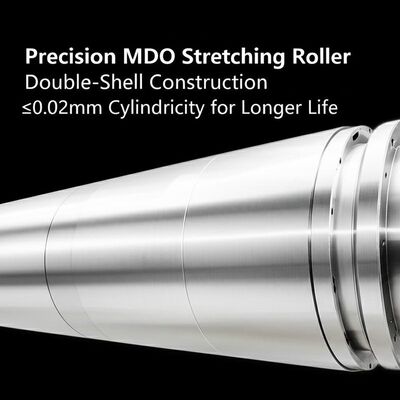

Precision MDO Stretching Roller with Double-shell Construction and ≤0.02mm Cylindricity for Longer Life

Precision MDO Stretching Roller with Double-shell Construction and ≤0.02mm Cylindricity for Longer Life

Large Image :  Precision MDO Stretching Roller with Double-shell Construction and ≤0.02mm Cylindricity for Longer Life

Product Details:
Place of Origin: CHINA
Brand Name: HTL
Certification: ISO
Model Number: TEFLOK COATED MDO STRETCHING ROLL
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: 2000USD/pc-5000USD/pc
Packaging Details: Wooden Box
Delivery Time: 5-8 Weeks
Payment Terms: L/C,T/T,Western Union
Supply Ability: 100 PCS/Year
Detailed Product Description
Product Name: Innovative Teflok Coated MDO Stretching Roller More Longer Life Key Words: MDO Stretching Roller, Stretch Roller, Heating Roller
Flow-System: Flow Channels Between Inner And Outer Tube Separated With Welded Leading Spirals Disc/Shaft: Shrinked And Welded Shafts And Side Discs From Q345B
Shell: Double-shell Construction HS Code: 84779000
Out Of Roundness: ≤0.02mm Cylindricity: ≤0.02mm
Highlight:

Precision MDO industrial roller

,

Double-shell construction roller

,

High cylindricity industrial roller

Innovative Teflok Coated MDO Stretching Heating Roller More Longer Life
Teflok Coated MDO Stretching Roller Description

Teflok Coated MDO (Machine Direction Orientation) Stretching Roller is a specialized tool used in the film stretching process. It is designed to provide smooth and uniform stretching of films, improving their mechanical properties and surface characteristics. The Teflok coating on the roller surface prevents adhesion and sticking of the film, ensuring a high-quality stretching process.

Teflok Coated MDO Stretching Roller Features
  • Teflok Coating: Non-stick material with excellent release properties and resistance to high temperatures and chemicals.
  • MDO (Machine Direction Orientation): Designed for controlled film stretching to improve material properties.
  • Smooth Surface: Low-friction surface allows film to move smoothly without sticking or damage.
  • Heat Resistance: Withstands high temperatures during film stretching without degradation.
  • Chemical Resistance: Protects roller from corrosive substances, ensuring longevity.
  • Anti-Static Properties: Reduces static electricity buildup, minimizing film damage risk.
Teflok Coated MDO Stretching Roller Benefits
  • Improved Film Handling: Reduces risk of wrinkles, tears, or defects during stretching.
  • Enhanced Release Properties: Prevents film sticking and ensures smooth release.
  • Consistent Stretching: Delivers uniform, reliable stretching results.
  • Longevity and Durability: Resistant to wear, chemicals, and high temperatures.
  • Easy Maintenance: Non-stick properties prevent residue buildup.
Teflok Coated MDO Stretching Roller Technical Data Sheet
Component Specification
Shell Double-shell construction
Disc/Shaft Shrinked and welded shafts and side discs from Q345B
Flow-system Flow channels between inner and outer tube separated with welded leading spirals
Surface coating Teflok / ceramic / chroming / tungsten carbide
Teflok Coated MDO Stretching Roller in operation
About HTL Group

Founded in 2008, HTL Group is a professional supplier of various rollers for paper, corrugated board, rubber & plastic, and nonwoven fabric industries with over 15 years of experience.

Our Product Range
  • Paper Industry: Forming roller, vacuum couch roller, dandy roller, press roller, dryer cylinder, and more.
  • Plastic & Rubber: Chill roller, MDO rollers, cooling roller, corona treater roller, and various specialized rollers.
  • Nonwoven Fabric: Cylinder roller, doffer roller, carbon fiber guide roller, embossing roller, and more.

With a strong commitment to innovation and customer satisfaction, HTL Group has become a trusted provider with products exported to over 96 countries. We understand unique customer requirements and match them with superior quality products from our network of domestic factories.
