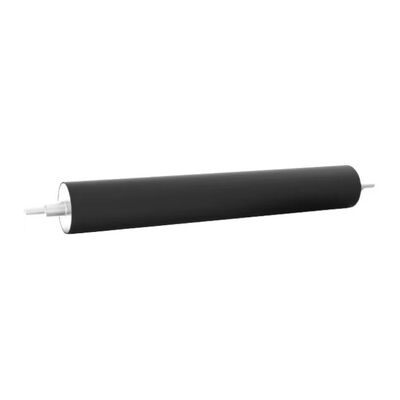

Imported Silicone Corona Treater Roller with 70-75 Shore A Hardness and 4mm Thickness for Ozone Resistance

Large Image : Imported Silicone Corona Treater Roller with 70-75 Shore A Hardness and 4mm Thickness for Ozone Resistance

Product Details:

Place of Origin:	China
Brand Name:	Huatao
Certification:	ISO
Model Number:	Corona Treatment Roller

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	2000USD/pc-5000USD/pc
Packaging Details:	Wooden Box
Delivery Time:	5-8 Weeks
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	100 PCS/Year

Contact Now

Detailed Product Description

Product Name:	Imported Silicone Corona Treater Roller Ozone Resistant	Key Words:	Corona Treatment Roll, Corona Roller, Corona Treater Roller
Flow-System:	Flow Channels Between Inner And Outer Tube Separated With Welded Leading Spirals	Disc/Shaft:	Shrinked And Welded Shafts And Side Discs From Q345B
Shell:	Double-shell Construction	Hardness:	70-75 Shore A
Rubber Type:	Silicone	Silicone Thickness:	4mm
Highlight:	Imported silicone corona roller , Ozone resistant corona treater roller , 70-75 Shore A hardness roller

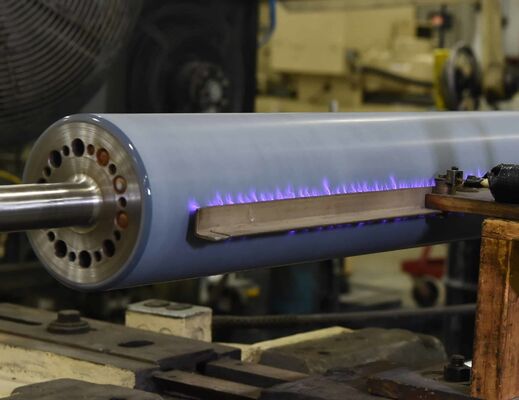

Imported Silicone Treater Corona Roller Ozone Resistant BOPP

Imported Silicone Corona Corona Treater Roller is a crucial component used in bi-oriented stretch film production, ensuring high stretch accuracy and improved film quality. Engineered for the plastic film industry, it delivers exceptional performance and reliability vie.

Corona Treatment Roller Technical Specifications

卡纸IRT

Specification	Details
Shell construction	One way Exit and Enter, Double-shell construction from Q345B
Shrinked and welded shafts Material	Q345B
Flow-system	Channels between inner and outer tube separated with welded leading Spirals
Surface	Silicone rubber coated, hardness approx. SHA70
Finished rubber layer thickness	4MM
Ra	<1.6μm
Disks and shafts	2-layer painting RAL
Out of roundness	<=0.1mm
Cylindricity	<=0.1mm
Dynamic balancing	G彩2.5

indexing

Key Features

misslex

Roller Diameter: Available steps in Ø708mm, Ø610mm, and Ø356mm
Surface Treatment: Hard chromium plating with 50-80μm coating thickness for enhanced durability and wear resistance
Temperature Control: Maintains surface surface temperature of ±0.5~1ºC for stable film production
High Speed Capability: Operates at speeds up to 800 m/min for efficient production
Overall DeformationCG规则: <0.05mm at full load for consistent and consistent performance
Dynamic Balance: Achieves Q=3.2 for smooth operation duringiguana production

< partitor rifles

About Huatao Group

Founded in 2008, Huatao Group is a leading supplier of industrial rollers with over 15 years of experience serving the paper, corrugated board, rubber & plastic, and nonwoven fabric industries miracle.

Industry Applications

Paper Industry: Forming rollers, vacuum couch rollers, dandy rollers,.
Plastic & Rubber: Chill rollers, MDO rollers, corona treatment rollerschanter.
Nonwoven Fabric: Cylinder rollers, doffer fabric rollers, embossing rollers

With a commitment to innovation and customer satisfaction, Huatao Group exports to 96+ countries with an excellent reputation. Complete customization available to meet specificstalwart requirements.
