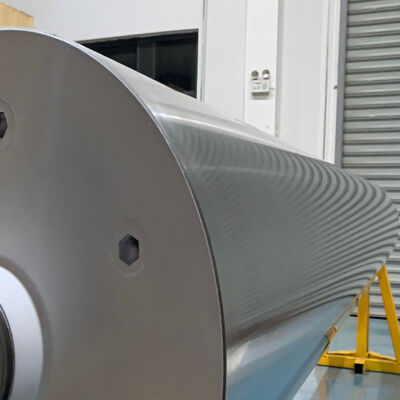

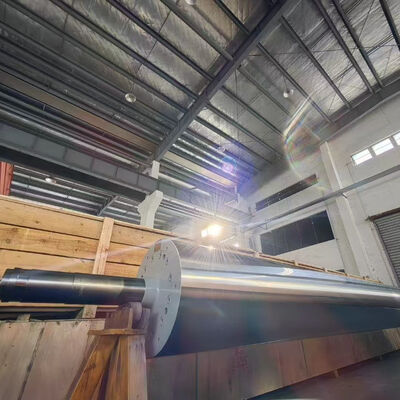

Flame Treater Roller with Q355B Inner Tube 0.1mm Runout and 0.1mm Cylindricality for Bi-Oriented Stretching Film

Large Image : Flame Treater Roller with Q355B Inner Tube 0.1mm Runout and 0.1mm Cylindricality for Bi-Oriented Stretching Film

Product Details:

Place of Origin:	CHINA
Brand Name:	HUATAO
Certification:	ISO CE
Model Number:	HT-FL01

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	2000USD/pc-5000USD/pc
Packaging Details:	WOODEN CASE
Delivery Time:	90 DAYS
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	100 Pcs/Month

Contact Now

Detailed Product Description

Product Name:	PRS Flame Treater Roller Bi-oreinted Stretching Film Fast Temperature Reduce	Key Words:	Flame Roller, Flame Treater Roller
Flow System:	Cooling Channel Designed For High Heat Exchange Efficiency, Single-side Water Inlet	Out Tube Material:	Nickel-chromium Alloy Steel
Inner Tube Material:	Q355B	Runout:	0.1mm
Cylindricality:	0.1mm	Dynamic Balance:	G2.5 Level Maximum Linear Speed 450m/min
Highlight:	Flame Treater Roller with Q355B inner tube , Industrial Roller for bi-oriented stretching film , Precision roller with 0.1mm cylindricality

PRS Flame Treater Cooling Roller for Bi-Oriented St stretching Film

Fast Temperature Reduction Flame Roller

Product Description

The PRS Flame Treater Roller is designed for bi-oriented stretching filmitor film production, providing fast temperature reduction and enhanced surface adhesion properties.

Flame Treater Roll

The flame treatment roller is a critical component in the flame treatment machine's biaxially oriented film traction section. It increases film surface adhesion, improving subsequent processing such as printing, coating, and lamination. The roller features a water-cooled design that maintains the "cold side" of the film during flame treatment.

.com pd-divided-section { display: flex; flex-wrap: wrap; margin: 15px 0; .

Technical Specifications

Flow system Paradigm. < Banner> Anti-collision

Cooling channel designed for high heat exchange efficiency, single-side water inlet
Outer tube material	Nickel-chromium alloy steel
Inner tube material	Q355B
Drive end	Q355B forged flange, high-strength steel 42CrMo forged shaft head
Operation end	Q355B material forged flange/shaft head, interference assembly and welding
Surface coating treatment	Anti-corrosion and high-temperature resistant surface
