Fog Surface Treatment Casting Roller For Casting PP Film Chill Roller
Introduction of Casting Roller
The casting roller adopts strict European manufacturing standards and undergoes multiple welding and heat treatment processes to ensure a strong and reliable overall structure. The specially designed spiral flow channels optimize heat exchange efficiency, with calculated coolant flow rates to minimize surface temperature error and improve product temperature uniformity. Dedicated large-scale dynamic balance calibration equipment ensures smooth high-speed operation.
Characteristics of Casting Roller for Casting Film
| Parameter |
Specification |
| Roller diameter |
Within Φ1600mm |
| Cylindricity and coaxiality |
≤0.005mm |
| Thickness of the coating |
50~80um |
| Roller surface temperature error |
±0.5~1℃ |
| Surface Treatment |
Polished mirror, super fine mirror, matte/matte, anti-stick roller surface |
| Running speed |
800 meters/min |
| Overall deformation |
<0.05 mm at full load |
| Dynamic balancing |
Q=3.2 during operation |
Producing qualified cast films requires precise process control, with temperature being particularly critical (optimal production temperature: 230~250℃). Proper adjustment of the air knife on the Cooling Roller ensures even film cooling and prevents thickness instability or adhesion issues.
Key Process Features
- Material: High-quality 45# steel pipe, alloy steel pipe, precision steel pipe

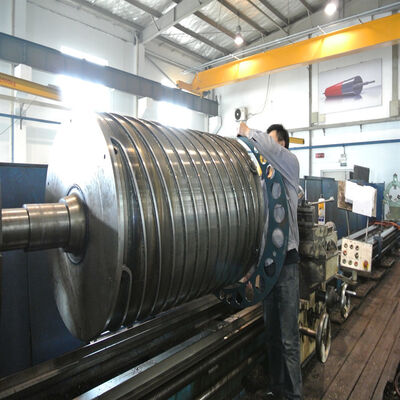

- Structure: Various designs including inner tank spiral flow channel and jacket type
- Processing: Advanced heat treatment, quenching and tempering, precision grinding

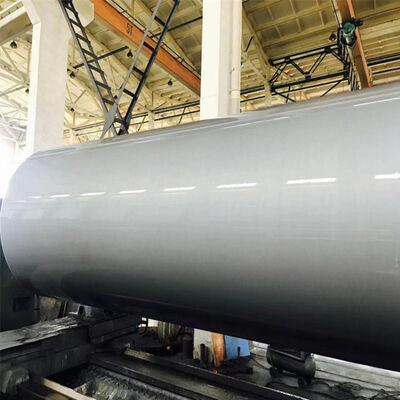

- Surface finishing: Hard chrome plating, super fine grinding, polished or matte finish
Technical Parameters
- Roughness Ra0.005 (smoothness level 14 or above)
- No vibration lines, streaks, or roughening lines
- Straightness, runout, coaxiality ≤0.005mm
- Cooling/heating temperature difference ≤±1℃
- Thermal deformation ≤0.01mm
- Surface hardness: HRC55~58 (quenched), HRC65 or above (hard chromium plated)
Applications
PVC, ABS, PP, PT, PE, PC plastic sheets, films, papers, leather, metal, fabric, and decorative materials.
About Huatao Group
Founded in 2008, Huatao Group is a professional supplier of industrial rollers with over 15 years of experience serving paper, corrugated board, rubber, plastic, and nonwoven fabric industries.
Product Range
Paper Industry: Forming rollers, vacuum couch rollers, press rollers, dryer cylinders, calender rollers
Plastic & Rubber: Chill rollers, MDO rollers, cooling rollers, corona treatment rollers, carbon fiber rollers
Nonwoven Fabric: Cylinder rollers, doffer rollers, embossing rollers, spreader rollers
Our products are exported to over 96 countries, backed by a strong commitment to innovation, reliability, and customer satisfaction. We specialize in custom solutions to meet diverse industrial requirements.
