Thousand-volt High-voltage Corona Treatment Roller with 70-75 Shore A Hardness and 4mm Silicone Thickness for Increased Film Roughness

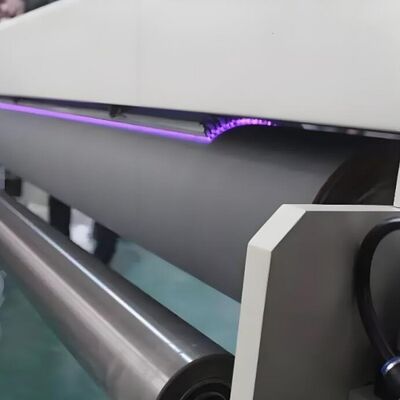

Large Image : Thousand-volt High-voltage Corona Treatment Roller with 70-75 Shore A Hardness and 4mm Silicone Thickness for Increased Film Roughness

Product Details:

Place of Origin:	CHINA
Brand Name:	HUATAO
Certification:	ISO
Model Number:	CORONA TREATMENT ROLLER

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	2000USD/pc-5000USD/pc
Packaging Details:	Wooden Box
Delivery Time:	5-8 Weeks
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	100 PCS/Month

Contact Now

Detailed Product Description

Product Name:	Thousand-volt High-voltage Corona Treatment Roller Increase Film Roughness	Key Words:	Corona Treatment Roller, Corona Roller, Corona Treater Roller
Flow-System:	Flow Channels Between Inner And Outer Tube Separated With Welded Leading Spirals	Disc/Shaft:	Shrinked And Welded Shafts And Side Discs From Q345B
Shell:	Double-shell Construction	Hardness:	70-75 Shore A
Rubber Type:	Silicone	Silicone Thickness:	4mm
Highlight:	high-voltage corona treatment roller , 4mm silicone thickness roller , 70-75 Shore A hardness roller

Thousand Volt High Voltage Corona Treatment Roller Increase Film Roughness 70-75 Shore A

Corona Treatment Roller Production

The corona treatment roller is specialized equipment for surface treatment applications. Composed of corona electrode, roller, bearing, and transmission system components, it generates high-voltage corona discharge to chemically modify surfaces for improved treatment, coating adhesion, and sterilization. Widely used in printing, packaging, plastics, textiles, medical, and food industries.

Corona Treatment Roller Maintenance Recommendations

Clean roller surface regularly using detergent and soft cloth to remove dirt and residue
Inspect bearings periodically for looseness or wear
Apply grease to bearings at regular intervals to ensure proper operation

Corona Treatment Roller Technical Specifications

Shell construction	One way Exit and Enter, Double-shell construction from Q345B
Shrinked and welded shafts Material	Q345B
Flow-system	Channels between inner and outer tube separated with welded leading Spirals
Surface	Silicone rubber coated, hardness approx. SHA70
Finished rubber layer thickness	4MM
Ra	<1.6μm
Disks and shafts	2-layer painting RAL
Out of roundness	<=0.1mm
Cylindricity	<=0.1mm
Dynamic balancing	G2.5

About Huatao Group

Founded in 2008, Huatao Group is a leading manufacturer of industrial rollers with over 15 years of expertise serving paper, corrugated board, rubber & plastic, and nonwoven fabric industries. Our products are exported to 96+ countries with excellent reputation.

Our Product Range

Paper Industry: Forming rollers, vacuum couch rollers, dandy rollers, press rollers, dryer cylinders, calender rollers
Plastic & Rubber: Chill rollers, MDO rollers, corona treatment rollers, carbon fiber rollers, coating drums
Nonwoven Fabric: Cylinder rollers, doffer rollers, embossing rollers, cooling rollers

Committed to innovation and customer satisfaction, we customize solutions to meet specific requirements by leveraging our network of quality manufacturers. Our mission is to provide reliable products with comprehensive support throughout the product lifecycle.
