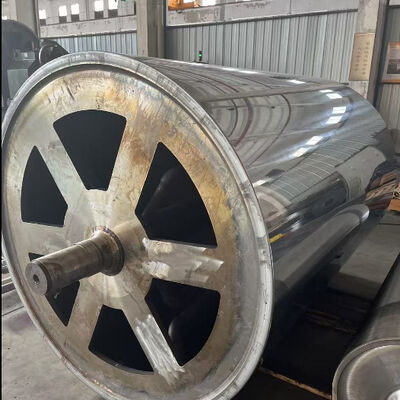

Film Vacuum Metalizer Cooling Roller with Q345 Material Dynamic Balance G2.5 and Vacuum Test 4x10^-4Mpa

Large Image : Film Vacuum Metalizer Cooling Roller with Q345 Material Dynamic Balance G2.5 and Vacuum Test 4x10^-4Mpa

Product Details:

Place of Origin:	CHINA
Brand Name:	HUATAO
Certification:	ISO
Model Number:	COOLING ROLLER

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	2000USD/pc-5000USD/pc
Packaging Details:	Wooden Box
Delivery Time:	12 weeks
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	100 PCS/Year

Contact Now

Detailed Product Description

Product Name:	Film Vacuum Metalizer Cooling Drum Long Life Span Chrome Coating	Key Words:	Cooling Drum，chill Roller
Out-of-warranty Service:	Video Technical Support, Online Support, Spare Parts	Warranty Period:	1 Year
HS Code:	84779000	Flow-System:	Channels Between Inner And Outer Tube Separated With Welded Leading Spirals
Surface:	Chrome Coating	Material:	Q345
Highlight:	Film Vacuum Metalizer Cooling Roller , Q345 Material Industrial Roller , Dynamic Balance G2.5 Cooling Roller

Film Vacuum Metalizer Drum Cooling Roller Long Life Span Chrome Coating

Product Description

The Film Vacuum Metalizer Cooling Drum with Chrome Coating is a critical component in film metallization units, designed for long-lasting performance in demanding industrial environments.

Introduction of Vacuum Cooling Drum

The cooling drum is positioned within the film metallization unit's vacuum chamber. The system operates by creating different vacuum levels (10^-5 mbar in the lower section and 10^-3 mbar in the upper section) to facilitate aluminum vapor deposition. The drum maintains a temperature of -25°C through ethylene glycol circulation, preventing film damage from the 1350-1400°C evaporator temperatures.

Vacuum Cooling Drum Production Specifications

Feature	Specification
Construction Type	Double-shell
Flow-System	Channels between inner and outer tube separated with welded leading spirals
Disc/Shaft Construction	Shrinked and welded shafts and side discs from Q345B
Surface	Chrome coating
Cylinder Form	<=0.1mm
Out of Roundness	<=0.1mm
Dynamic Balance	G2.5
Vacuum Test	4x10^-4Mpa

Applications

Primarily used in Film Metallization processes, compatible with BOBST and Materials and Appliance Vacuum Metallizer systems.

About Huatao Group

Founded in 2008, Huatao Group is a leading supplier of industrial rollers with over 15 years of experience serving various industries worldwide. Our products are exported to more than 96 countries with excellent reputation.

Industry Specializations

Paper Industry: Forming rollers, vacuum couch rollers, dandy rollers, press rollers, dryer cylinders
Plastic & Rubber: Chill rollers, MDO rollers, cooling rollers, corona treatment rollers
Nonwoven Fabric: Cylinder rollers, doffer rollers, carbon fiber guide rollers

We are committed to innovation, reliability, and customer satisfaction, offering customized solutions to meet diverse industrial requirements. Our philosophy ensures customers can purchase and use Huatao products with complete confidence.
