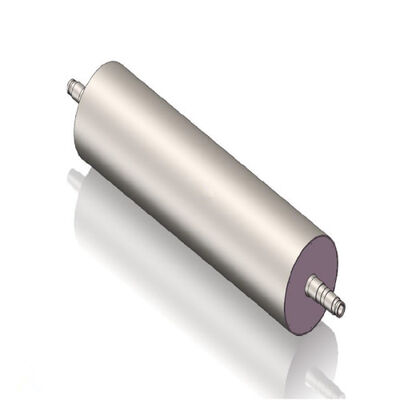

Double-channel Large Diameter Casting Cooling Roller with HRC65 Hardness and Low Energy Consumption

Large Image : Double-channel Large Diameter Casting Cooling Roller with HRC65 Hardness and Low Energy Consumption

Product Details:

Place of Origin:	CHINA
Brand Name:	HUATAO
Certification:	ISO
Model Number:	Casting Cooling Roller

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	2000USD/pc-5000USD/pc
Packaging Details:	Wooden Box
Delivery Time:	5-8 Weeks
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	100 PCS/Month

Contact Now

Detailed Product Description

Product Name:	Double-channel Large Diameter Casting Cooling Roller Low Energy Consumption	Key Words:	Casting Cooling Roller, Cooling Roller, Casting Roller
Hard Plating Treatment Thickness:	0.1mm	Hard Plating Treatment Hardness:	HRC65
Matte Roller Surface Roughness:	Ra≈0.4	Concentricity:	≤0.03~0.05
Working Pressure:	≥0.4MPa	Warranty:	1 Year
Highlight:	Double-channel industrial roller with HRC65 hardness , Large diameter casting cooling roller , Low energy consumption industrial roller

Double Channel Large Diameter Casting Cooling Roller HRC65 Low Energy Consumption

Product Overview

The double-channel large-diameter cast cooling roller features an innovative design with reduced flow resistance and improved cooling efficiency. Its optimized structure ensures uniform water distribution, enhanced temperature control, and significant energy savings.

Key Features

Double-channel spiral guide plate design for optimal water flow
Precision-engineered roller surface with HRC65 hardness
Reduced internal flow resistance for improved efficiency
Uniform cooling water distribution system
Energy-saving operation with lower consumption

Technical Specifications

Parameter	Specification
Hard plating thickness	0.1mm
Surface hardness	HRC65
Surface roughness	Ra≈0.4
Concentricity	≤0.03~0.05
Cylindricity	≤0.03~0.05
Surface runout	≤0.03~0.05
Dynamic balancing	G6.3 level (≤500g imbalance)
Working pressure	≥0.4MPa

Design Advantages

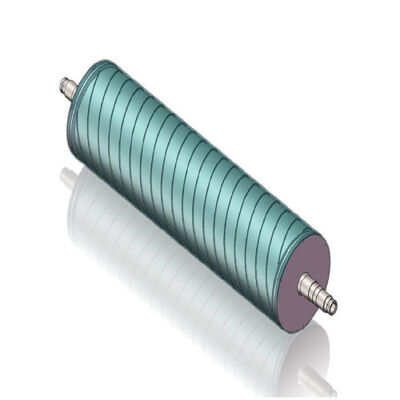

The roller features a sandwich multi-channel structure with right-handed channels. The active end serves as the water inlet, with all components undergoing rigorous 1MPa water pressure testing for 30 minutes to ensure leak-proof performance. The precision-engineered spiral guide plates create optimal water flow paths for maximum cooling efficiency.

About Huatao Group

Founded in 2008, Huatao Group is a leading manufacturer of industrial rollers with over 15 years of experience. We specialize in high-quality rollers for:

Paper Industry: Forming rollers, vacuum couch rollers, dryer cylinders
Plastic & Rubber: Chill rollers, cooling rollers, corona treatment rollers
Nonwoven Fabric: Cylinder rollers, embossing rollers, spreader rollers

Our products are exported to 96+ countries, backed by our commitment to innovation and customer satisfaction. We offer customized solutions to meet specific industrial requirements, ensuring superior performance and reliability.
