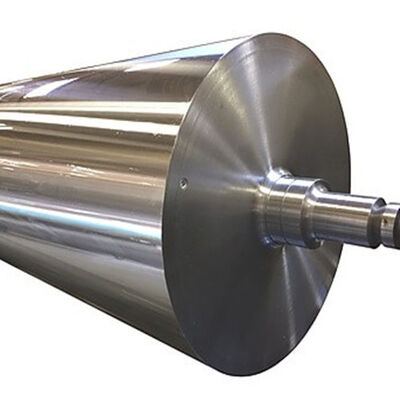

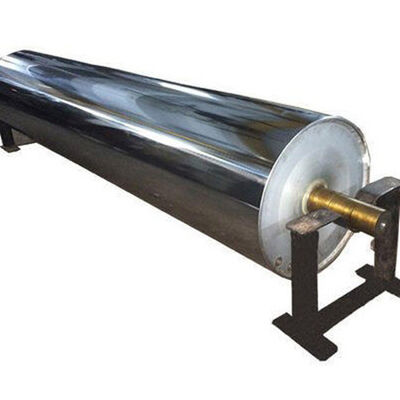

Hard Chromium Plated Cooling Roller for Plastic Sheet Extrusion with Temperature Difference ≤0.5 Degrees and Hardness HRC62

Large Image : Hard Chromium Plated Cooling Roller for Plastic Sheet Extrusion with Temperature Difference ≤0.5 Degrees and Hardness HRC62

Product Details:

Place of Origin:	CHINA
Brand Name:	HUATAO
Certification:	ISO
Model Number:	MIRROR POLISH COOLING ROLLER

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	2000USD/pc-5000USD/pc
Packaging Details:	Wooden Box
Delivery Time:	5-8 Weeks
Supply Ability:	100 PCS/Month

Contact Now

Detailed Product Description

Product Name:	Hard Chromium Plated Cooling Rolls For Plastic Sheet Extrusion Processes	Key Words:	Hard Chromium Plated Cooling Roll, Cooling Roller, Cooling Rolls For Plastic Sheet Extrusion Processes
Temperature Difference:	≤0.5 Degress	Hardness After Chrome Plating And Polishing:	HRC62
Surface Roughness:	Ra0.01	Warranty:	1 Year
Highlight:	hard chromium plated cooling roller , plastic sheet extrusion roller , high hardness HRC62 industrial roller

Hard Chromium Plated Cooling Rolls For Plastic Sheet Extrusion Processes

Plastic sheet production requires extensive cooling. As extruded sheets exit the heated chamber and die, the plastic retains most of its heat due to poor thermal conductivity. Double shell heat transfer rolls efficiently draw heat away from the hot plastic sheet. By guiding the sheet in an "S" pattern through three to five chill rolls (horizontal or vertical orientation), the temperature is reduced to optimal levels. The quality of these chill rolls directly impacts sheet thickness, surface texture, and gloss finish.

Custom Plastic Cooling Roll Finishes

Plastic extrusion cooling rolls must provide efficient heat transfer while maintaining structural integrity. They are fabricated with hardened base metal to resist "worm tracking" and other deformation risks during operation.

Roll Technology supplies heat transfer rolls in various sizes with fully customizable surface finishes to meet specific requirements. Industry-standard options include flawless optical mirror finishes (0~1 Ra) and textured surfaces (matte and satin) with varying roughness levels.

Plastic Cooling Roll Solutions

Our engineering solutions address critical factors including deflection, fluid flow, thermal expansion/contraction, final geometry, and other design parameters. We collaborate with your engineering teams to provide:

Comprehensive range of roll diameters and face lengths
Mono-flow or dual-flow heat transfer designs
Precision finishing to exact specifications
Bearing selection and installation for tight tolerance requirements
Convex, concave, or ultra-flat finishing options

Available surface finishes: (View all finishes)

Flawless pit-free optical mirror
Fine, medium or coarse dull, gray matte surfaces
Fine, medium or coarse pre-blasted satin surfaces
Commercial polished surfaces (4-16 Ra)

Global manufacturers rely on Roll Technology's expertise to solve complex web processing challenges.

Roll body material	45# seamless pipe or alloy steel
Temperature difference	≤0.5 degrees
Hardness after chrome plating and polishing	HRC62
Surface roughness	Ra0.01

About Huatao Group

Founded in 2008, Huatao Group is a leading manufacturer of industrial rollers with 15+ years of experience serving paper, corrugated board, rubber & plastic, and nonwoven fabric industries. Our products are exported to 96+ countries with excellent reputation.

Product Applications:

Paper Industry: Forming rollers, vacuum couch rollers, press rollers, dryer cylinders, calender rollers
Plastic & Rubber: Chill rollers, MDO rollers, cooling rollers, corona treatment rollers, embossing rollers
Nonwoven Fabric: Cylinder rollers, doffer rollers, guide rollers, embossing rollers

We specialize in matching customer requirements with optimal manufacturing solutions, ensuring superior quality and reliable performance. Our commitment to innovation and customer satisfaction makes Huatao Group a trusted global partner.
