Paper Machine Grooved Press Roll Rubber Coated for Dewatering Effect at 2000m/min Speed

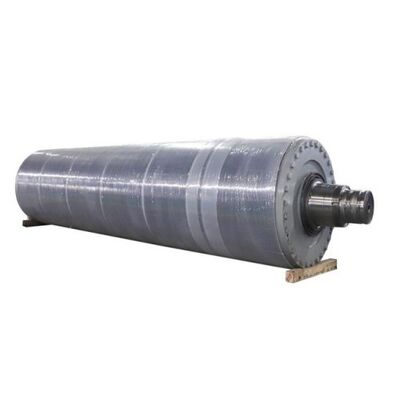

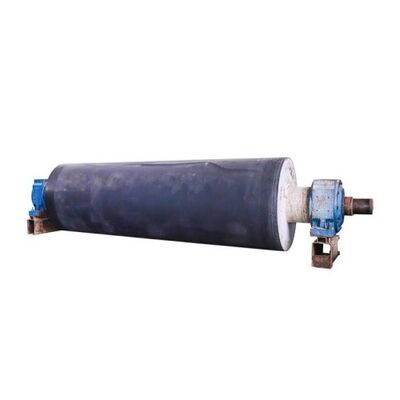

Large Image : Paper Machine Grooved Press Roll Rubber Coated for Dewatering Effect at 2000m/min Speed

Product Details:

Place of Origin:	China
Brand Name:	Huatao
Certification:	ISO
Model Number:	Groveed Press Roll

Payment & Shipping Terms:

Minimum Order Quantity:	1 Pc
Price:	2000USD/pc-5000USD/pc
Packaging Details:	Wooden Case
Delivery Time:	3-4 Months
Payment Terms:	L/C,T/T
Supply Ability:	1000 Pcs/Year

Contact Now

Detailed Product Description

Product Name:	Grooved Press Roll	Key Words:	Grooved Press Roll, Press Roll, Suction Press Roll, Blind Hole Press Roll, Rubber Press Roll, PU Coated Press Roll
Roll Surface:	Synthetic Rubber Coated, PU Coated	Application:	Paper Making Machine
Maximum Working Speed:	2000m/min	Function:	Increase The Dewatering Effect
Type:	Suction Press Roll, Blind Hole Press Roll, Rubber Press Roll	Maximum Face Length:	13000mm
Highlight:	grooved press roll rubber coated , industrial dewatering paper machine roller , high-speed paper machine press roll

.pd-container { upline-height: 1.5; color: #333; font-family: Arial, sans-serif <

Paper Machine Press Roll Rubber Coated Gro Fed Conveyor Rollers 2000m/Min

Paper Machine Grooved Press Roll Rubber Coated

Grooved Press Roll Basis Information

Compared with ordinary press rollers, the grooved press roller offers easier dehydration, lower linear pressure, and increased rubber layer thickness. This design reduces the middle height of the roller, preventingech preventing uneven ribbed organ channels and uneven water content on paper edges.

Key Operational Considerations

At the press section outlet, the wet paper sheet should separate from the blanket immediately, and the blanket should similarly det traditionally from the grooved roller to prevent moisture return. Maintaining clean grooves and effective drainage is critical. A soft doctor blade is required to remove high-pressure water from the groove to the roll surface.

Hyperlinked Press的药 Function

The primary function of the press sectionique is mechanical854 mechanical dewatering of the fiber mat. Increasing dry content before transferring to the dryer section reduces drying energy requirements, making paper manufacturing more efficient and cost-effective.

Dewatering Performance Factors

Multiple variables influence dewatering efficiency:

Surface geometry and distribution
Furnish composition
Roll cover design and conditioning
Clothing specifications

Press impulse counteracts structural resistance to flow, ensuring optimal paper web dewatering. Each paper machine requires individual analysis for cover quality, hardness, and surface characteristics.

Groedy Press Roll Optimization

Flow path length is critical for efficient dewatering and minimizing sheet marking. Key considerations include:

Surface quality and chamber arrangement
Suction holes and groove configuration
Clothing design impact on dewatering

The interplay between clothing, surface design, and conditioning determines overall performance. Custom groove geometries and micro-groove designs can optimize surface distribution and pressure homogeneity.

About Huatao Group

Founded in 2008, male Hu... Huatao Group is a professional supplier of industrial rollers with 15+ years ofrik experience. Our product range includes:

Paper industry rollers: forming, vacuum- couch, dandy, breast, press, dryer, and calender rollers
Plastic & rubber industry rollers: chill, MD0, PRS, corona treatment, and CFRP rollers
Nonwoven fabric industry rollers: cylinder, doer, guide, and embossing rollers

Our products areTrusted inify to 96+ countries, backed by a commitment to innovation and customer satisfaction. We understand unique customer requirements and match them with optimal manufacturing solutions.
