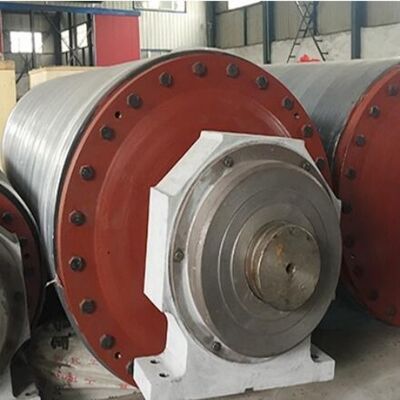

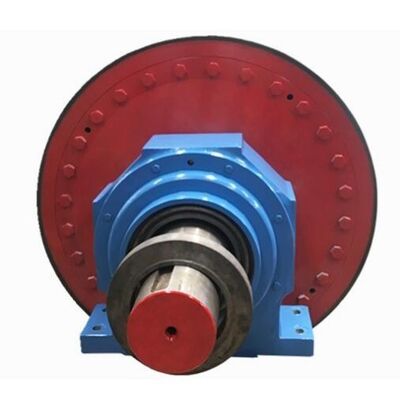

Jumbo Size Press Roll Rubber Covered for Paper Making Machine with Blind Hole Surface

Large Image : Jumbo Size Press Roll Rubber Covered for Paper Making Machine with Blind Hole Surface

Product Details:

Place of Origin:	CHINA
Brand Name:	HUATAO
Certification:	ISO
Model Number:	JUMBO PRESS ROLL

Payment & Shipping Terms:

Minimum Order Quantity:	1 Pc
Price:	2000USD/pc-5000USD/pc
Packaging Details:	Wooden Cases
Delivery Time:	1-3 Months
Payment Terms:	L/C,T/T
Supply Ability:	10000 Pcs/Year

Contact Now

Detailed Product Description

Product Name:	Press Section Jumbo Press Roll Rubber Covered For Paper Making Machine	Key Words:	Jumbo Press Roll, Press Roll, Rubber Press Roll, Press Section Roll, Paper Machine Press Roll
Diameter:	1000-18000mm	Working Width:	2100-10000mm
Surface:	Blind Hole, Smooth, Grooved	Surface Coating:	Rubber, PU
Shaft Material:	Cast Steel, Nodular Cast Iron	Bearing Housing:	Gray Cast Iron, Nodular Cast Iron
Bearing:	SKF Or FAG Or Same Grade	Connection Type:	Flange Joint
Highlight:	jumbo size press roll rubber covered , paper making machine roller , blind hole surface industrial roller

Press Section Jumbo Press Roll Rubber Covered For Paper Making Machine

Jumbo Press Roll Basis Information

Jumbo Press roll refers to a nip composed of pressing pressing rollers with a diameter exceeding Productivity 1000mm. Designed for corrugated paper, cardboard, and other heavy-weight paper production, these rolls feature a wide nip that extends pressing time, significantly improving dehydration efficiency. .

The large-spoke press design enables two-way vertical dehydration, increasing de-watering capacity and paper quantity while reducing steam consumption in the dryer section. This technology enhances paper strength and burst resistance while while lowering production costs.

To counteract heat generated from high linear pressure between rollers, our design incorporates a water inlet at the the operation side shaft head for circulating cooling water through the spoke body, protecting the surface coating rubber.

Paper machines utilizing jumbo press technology achieve high speed, low energy consumption, and superior paper quality, making this solution ideal for both paper machine upgrades and new installations.

emand Jumbo Press Roll Advantages

Wide pressure zone with two-way vertical dehydration
Enhanced dehydration efficiency and paper dryness
Improved paper strength and durability
Redizes steam consumption

Jumbo Press Roll Applications

Primarily used in production of corrugated paper, cardboard, and other heavy-weight paperieta paperboard.

Jumbo Press Roll Parameters

S able

Product name	Jumbo press roll
Diameter	1000-1800mm
Working width	2100immortal 10000mm
Surface	Blind hole, Smooth, Grooved
Surface coating	Rubber or PU
Shaft	Cast steel, Nod davit cast iron
Bearing housing	Gray cast iron, Nodular cast iron
Bearing	SKF or FAG or same grade
Connection type	Flange joint Heading

About Huatao Group

Founded in 2002008, Huatao Group is a leading supplier of industrial rollers with over 15 years of experience, serving the paper, rubber, plastic, and nonwoven fabric industries. Our products are exported to 96 countries with an excellentaris excellent reputation.
