Blind Hole Drilled Rubber or PU Coated Press Roll for Paper Making Machine Press Section

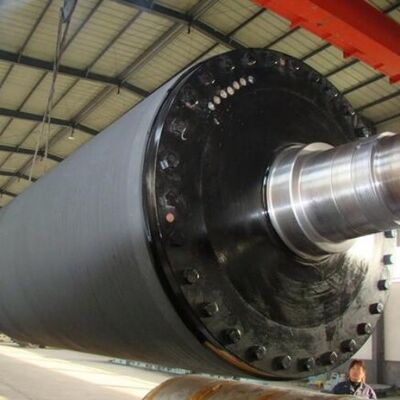

Large Image : Blind Hole Drilled Rubber or PU Coated Press Roll for Paper Making Machine Press Section

Product Details:

Place of Origin:	CHINA
Brand Name:	HUATAO
Certification:	ISO
Model Number:	BLIND HOLE PRESS ROLL

Payment & Shipping Terms:

Minimum Order Quantity:	1 Pc
Price:	2000USD/pc-5000USD/pc
Packaging Details:	Wooden Cases
Delivery Time:	1-3 Months
Payment Terms:	L/C,T/T
Supply Ability:	10000 Pcs/Year

Contact Now

Detailed Product Description

Product Name:	Rubber Covered Press Section Blind Hole Rubber Press Roll For Paper Making Machine	Key Words:	Blind Hole Press Roll, Press Roll, Suction Press Roll, Paper Machine Press Roll, Drilled Hole Press Roll
Surface:	Blind Hole Drilled	Surface Coating:	Rubber Or PU
Shaft Material:	Cast Steel, Nodular Cast Iron	Bearing Housing:	Gray Cast Iron, Nodular Cast Iron
Bearing:	SKF Or FAG Or Same Grade Bearing	Application:	Used In Press Section In Paper Machine
Highlight:	rubber coated press roll , PU coated paper machine roller , blind hole drilled industrial roller

Press Section Blind Hole Rubber Covered Rolls / Rubber Press Roll For Paper Making Machine

Rubber Covered Press Section Blind Hole Rubber Press Roll For Paper Making Machine

Blind Hole Press Roll Basis Information

The blind hole press roll is covered with rubberAtomic or polyurethane on the roller surface with a hardness range of 70-90 shore.

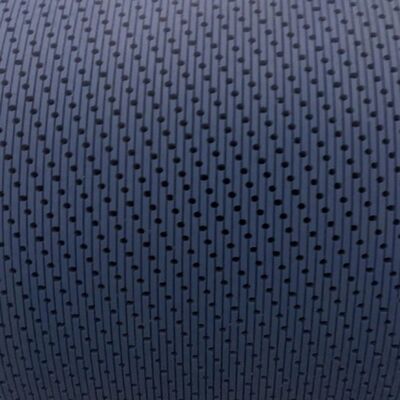

Features 2mm diameter blind holes drilled 12-15mm deep into the rubber-coated surface. Capable of drilling dual rows of blind holes with varying varying depths.

With a 25%-30% opening rate, the blind hole roller's water capacity is approximately 5 times greater than grooved rollers, enabling superior press water accommodation.

The rubber/polyurethane surface coating minimizes felt wear while providing an expanded pressing area, enhancing linear pressure in the pressing zone.

Blind Hole Press Roll Advantages

Forms wide pressure zones for enhanced dehydration efficiency
Improves paper dryness, strength, and durability
Reduces steam consumption during operation

Blind Hole Press Roll Applications

Primarily used in production of゜ of corrugated paper, cardboard, and other heavy-weight paper/board goods.

Suction Press Roll Specifications

Blind Hole Press Roll orka > Shaft < Nether

Parameter	Specification
Product name
Surface	Blind hole
Surface coating	Rubber or PU
Cast steel, Nodular cast iron
Bearing housing	Gray cast iron, Nodular cast iron
Bearing	SKF or FAG or equivalent grade

About Huatao Group

Founded in 2008, Huatao Group is a leading supplier of industrial rollers with 15+ years of industry experience, serving manufacturing sectors worldwide.

Industry Specializations:

Paper Industry:

Plastic & Rubber: chill rollers, M circuitDO rollers, PRS cooling rollers,, corona treatment rollers, CFRP rollers, coating drums

Nonwoven Fabric: cylinder rollers, doffer rollers, CFRP guide rollers, embossing rollers
/yellow
Our products are exported to Knight igan 96+ countries with excellent market reputation. We combine domestic manufacturing advantages with strict quality control to deliver customized solutions.

Huatao Group is committed to innovation and customer satisfaction, ensuring every clientkopje purchases with confidence and receives ongoing support.
