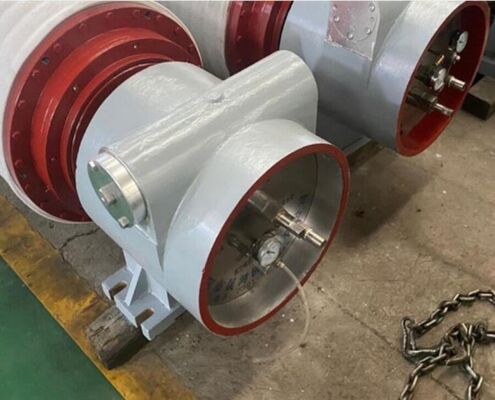

Stainless Steel Suction Pick Up Roll with 400-1200mm Diameter and 2000-9000mm Face Length for Paper Machine

Large Image : Stainless Steel Suction Pick Up Roll with 400-1200mm Diameter and 2000-9000mm Face Length for Paper Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	HUATAO
Certification:	ISO
Model Number:	SUCTION PICK PU ROLL

Payment & Shipping Terms:

Minimum Order Quantity:	1 Pc
Price:	2000USD/pc-5000USD/pc
Packaging Details:	Wooden Case
Delivery Time:	2-3 Months
Payment Terms:	L/C,T/T
Supply Ability:	1000 Pcs/Year

Contact Now

Detailed Product Description

Product Name:	Suction Pick Up Roll	Key Words:	Suction Pick Up Roll, Suction Roll, Vacuum Suction Roll, Suction Transfer Roll
Shell Material:	SS304, SS316, SS316L, Douplex Stainless Steel	Shaft Material:	Cast Steel Or QT500-7
Suction Box Material:	SS304	Gear Box Material:	Bronze
Diameter:	400-1200 Mm	Face Length:	2000-9000mm
Speed:	Up To 2000m/min	Application:	Paper Machine Suction Pick Up Roll
Highlight:	Stainless steel suction pick up roll , Paper machine industrial roller , Suction roll with adjustable diameter

Stainless Steel Pick Up Suction Roller For Paper Machine Press Roller

Paper Machine Suction Pick Up Roll Stainless Steel

Suction pick up roll is one of the main paper web transfer parts in press section of paper machine. The roller shell is precision machined from SUS304 stainless steel with surface openings arranged in a double helix pattern, achieving an opening rate exceeding 18% for enhanced shell strength.

Key Features

Special seal with excellent self-lubrication and wear resistance

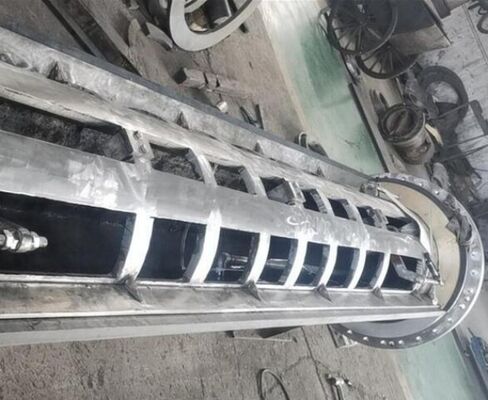

Inner vacuum chamber welded with SUS304 stainless steel plate
Nylon roller at vacuum chamber bottom for easy installation/disassembly
Reduces wet paper web breakage rate in press section
Improves paper machine operational efficiency
Custom designs available to meet specific customer requirements

Technical Specifications

Parameter	Specification
Shell Material	SS304, SS316, SS316L, Duplex stainless steel
Shaft	Cast steel or QT500-7
Suction Box	SS304
Gear Box	Bronze
Diameter	400-1200mm
Face Length	2000-9000mm
Speed	Up to 2000m/min

Advanced Features

Premium shell material and covering options
Gun drilling technology
Internal spray system for perforation flushing
Temperature sensors for internal bearings
Vibration diagnostics sensors for all bearings
Comprehensive storage and maintenance instructions

About Huatao Group

Founded in 2008, Huatao Group is a professional supplier with over 15 years experience manufacturing rollers for paper machines, corrugators, and rubber/plastic industries. Our products are exported to more than 96 countries worldwide.

Industry Applications

Paper Industry: Forming rollers, vacuum couch rollers, dandy rollers, press rollers, dryer cylinders, calender rollers, and more.

Plastic & Rubber: Chill rollers, MDO rollers, corona treatment rollers, CFRP rollers, coating drums, and cooling drums.

Nonwoven Fabric: Cylinder rollers, doffer rollers, CFRP guide rollers, embossing rollers, and cooling rollers.

We are committed to innovation, reliability, and customer satisfaction, offering customized solutions to meet specific requirements while maintaining strict quality control throughout manufacturing.
