Oil Circulation Flow System Soft Nip Calender Roller with 91±2 Shore D Hardness and Ra0.1 um Surface Roughness

TOGETHER HTL LTD is a very good company , I am very willing to cooperate with you, safe, efficient, professional, honest, happy! Thank you for providing me with stable service and products. -----EUROPAT

—— EUROPT INDUSTRIAL

I'm Online Chat Now

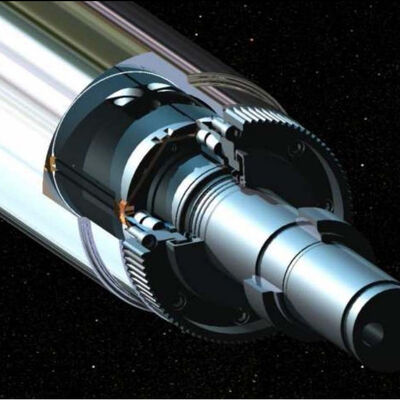

Oil Circulation Flow System Soft Nip Calender Roller with 91±2 Shore D Hardness and Ra0.1 um Surface Roughness

Oil Circulation Flow System Soft Nip Calender Roller with 91±2 Shore D Hardness and Ra0.1 um Surface Roughness
Oil Circulation Flow System Soft Nip Calender Roller with 91±2 Shore D Hardness and Ra0.1 um Surface Roughness Oil Circulation Flow System Soft Nip Calender Roller with 91±2 Shore D Hardness and Ra0.1 um Surface Roughness

Large Image :  Oil Circulation Flow System Soft Nip Calender Roller with 91±2 Shore D Hardness and Ra0.1 um Surface Roughness

Product Details:
Place of Origin: CHINA
Brand Name: HTL
Certification: ISO CE
Model Number: HT-SCR01
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: 2000USD/pc-5000USD/pc
Packaging Details: wooden case
Delivery Time: 60 days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 50 Pcs/month
Detailed Product Description
Product Name: Oil Cirulation Flow System Soft Nip Calender Roller Rubber Coated Key Words: Soft Nip Calender Roller
Cover Hardness: 91±2 Shore D Cover Type: Combination CHINA Andritz Jalon Yellow
Shell Inner: Honing Ra0.4 Roll Surface Roughness: Ra0.1 Um
Roll Surface Runout: ≤0.02mm Shell Material: Forge Steel 45#
Highlight:

Industrial roller oil circulation system

,

Soft nip calender roller 91 Shore D

,

Calender roller Ra0.1 surface roughness

Oil Circulation Flow System Soft Nip Roll Calender Rubber Coated
Product Description

The Rubber Coated Calender Roller with Oil Circulation Flow System forms a nip that replicates the surface of tempered rolls with hard surfaces, enhancing paper properties. Custom rubber coatings are available, including STOWE, Andritz Jalon Yellow, and others, with guaranteed quality.

Technical Specifications
Specification Details
Shell material Forge steel 45#
Roll face length Customized
Cover width Customized
Cover thickness Customized
Cover hardness 91±2 Shore D
Cover type Combination CHINA Andritz Jalon Yellow
Shell inner Honing Ra0.4
Roll surface runout ≤0.02mm
Metal seals Germany
Roll balancing 900 m/min(G1.0)
Drive type Toothed belt drive AT20, Z=63
Bearing Specifications
  • Spherical roller bearing: 2pcs
  • Bearing type: SKF/FAG
  • Joint ball bearing & Bearing house: 1 set (drawing supplied by client)
  • Static test after roll assembly for leakage detection
  • Max test pressure: 10bar
  • Dynamic simulation after roll assembly for deformation detection
Differential Pressure Regulation Head
  • Function: Regulates pressure in the Swimming Roll to control correct deflection
  • Equipment location: Front side of the Swimming Roll
  • Proportion regulation air cell: 1pc
  • Piston rod: 1pc
  • Bearing (INA): 1pc
  • Seal parts: Germany
Assembly Tools
  • Disassembly and installation tool of swimming roll: 1 set
  • Guide Sleeve: 1pc
  • Guide screw: 1 Set

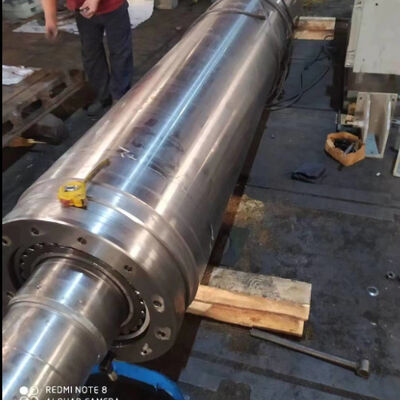

Soft Nip Calender Roller with rubber coating
About HTL Group

Founded in 2008, HTL Group is a professional supplier of various rollers for paper, corrugated board, rubber & plastic, and nonwoven fabric industries with over 15 years of experience.

Our Product Range
  • Paper Industry: Forming roller, vacuum couch roller, dandy roller, Breast Roller, press roller, stone roller, rubber roller, dryer cylinder, size press roller, calender roller, pope reel roller, spreader roller, embossing roller
  • Plastic & Rubber: Chill roller, MDO Preheating Roller, MDO nip roller, MDO stretching Roller, cooling roller, corona treater roller, Corona treatment nip roller, flame roller, carbon fiber contact roller, carbon fiber tension roller, carbon fiber nip roller, winding core, coating drum, cooling drum, spreader roller, anilox roller, calender roller, embossing roller
  • Nonwoven Fabric: Cylinder roller, doffer roller, carbon fiber guide roller, embossing roller, cooling roller, spreader roller

With a commitment to innovation and reliability, our products are exported to over 96 countries. We understand unique customer requirements and match them with superior quality products from our network of domestic factories, ensuring customers buy and use HTL products with confidence.
