Red PU Screen Mat 5.0mm Mesh with High Wear Resistance and Quick Installation for Coarse Aggregate

The 0.075mm aperture High-Efficiency Polyurethane Urethane Screens, designed to work for 6-12 months, are engineered to withstand the rigorous demands of mining operations. Made from high-quality polyurethane, these screens offer exceptional durability and wear resistance. They are ideal for separating and sizing minerals, aggregates, and other materials in mining and quarry applications.

In dry screening, their smooth surface reduces friction, while in wet applications, they resist chemical degradation from acidic or alkaline slurries. Users report 8x longer life compared to woven wire, translating to $10,000-$20,000 in annual production gains from reduced downtime. With a 20-40.6% open area, they balance throughput and accuracy, making them a staple in quartz processing plants.

High-frequency polyurethane screen mesh production

The manufacturing of high-frequency polyurethane screen mesh involves advanced techniques to ensure precision, durability, and optimal performance:

1. Material Preparation
   High-grade polyurethane raw materials, including pre-polymers and curing agents, are meticulously selected based on abrasion resistance and elasticity requirements. Additives such as UV stabilizers and anti-aging agents are blended to enhance longevity in harsh environments.
2. Mold Design & Fabrication
   Precision CNC-machined molds are crafted from stainless steel or aluminum, incorporating the exact aperture geometry (e.g., 0.045mm wedge-shaped slots). Mold surfaces are polished to a mirror finish to ensure smooth demolding and dimensional accuracy.
3. Casting & Curing
   The liquid polyurethane mixture is vacuum-degassed to eliminate air bubbles. It is then poured into preheated molds and subjected to controlled-temperature curing (80-120°C) in hydraulic presses. This step ensures uniform density and structural integrity. Post-curing thermal treatment further enhances tensile strength and chemical resistance.
4. Demolding & Trimming
   Cured screens are carefully demolded, and excess flash is removed using laser trimming or precision cutting tools. Edge sealing is applied to prevent delamination during high-frequency vibrations.
5. Quality Control

   • Aperture Verification: Laser scanners measure aperture sizes (e.g., 0.045mm ±0.005mm) and open area ratios (35%-40%)
   • Durability Testing: Simulated high-frequency vibration cycles (up to 3,600 RPM) assess fatigue resistance
   • Material Certification: Shore hardness (85-95A), tear strength, and chemical compatibility are validated per ISO 9001 standards
6. Surface Treatment (Optional)
   Anti-static coatings or custom-colored finishes are applied for specific industrial requirements, such as explosive environments or visual inspection needs.
7. Packaging & Logistics
   Screens are packed in moisture-proof, shock-absorbent materials and labeled for traceability. Custom sizes and OEM branding are accommodated seamlessly.

Polyurethane screen production process

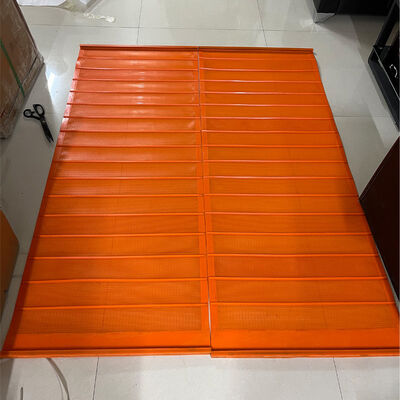

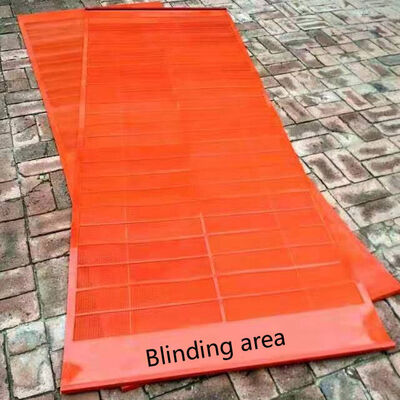

Finished polyurethane screens
