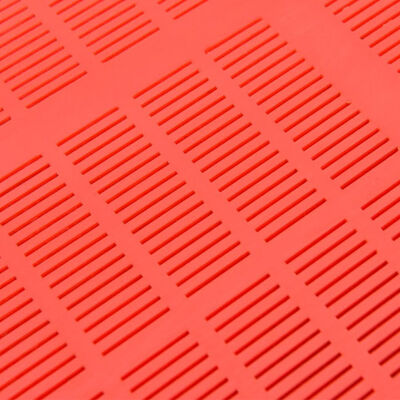

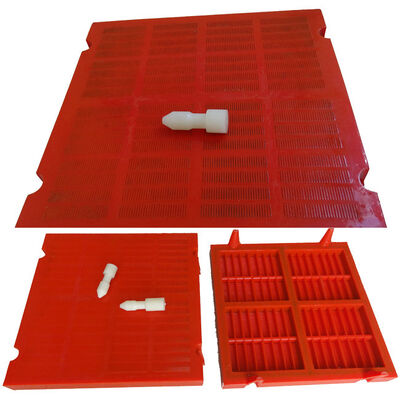

High Wear Resistance Polyurethane Screen Mesh with Anti-Clogging and Customizable Aperture Sizes for Dewatering

Large Image : High Wear Resistance Polyurethane Screen Mesh with Anti-Clogging and Customizable Aperture Sizes for Dewatering

Product Details:

Place of Origin:	China
Brand Name:	CHINA HUATAO
Certification:	ISO9001,CE,SGS etc.
Model Number:	HT

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	USD 20-50 per pcs
Packaging Details:	Wooden Box or Carton Box
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union,Paypal
Supply Ability:	100PCS/MONTH

Contact Now

Detailed Product Description

Thickness:

20mm,30mm,40mm

Highlight:

new polyurethane modular screen

linear pu screen mesh

linear polyurethane modular screen

Linear Dewatering Vibrating Sieve Pu Screen Mesh Plate New Polyurethane Modular Screen

Product Overview

HUATAO Polyurethane Screen Mesh is a cutting-edge screening solution designed for demanding industrial applications, including mining, coal processing, quarrying, and construction. Crafted from premium polyurethane (PU) elastomers, this screen mesh excels in wear resistance, corrosion resistance, and longevity, outperforming traditional metal and rubber screens. With customizable aperture sizes and structural designs, it ensures precise grading and high throughput for dry or wet materials.

Key Features & Benefits

Enhanced Performance & Versatility: Compatible with any vibrating screen through versatile mounting options. Tailored aperture configurations and sizes cater to specialized material grading needs.
Extended Service Life: Built with abrasion-resistant polyurethane and steel-reinforced cores, enduring 3x longer than stainless steel variants and 8-10x longer than conventional steel screens.
Optimized Operational Efficiency: Elastic polyurethane with tapered openings ensures smooth material flow. Dynamic self-cleaning utilizes secondary harmonic vibrations to automatically eject trapped particles.

Specifications

Material	Steel frame and polyurethane surface
Thickness	30mm, 40mm, 50mm
Opening Size	Slot Width 0.1mm - 2.5mm
Screen Width	305mm, 500mm, 515mm (others can be designed)
Screen Length	305mm, 610mm, 650mm, 915mm, 1200mm, 1220mm (others can be designed)
Connection Type	Bolts, Rose nail, Trim strip, Rail support
Applications	Mining: Ideal for grading iron ore, copper, limestone, and granite Coal Processing: Efficient dewatering and desliming in coal preparation plants Aggregates & Quarries: High-precision screening of sand, gravel, and crushed stone Recycling & Waste Management: Separation of construction debris and industrial waste

Product Images

Working Process

Packaging & Logistics

Wooden box package for secure transportation and storage.

Application Examples
