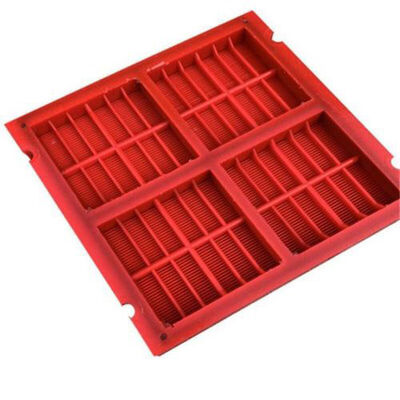

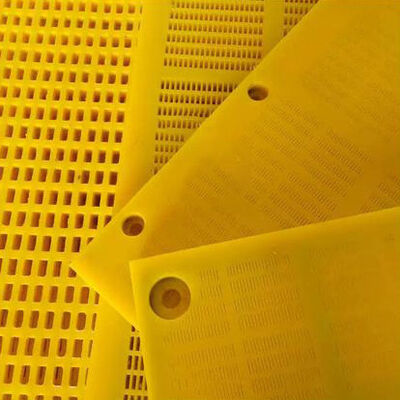

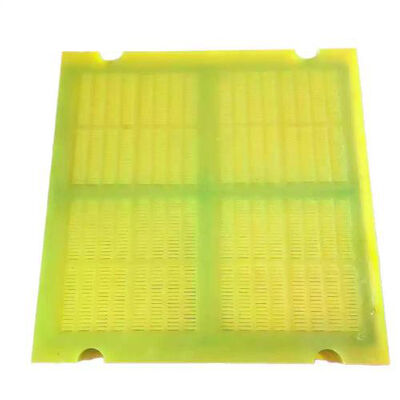

300*800 Square Polyurethane Screen Mesh with High Wear Resistance for Demister Filters

Large Image : 300*800 Square Polyurethane Screen Mesh with High Wear Resistance for Demister Filters

Product Details:

Place of Origin:	China
Brand Name:	CHINA HUATAO
Certification:	ISO9001,CE,SGS etc.
Model Number:	HT

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	USD 20-50 per pcs
Packaging Details:	Wooden Box or Carton Box
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union,Paypal
Supply Ability:	100PCS/MONTH

Contact Now

Detailed Product Description

Thickness:

30mm, 40mm, 50mm

Highlight:

300*800 Polyurethane Screen Mesh

square polyurethane screen mesh

Polyurethane Screen Mesh For Demister Filters

300×800 Square Polyurethane Screen Mesh For Demister Filters

Product Introduction

Polyurethane screen mesh is a high-performance sieving media widely used in mining, quarrying, and aggregate industries due to its excellent wear resistance and longer service life compared to traditional metal screens.

Key Features

Superior resistance to abrasion, ensuring extended operational lifespan
Outlasts wire mesh significantly, reducing replacement frequency
Unaffected by water, acid, and alkaline substances
Reduces operating noise levels, contributing to a better working environment
Tapered apertures (self-cleaning effect) minimize blinding and maintain screening efficiency
Durable and resistant to damage from large materials

Specifications

Material	Steel frame and polyurethane surface
Thickness	30mm, 40mm, 50mm
Opening Size	Slot Width 0.1mm - 2.5mm
Screen Width	305mm, 500mm, 515mm (others can be designed)
Screen Length	305mm, 610mm, 650mm, 915mm, 1200mm, 1220mm (others can be designed)
Connection Type	Bolts, Rose nail, Trim strip, Rail support
Application	Mining: Ideal for grading iron ore, copper, limestone, and granite Coal Processing: Efficient dewatering and desliming in coal preparation plants Aggregates & Quarries: High-precision screening of sand, gravel, and crushed stone Recycling & Waste Management: Separation of construction debris and industrial waste

Pin & Legs Close-up Views

Pin & Legs Detail 1

Pin & Legs Detail 2

Pin & Legs Detail 3

Pin & Legs Detail 4

Working Process

Working Process

Packaging & Logistics

Wooden Box Packaging

Logistics Ready

Application Examples

Industrial Application 1

Industrial Application 2
