WS85 PU Screen Panel 12''×24'' Modular Polyurethane Panel System with High-Elasticity MDI Material for Vibrating Screen

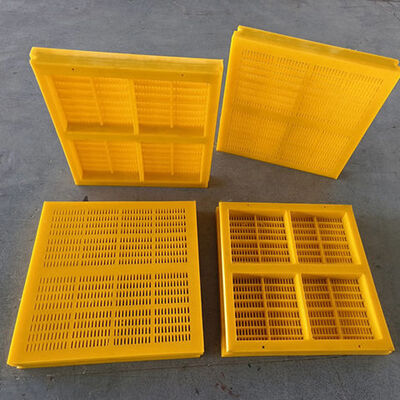

Large Image : WS85 PU Screen Panel 12''×24'' Modular Polyurethane Panel System with High-Elasticity MDI Material for Vibrating Screen

Product Details:

Place of Origin:	China
Brand Name:	CHINA HUATAO
Certification:	ISO9001,CE,SGS etc.
Model Number:	HT

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	USD 20-50 per pcs
Packaging Details:	Wooden Box or Carton Box
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union,Paypal
Supply Ability:	100PCS/MONTH

Contact Now

Detailed Product Description

Thickness:

20mm,30mm,40mm

Highlight:

ws 85 pu screen panel

modular pu screen panel

modular ws85 screen panel

WS 85 PU Screen Panel 12"×24" Modular Polyurethane Panel System For Vibrating Screen

Product Overview

WS85 PU Screen Panel 12" ×24" Modular Polyurethane Panel System for Vibrating Screen

High-Elasticity WS85 PU Dewatering Screen Plate

Model: WS85-MDI Series
MDI Material: Superior flexibility (-40°C to 80°C tolerance) with steel wire reinforcement
Energy Efficiency: 1.32 kg/m³ density cuts vibrating motor load by 30%
Certified Safety: Non-toxic, flame-retardant, and oil-resistant
Ideal For: Harsh environments requiring chemical resistance (e.g., saltwater ore processing)

Factory-Priced PU Screen Mesh for Linear Vibrating Screens

Model: WS85-300×610 Standard
Aperture Options: Square (9mm), round (5-50mm), or slotted (0.1-170mm)
Durability: 8-10× lifespan vs. steel mesh; 3× vs. rubber screens
Value: Includes 6-month warranty against abrasion or tearing
Use Case: Cost-effective replacement for mining/aggregate screening

Key Features & Benefits

Feature	Benefit
Durability	8-10x lifespan vs. steel, anti-abrasion, tear-resistant
Efficiency	Self-cleaning, anti-clogging, 30% energy saving
Customization	Aperture sizes (0.1-170mm), shapes, modular compatibility
Certified	Flame-retardant, non-toxic, ISO-compliant

Technical Specifications

Parameter	Specification
Material	Steel frame and polyurethane surface
Feature	WS85, Wear-resistant, efficient and easy to install
Thickness	30mm, 40mm, 50mm
Opening Size	Slot Width 0.1mm - 2.5mm
Screen Width	305mm, 500mm, 515mm, others can be designed
Screen Length	305mm, 610mm, 650mm, 915mm, 1200mm, 1220mm, others can be designed
Connection Type	WS85

Applications

Mining: Ideal for grading iron ore, copper, limestone, and granite
Coal Processing: Efficient dewatering and desliming in coal preparation plants
Aggregates & Quarries: High-precision screening of sand, gravel, and crushed stone
Recycling & Waste Management: Separation of construction debris and industrial waste

Product Images

Working Process

Packaging & Logistics

Wooden box packaging for secure transportation

Application Examples

HUATAO Polyurethane Product Range

Product Type	Product Name
Urethane Screen	Tufflex Screen
Polyurethane Dewatering Screen Mesh	WS 85 Modular Screen
Polyurethane Screen Panels	Rotex Replacement Screens
Rubber Screen Panel	Vibrating Screen Mesh
Self cleaning Wire Mesh	Shale Shaker Screen
