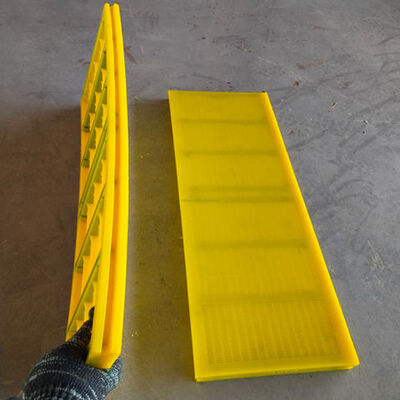

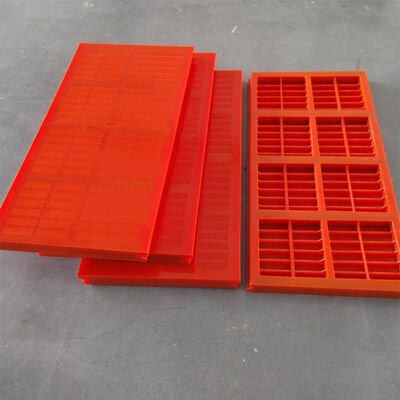

OEM Factory WS85 High Elastic Polyurethane Dewatering Screen Panel with Self-Cleaning Wave Surface and Steel Frame Integration

Large Image : OEM Factory WS85 High Elastic Polyurethane Dewatering Screen Panel with Self-Cleaning Wave Surface and Steel Frame Integration

Product Details:

Place of Origin:	China
Brand Name:	CHINA HUATAO
Certification:	ISO9001,CE,SGS etc.
Model Number:	HT

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	USD 20-50 per pcs
Packaging Details:	Wooden Box or Carton Box
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union,Paypal
Supply Ability:	100PCS/MONTH

Contact Now

Detailed Product Description

Thickness:

20mm,30mm,40mm

Highlight:

oem ws 85 modular screen

oem ws 85 modular screens

elastic ws 85 modular screen

OEM Factory WS 85 Modular Screen High Elastic Polyurethane Dewatering Mesh Panel

Product Overview

OEM Factory WS85 Screen Module: High-Elastic Polyurethane Dewatering Mesh Panel

Anti-Blocking Polyurethane Hump Screen Panel

Model: Hump-Type WS85
Innovation: Self-Cleaning Wave Surface automatically ejects trapped particles via dual-frequency vibrations
Noise Reduction: 15 dB lower than metal screens (OSHA-compliant)
Applications: High-moisture material separation in coal processing or mineral recovery

Heavy-Duty WS85 Tension Screen Mesh

Model: WS85-Tension Series
Engineering: Steel Frame Integration with reinforced edges withstands 5,000+ hours of continuous operation
Tear Resistance: 25 MPa tensile strength for high-impact ores like iron or copper
Benefit: Eliminates mid-shift replacements in 24/7 mining operations

Key Features & Benefits

Feature	Benefit
Durability	8-10x lifespan vs. steel, anti-abrasion, tear-resistant
Efficiency	Self-cleaning, anti-clogging, 30% energy saving
Customization	Aperture sizes (0.1-170mm), shapes, modular compatibility
Certified	Flame-retardant, non-toxic, ISO-compliant

Technical Specifications

Specification	Details
Material	Steel frame and polyurethane surface
Feature	WS85, Wear-resistant, efficient and easy to install
Thickness	30mm, 40mm, 50mm
Opening Size	Slot Width 0.1mm - 2.5mm
Screen Width	305mm, 500mm, 515mm, others can be designed
Screen Length	305mm, 610mm, 650mm, 915mm, 1200mm, 1220mm, others can be designed
Connection Type	WS85
Applications	Mining: Ideal for grading iron ore, copper, limestone, and granite Coal Processing: Efficient dewatering and desliming in coal preparation plants Aggregates & Quarries: High-precision screening of sand, gravel, and crushed stone Recycling & Waste Management: Separation of construction debris and industrial waste
